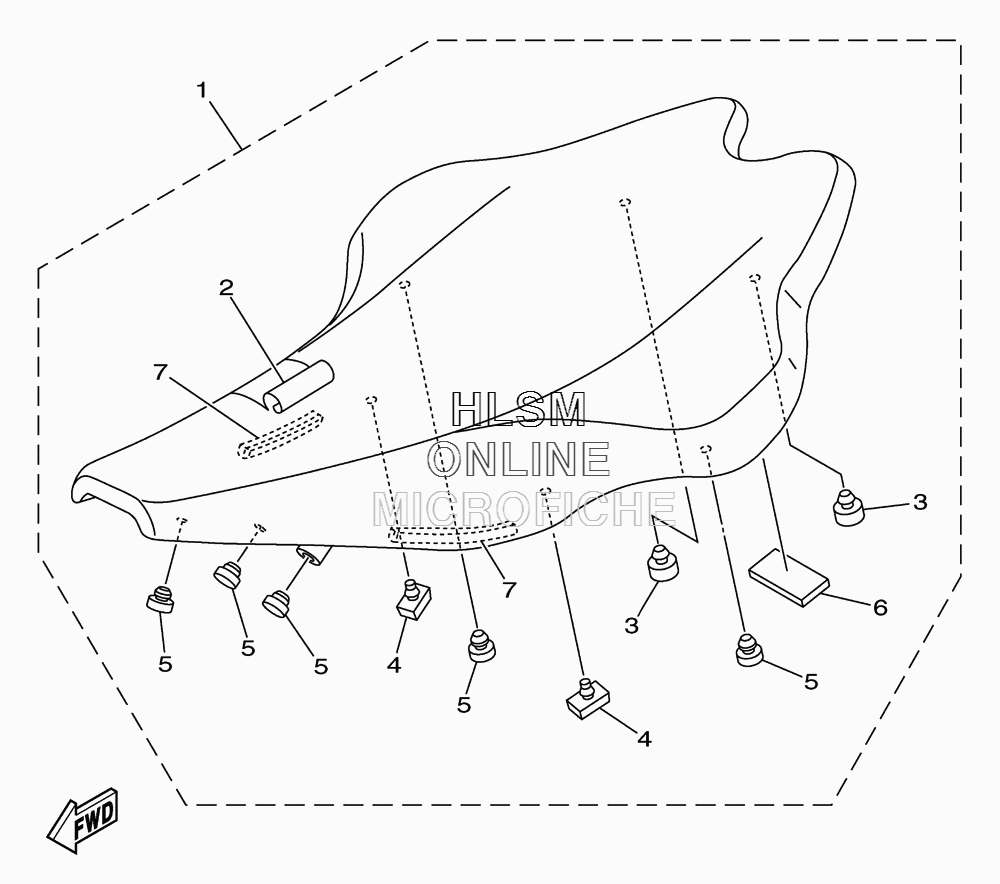

SEAT для Yamaha YFZ450X - 2010 года выпуска
-
№АртикулНазвание
-
118P-24710-00-00 SINGLE SEAT ASSY (FOR DPBSE)SINGLE SEAT ASSY (FOR DPBSE)
-
118P-24710-20-00 SINGLE SEAT ASSY (FOR BWS1)SINGLE SEAT ASSY (FOR BWS1)
-
218P-2470F-00-00 SEAT COVER COMP. (FOR DPBSE)SEAT COVER COMP. (FOR DPBSE)
-
218P-2470F-20-00 SEAT COVER COMP. (FOR BWS1)SEAT COVER COMP. (FOR BWS1)
-
3371-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
4214-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
522W-24741-00-00 PAD, SEATPAD, SEAT
-
618P-24725-00-00 SPACER 1SPACER 1
-
718P-24723-00-00 DAMPER, SEATDAMPER, SEAT
