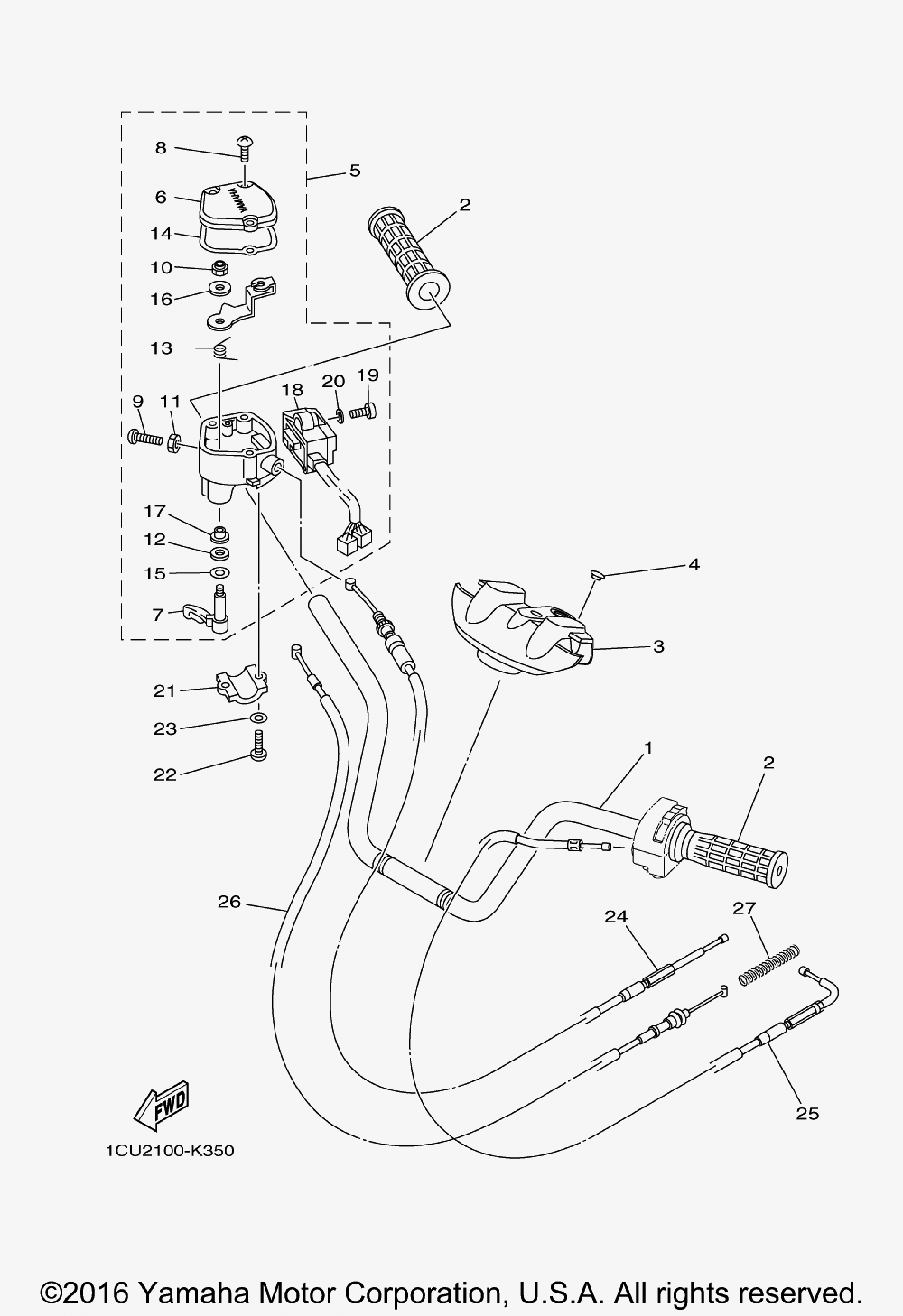

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 450 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
35ND-F6124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
490338-14827-00 PLUGPLUG
-
55KM-26250-21-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
64KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
71NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
890149-04278-00 ...SCREW...SCREW
-
998507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1095602-05100-00 ...NUT, U...NUT, U
-
1195307-05700-00 ...NUT...NUT
-
1293104-09025-00 ...OIL SEAL...OIL SEAL
-
131NV-26304-00-00 ...SPRING...SPRING
-
144KB-2628G-00-00 ...GASKET...GASKET
-
151NV-26129-00-00 ...WASHER...WASHER
-
161NV-26398-00-00 ...WASHER...WASHER
-
171NV-2625K-00-00 ...COLLAR...COLLAR
-
185KM-83976-20-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
1998502-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2092902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
214V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2298502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
245GH-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
255VH-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
261CT-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2790501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
