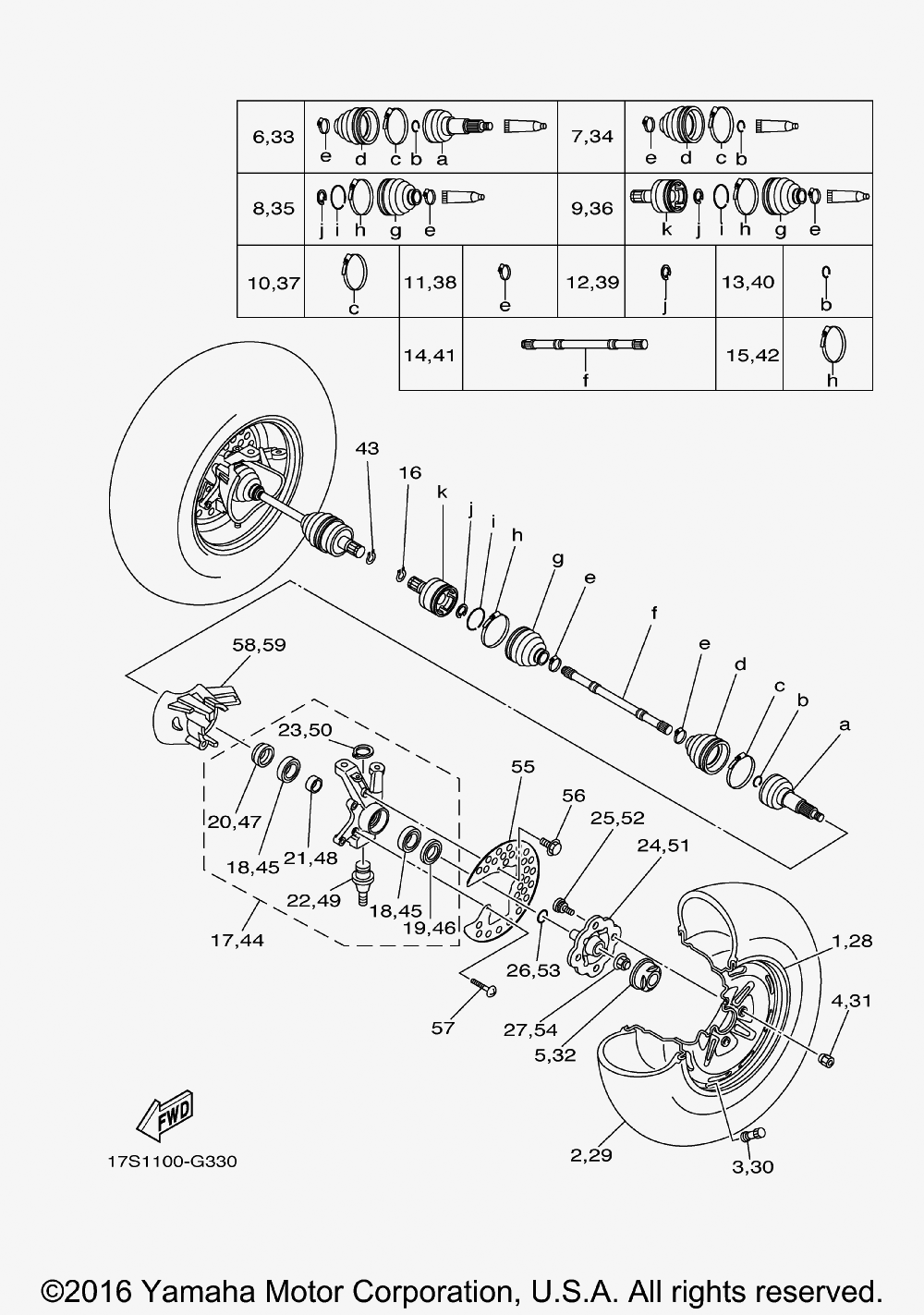

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 450 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
11D9-F5180-10-00 WHEEL COMP.WHEEL COMP.
-
294108-12816-00 TIRE (AT25X8-12 MU13TL) (CHENG SHIN)TIRE (AT25X8-12 MU13TL) (CHENG SHIN)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10022-00 NUTNUT
-
52P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
64S1-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
74S1-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
84S1-2510H-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
94S1-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
103HN-2511G-01-00 CIRCLIPCIRCLIP
-
113HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
122HR-2512J-00-00 SNAP RINGSNAP RING
-
134KB-2512H-00-00 CIRCLIPCIRCLIP
-
144S2-2511E-00-00 SHAFT (RIGHT HAND)SHAFT (RIGHT HAND)
-
154S1-2511G-00-00 BOOT BANDBOOT BAND
-
1693450-22119-00 CIRCLIPCIRCLIP
-
171D9-F3501-02-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1893306-006Y2-00 ...BEARING...BEARING
-
1993106-38046-00 ...OIL SEAL...OIL SEAL
-
2093106-38047-00 ...OIL SEAL...OIL SEAL
-
2190387-30008-00 ...COLLAR...COLLAR
-
2237S-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2399009-32400-00 ...CIRCLIP...CIRCLIP
-
245ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
2590114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
2693210-27666-00 O-RINGO-RING
-
2790179-20016-00 NUTNUT
-
281D9-F5180-10-00 WHEEL COMP.WHEEL COMP.
-
2994108-12816-00 TIRE (AT25X8-12 MU13TL) (CHENG SHIN)TIRE (AT25X8-12 MU13TL) (CHENG SHIN)
-
3093900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
3190179-10022-00 NUTNUT
-
322P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
334S1-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
344S1-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
354S1-2510H-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
364S1-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
373HN-2511G-01-00 CIRCLIPCIRCLIP
-
383HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
392HR-2512J-00-00 SNAP RINGSNAP RING
-
404KB-2512H-00-00 CIRCLIPCIRCLIP
-
414S1-2511E-00-00 SHAFT (LEFT HAND)SHAFT (LEFT HAND)
-
424S1-2511G-00-00 BOOT BANDBOOT BAND
-
4393450-22119-00 CIRCLIPCIRCLIP
-
441D9-F3502-02-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4593306-006Y2-00 ...BEARING...BEARING
-
4693106-38046-00 ...OIL SEAL...OIL SEAL
-
4793106-38047-00 ...OIL SEAL...OIL SEAL
-
4890387-30008-00 ...COLLAR...COLLAR
-
4937S-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
5099009-32400-00 ...CIRCLIP...CIRCLIP
-
515ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
5290114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
5393210-27666-00 O-RINGO-RING
-
5490179-20016-00 NUTNUT
-
551D9-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
5695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
5790160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
5817S-F2327-00-00 MUD GUARD 1 (LEFT HAND)MUD GUARD 1 (LEFT HAND)
-
5917S-F2328-00-00 MUD GUARD 2 (RIGHT HAND)MUD GUARD 2 (RIGHT HAND)
