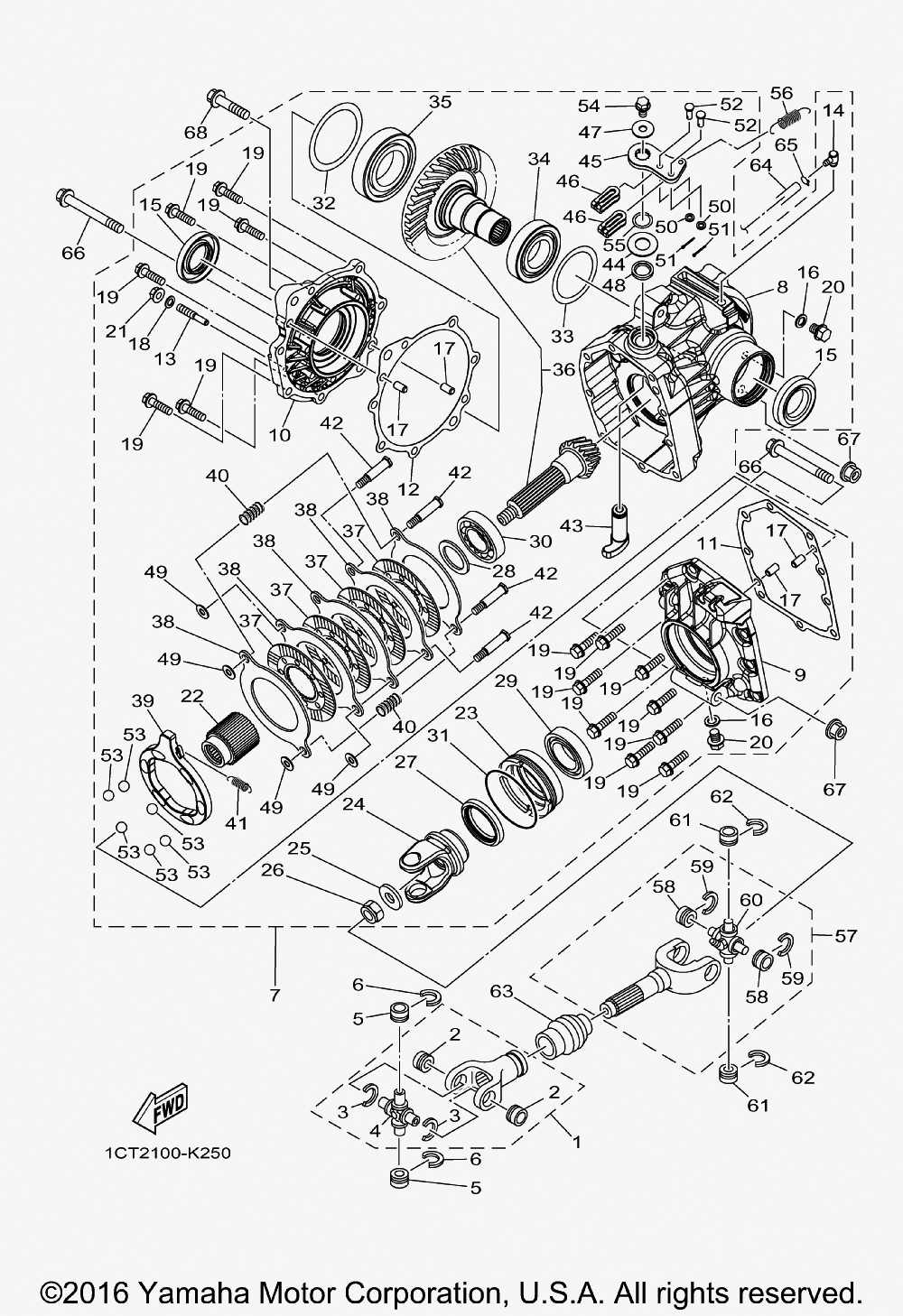

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 450 EPS 4WD (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
11D9-46108-01-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
293399-99948-00 ...BEARING...BEARING
-
393440-20088-00 ...CIRCLIP...CIRCLIP
-
45GT-46187-00-00 ...SPIDER...SPIDER
-
593399-99948-00 BEARINGBEARING
-
693440-20088-00 CIRCLIPCIRCLIP
-
71CT-G6101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
81CT-G6151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
91CT-G2134-00-00 ...COVER...COVER
-
101CT-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
111CT-G631E-00-00 ...GASKET, COVER...GASKET, COVER
-
121CT-G631A-00-00 ......GSKT., CASE......GSKT., CASE
-
131CT-G6156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
141CT-E5371-00-00 ...BREATHER...BREATHER
-
151CT-E511A-00-00 ...OIL SEAL...OIL SEAL
-
161CT-E1195-00-00 ...GASKET...GASKET
-
171CT-E3362-00-00 ...PIN, DOWEL 1...PIN, DOWEL 1
-
181CT-G6819-00-00 ...GASKET...GASKET
-
191CT-E2157-00-00 ...BOLT...BOLT
-
201CT-E2228-00-00 ...BOLT...BOLT
-
211CT-E3275-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
221CT-G6126-00-00 ...COUPLING...COUPLING
-
231CT-G4583-00-00 ...NUT...NUT
-
241CT-G6186-00-00 ...YOKE, JOINT...YOKE, JOINT
-
251CT-E1557-00-00 ...WASHER 1...WASHER 1
-
261CT-E6377-00-00 ...NUT, LOCK...NUT, LOCK
-
271CT-E511B-00-00 ...OIL SEAL...OIL SEAL
-
281CT-E7531-00-00 ...SHIM, PINION...SHIM, PINION
-
291CT-E1428-00-00 ...BEARING 1...BEARING 1
-
301CT-E1429-00-00 ...BEARING 2...BEARING 2
-
311CT-E1614-00-00 ...OIL RING, PISTON...OIL RING, PISTON
-
321CT-G5567-00-00 ...SHIM...SHIM
-
331CT-G5577-00-00 ...SHIM...SHIM
-
341CT-E142A-00-00 ...BEARING...BEARING
-
351CT-E142B-00-00 ...BEARING 4...BEARING 4
-
361CT-G61A0-00-00 ...RING GEAR SET...RING GEAR SET
-
371CT-F5345-00-00 ...INSERT, PLATE...INSERT, PLATE
-
381CT-F539F-00-00 ...PLATE 1...PLATE 1
-
391CT-F5689-00-00 ...PLATE, GUIDE...PLATE, GUIDE
-
401CT-G6277-00-00 ...SPRING, RETURN...SPRING, RETURN
-
411CT-F476L-00-00 ...SPRING...SPRING
-
421CT-G2478-00-00 ...BOLT, LOCK PLATE...BOLT, LOCK PLATE
-
431CT-F5351-00-00 ...CAMSHAFT...CAMSHAFT
-
441CT-E2289-00-00 ...WASHER...WASHER
-
451CT-F5355-00-00 ...LEVER, CAMSHAFT...LEVER, CAMSHAFT
-
461CT-F6374-00-00 ...END, CABLE 3...END, CABLE 3
-
471CT-G1298-00-00 ...WASHER 2...WASHER 2
-
481CT-E4005-00-00 ...RING, SEAL...RING, SEAL
-
491CT-G1297-00-00 ...WASHER, 1...WASHER, 1
-
501CT-E1558-00-00 ...WASHER 2...WASHER 2
-
511CT-E469U-00-00 ...GUIDE 1...GUIDE 1
-
521CT-E319L-00-00 ...PIN, STRAIGHT...PIN, STRAIGHT
-
531CT-E7051-00-00 ...BALL...BALL
-
541CT-E22A1-00-00 ...BOLT 2...BOLT 2
-
551CT-E1486-00-00 ...CLIP...CLIP
-
5690506-14397-00 SPRING, TENSIONSPRING, TENSION
-
571CT-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
5893399-99948-00 ...BEARING...BEARING
-
5993440-20088-00 ...CIRCLIP...CIRCLIP
-
605GT-46187-00-00 ...SPIDER...SPIDER
-
6193399-99948-00 BEARINGBEARING
-
6293440-20088-00 CIRCLIPCIRCLIP
-
635GT-46136-00-00 SEAL 1SEAL 1
-
6490445-078C4-00 HOSE (L900)HOSE (L900)
-
6590467-07029-00 CLIPCLIP
-
6690105-10844-00 BOLT, FLANGEBOLT, FLANGE
-
6795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6895812-10045-00 BOLT, FLANGEBOLT, FLANGE
