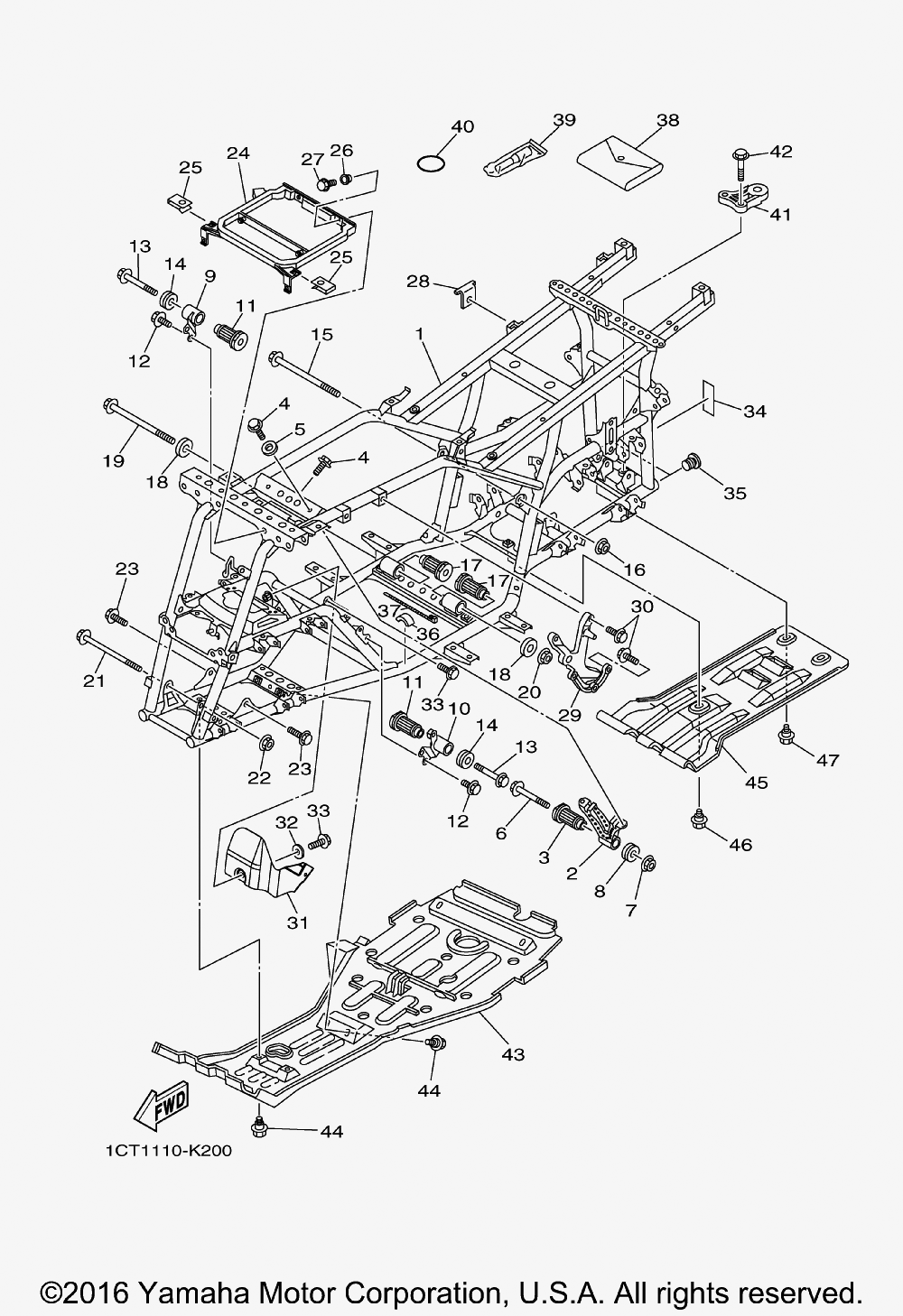

FRAME для Yamaha GRIZZLY 450 EPS 4WD (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
11CT-F1110-00-00 FRAME COMP.FRAME COMP.
-
25ND-F1315-01-00 STAY, ENGINE 2STAY, ENGINE 2
-
35ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
495812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
590201-08055-00 WASHER, PLATEWASHER, PLATE
-
695812-10110-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
85ND-F1486-00-00 DAMPER 2DAMPER 2
-
91CT-F1316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
101CT-F1317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
115ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
1295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1395812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
145ND-F1486-00-00 DAMPER 2DAMPER 2
-
1590105-10284-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
175ND-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
185ND-F1488-00-00 DAMPERDAMPER
-
1990105-10284-00 BOLT, FLANGEBOLT, FLANGE
-
2095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2190105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
2290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390105-10287-00 BOLT, FLANGEBOLT, FLANGE
-
245ND-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
2590183-06053-00 NUT, SPRINGNUT, SPRING
-
2690387-06681-00 COLLARCOLLAR
-
2795812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
285ND-F1446-01-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
295ND-F1585-01-00 ARMARM
-
3095822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
311CT-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
3290201-06078-00 WASHER, PLATEWASHER, PLATE
-
3395812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3437S-F151K-00-00 LABEL 7 (ENGLISH)LABEL 7 (ENGLISH)
-
351CT-F8349-00-00 CAPCAP
-
361CT-F2958-00-00 PAD, RUBBERPAD, RUBBER
-
3790464-40825-00 CLAMPCLAMP
-
385ND-F8100-00-00 TOOL KITTOOL KIT
-
391NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
4093210-64297-00 O-RINGO-RING
-
411D9-F8488-01-00 HOOKHOOK
-
4295822-10040-00 BOLT, FLANGEBOLT, FLANGE
-
435ND-F147A-02-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
4490109-06172-00 BOLTBOLT
-
451CT-F840K-00-00 GUARD COMP.GUARD COMP.
-
4690109-06172-00 BOLTBOLT
-
4790109-06202-00 BOLTBOLT
