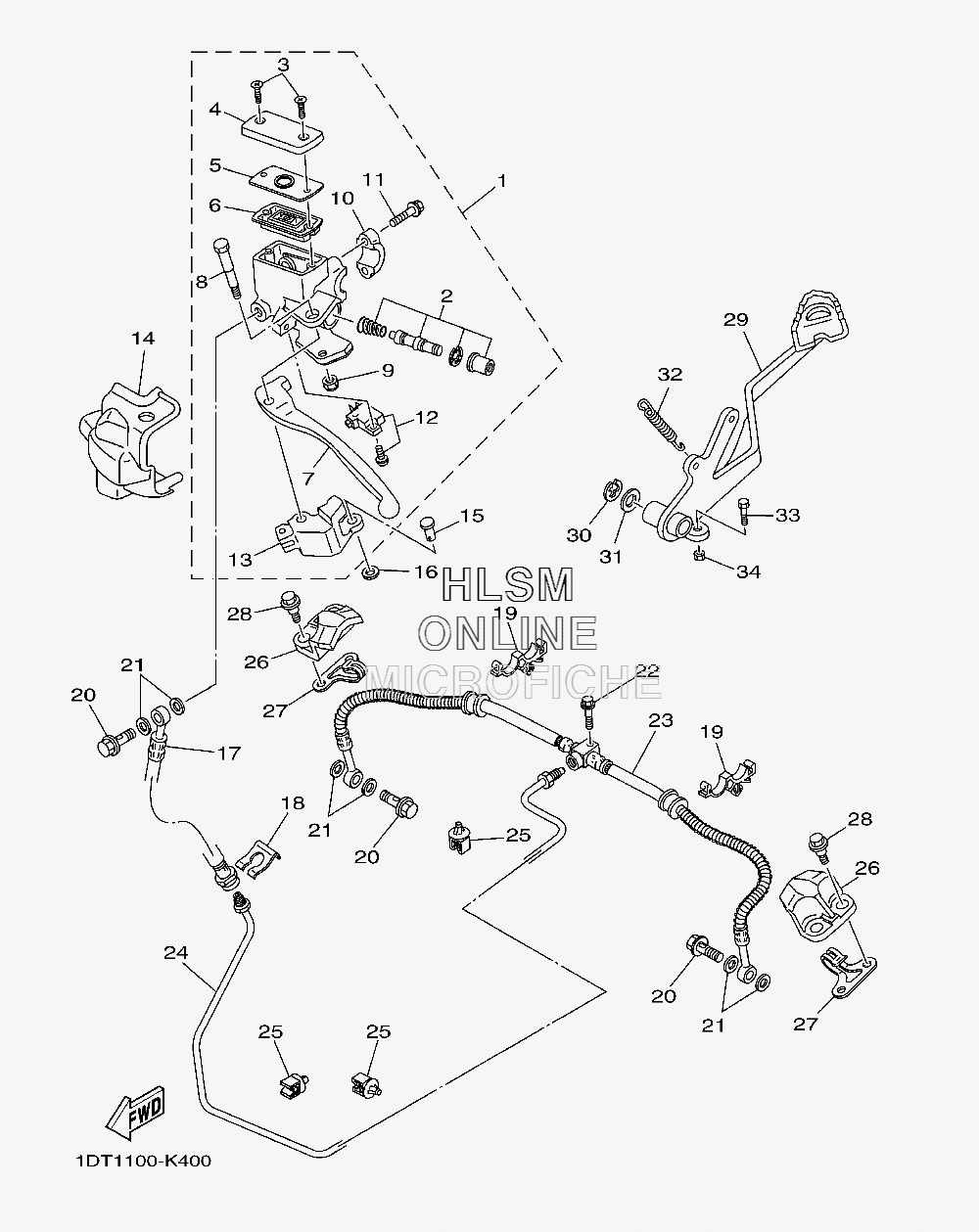

BRAKE - REAR MASTER CYLINDER для Yamaha GRIZZLY 550 EPS 4WD (PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
13B4-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
25LP-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
398706-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
43GM-25852-22-00 CAP, RESERVOIRCAP, RESERVOIR
-
53B4-2585B-00-00 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
64TT-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
73B4-83912-00-00 LEVER 1LEVER 1
-
83B4-2589F-10-00 BOLT, LEVERBOLT, LEVER
-
93B4-26294-00-00 NUT 1NUT 1
-
1056A-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
115EB-26332-00-00 BOLTBOLT
-
123B4-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
133B4-26168-00-00 KNOCKERKNOCKER
-
143B4-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
1590240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1692902-08600-00 WASHER, PLATEWASHER, PLATE
-
173B4-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
182GU-25866-00-00 CIRCLIPCIRCLIP
-
1990464-16006-00 CLAMPCLAMP
-
2090401-10015-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
2295822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
233B4-25874-10-00 HOSE, BRAKEHOSE, BRAKE
-
243B4-25882-10-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
255KM-81677-00-00 CLAMP 1CLAMP 1
-
263B4-25715-00-00 COVER 1COVER 1
-
273B4-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2890109-06172-00 BOLTBOLT
-
293B4-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
3099001-10600-00 CIRCLIPCIRCLIP
-
3190201-14023-00 WASHER, PLATEWASHER, PLATE
-
3290506-20014-00 SPRING, TENSIONSPRING, TENSION
-
3397022-06014-00 BOLTBOLT
-
3495312-06600-00 NUTNUT
