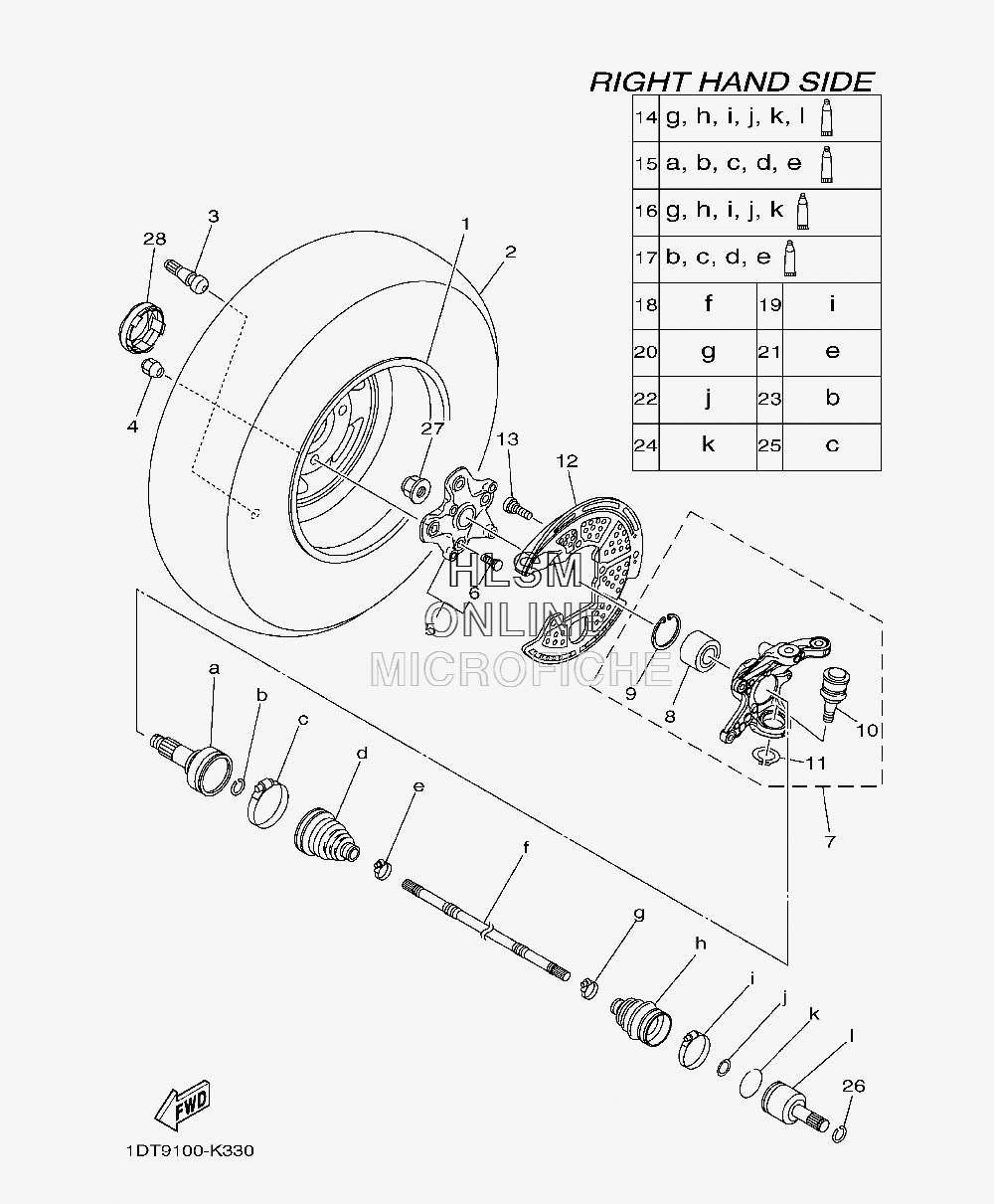

WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY для Yamaha GRIZZLY 550 EPS 4WD (PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
13B4-25180-C0-00 WHEEL COMP.WHEEL COMP.
-
294108-12012-00 TIRE (AT25X8-12 KT421 T/L N)TIRE (AT25X8-12 KT421 T/L N)
-
393900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
490179-10016-00 NUTNUT
-
53B4-25111-10-00 HUB, FRONTHUB, FRONT
-
690114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
728P-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
893305-00602-00 BEARINGBEARING
-
999009-55500-00 CIRCLIPCIRCLIP
-
103B4-23579-01-00 BALL JOINT 2BALL JOINT 2
-
1199009-30400-00 CIRCLIPCIRCLIP
-
123B4-2515A-00-00 RING, WHEEL 2RING, WHEEL 2
-
1390149-06117-00 SCREWSCREW
-
1428P-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
1528P-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
1628P-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
1728P-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
1828P-2518E-00-00 SHAFTSHAFT
-
193B4-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
203B4-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
2128P-2512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
223B4-2512J-00-00 SNAP RINGSNAP RING
-
233B4-2512H-00-00 CIRCLIPCIRCLIP
-
243B4-25182-00-00 CIRCLIPCIRCLIP
-
2528P-2511H-00-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
2693450-22119-00 CIRCLIPCIRCLIP
-
2790179-20016-00 NUTNUT
-
283B4-2530B-00-00 WHEEL CAP ASSY.WHEEL CAP ASSY.
