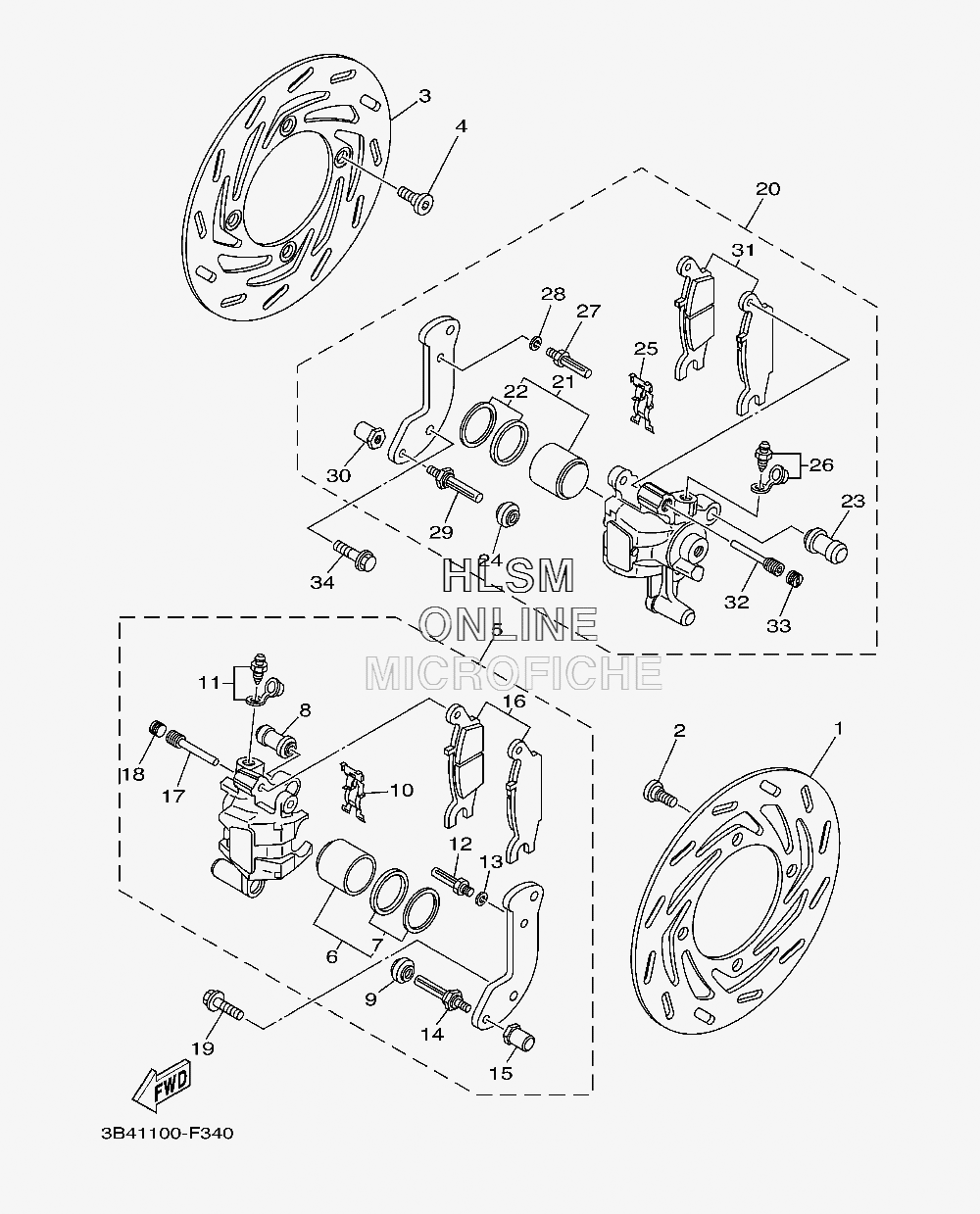

BRAKE - FRONT CALIPER для Yamaha GRIZZLY 700 EPS 4WD (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
13B4-2582T-01-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08101-00 BOLTBOLT
-
33B4-2582T-01-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
490109-08101-00 BOLTBOLT
-
53B4-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
63B4-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
73B4-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
81UY-25937-51-00 BOOT 2BOOT 2
-
93JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
105DH-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
111UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
121UY-25926-51-00 BOLTBOLT
-
131UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
143JD-25926-00-00 BOLTBOLT
-
153JD-25961-00-00 NUTNUT
-
163B4-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
175DH-25933-00-00 PIN, PADPIN, PAD
-
188CR-25926-00-00 BOLTBOLT
-
1990105-08184-00 BOLT, FLANGEBOLT, FLANGE
-
203B4-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
213B4-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
223B4-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
231UY-25937-51-00 BOOT 2BOOT 2
-
243JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
255DH-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
261UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
271UY-25926-51-00 BOLTBOLT
-
281UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
293JD-25926-00-00 BOLTBOLT
-
303JD-25961-00-00 NUTNUT
-
313B4-W0045-10-00 BRAKE PAD KITBRAKE PAD KIT
-
325DH-25933-00-00 PIN, PADPIN, PAD
-
338CR-25926-00-00 BOLTBOLT
-
3490105-08184-00 BOLT, FLANGEBOLT, FLANGE
