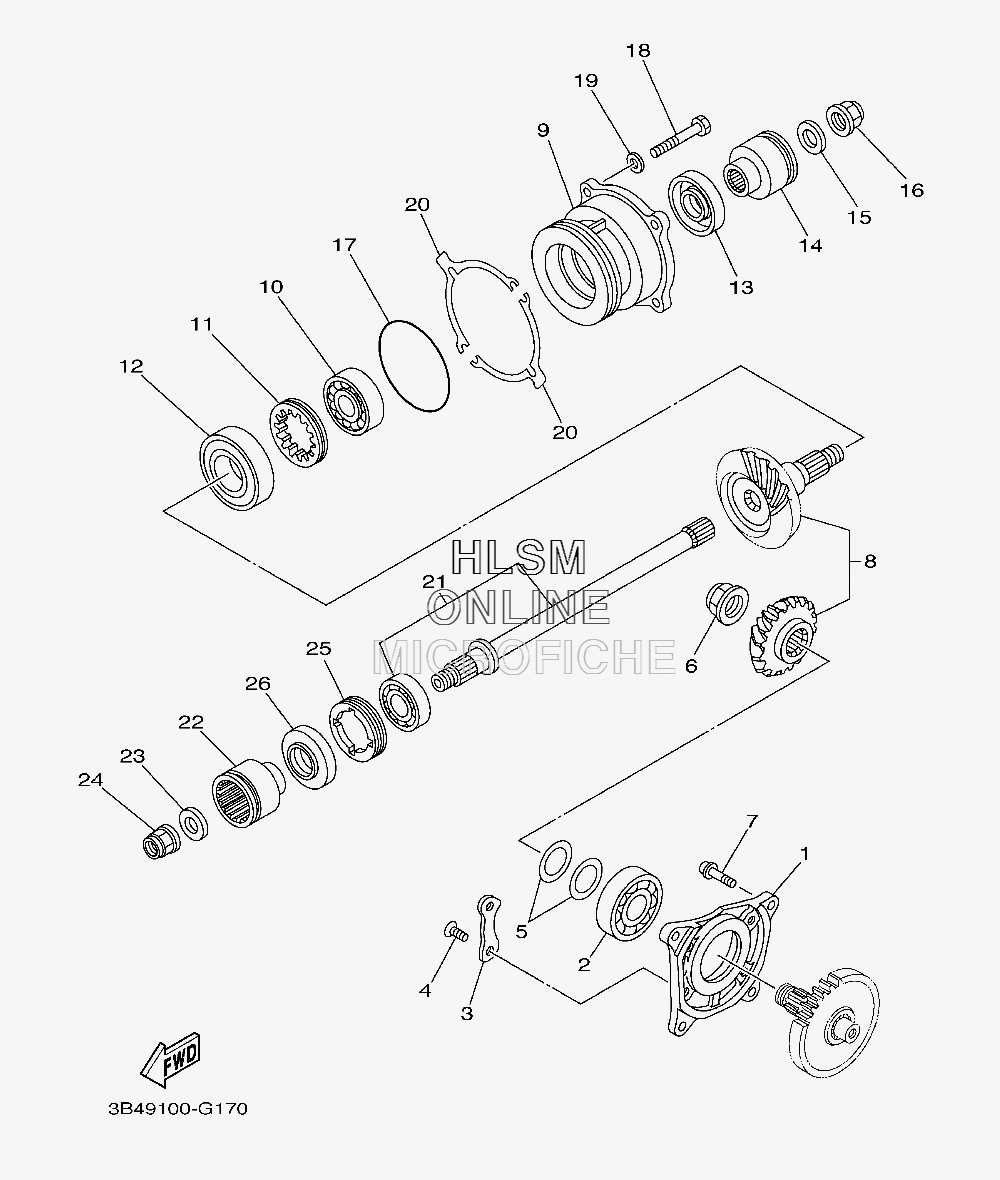

MIDDLE DRIVE GEAR для Yamaha GRIZZLY 700 EPS 4WD (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
13B4-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-30537-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08013-00 SCREWSCREW
-
55KM-17531-90-00 SHIM, PINION (0.8T)SHIM, PINION (0.8T)
-
55KM-17531-50-00 SHIM, PINION (0.5T)SHIM, PINION (0.5T)
-
55KM-17531-60-00 SHIM, PINION (0.55T)SHIM, PINION (0.55T)
-
55KM-17531-70-00 SHIM, PINION (0.6T)SHIM, PINION (0.6T)
-
55KM-17531-B0-00 SHIM, PINION (1.0T)SHIM, PINION (1.0T)
-
55KM-17531-A0-00 SHIM, PINION (0.9T)SHIM, PINION (0.9T)
-
55KM-17531-80-00 SHIM, PINION (0.7T)SHIM, PINION (0.7T)
-
690179-22013-00 NUTNUT
-
790110-08091-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
83B4-17530-00-00 PINION SETPINION SET
-
93B4-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1093306-37206-00 BEARINGBEARING
-
1190179-60001-00 NUTNUT
-
1293306-20654-00 BEARINGBEARING
-
1393102-30010-00 OIL SEALOIL SEAL
-
143B4-17832-10-00 COUPLINGCOUPLING
-
1590201-16021-00 WASHER, PLATEWASHER, PLATE
-
1690179-16006-00 NUTNUT
-
1793210-78544-00 O-RINGO-RING
-
1897022-08030-00 BOLTBOLT
-
1992902-08600-00 WASHER, PLATEWASHER, PLATE
-
203B4-17531-00-00 SHIM, PINION (0.1T)SHIM, PINION (0.1T)
-
203B4-17531-10-00 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
203B4-17531-20-00 SHIM, PINION (0.2T)SHIM, PINION (0.2T)
-
203B4-17531-60-00 SHIM, PINION (0.6T)SHIM, PINION (0.6T)
-
203B4-17531-30-00 SHIM, PINION (0.3T)SHIM, PINION (0.3T)
-
203B4-17531-40-00 SHIM, PINION (0.4T)SHIM, PINION (0.4T)
-
203B4-17531-50-00 SHIM, PINION (0.5T)SHIM, PINION (0.5T)
-
213B4-1755A-00-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
223B4-17832-10-00 COUPLINGCOUPLING
-
2390201-16021-00 WASHER, PLATEWASHER, PLATE
-
2490179-16006-00 NUTNUT
-
2590179-55660-00 NUTNUT
-
2693102-30010-00 OIL SEALOIL SEAL
