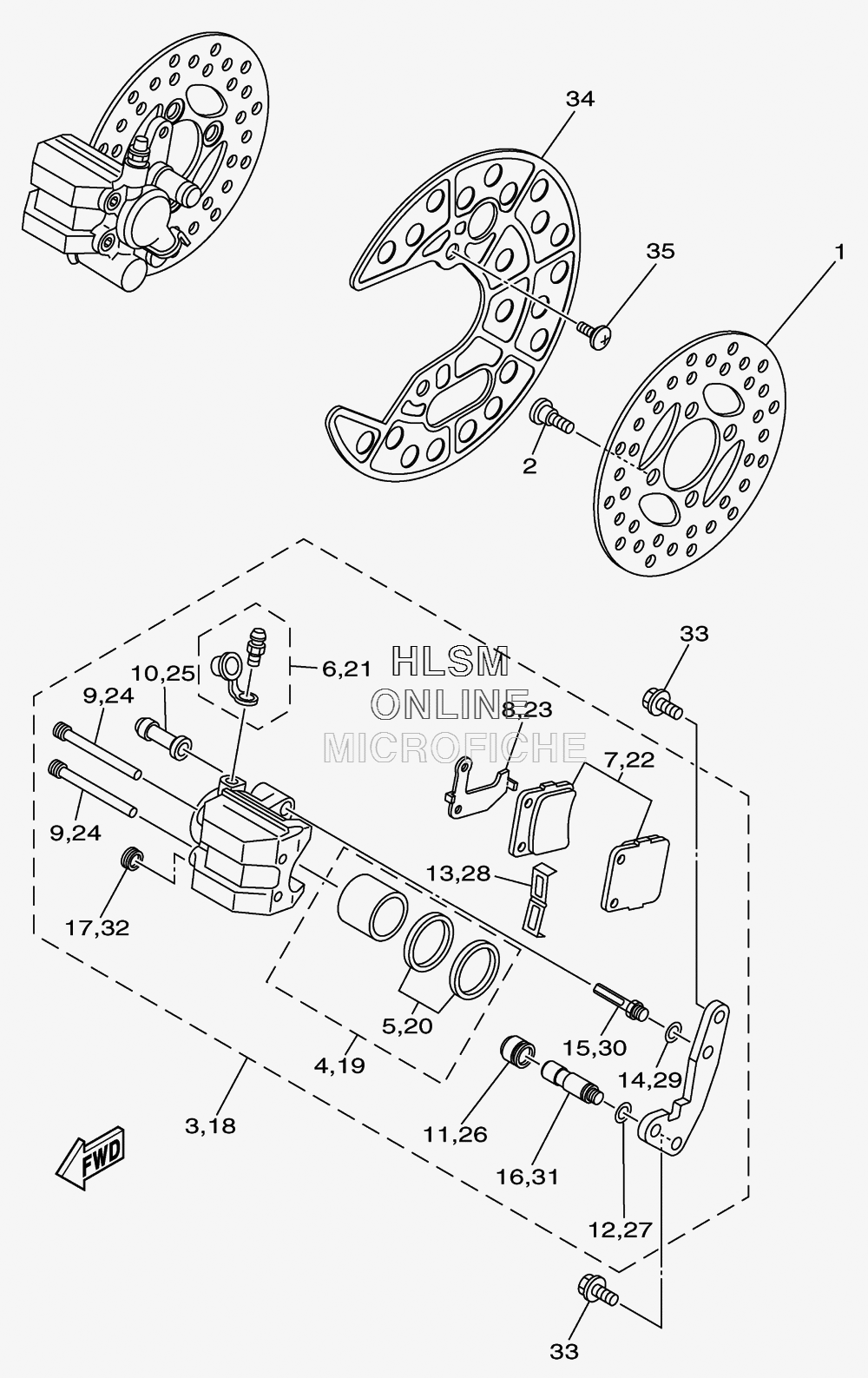

BRAKE - FRONT CALIPER для Yamaha RAPTOR 125 - 2011 года выпуска
-
№АртикулНазвание
-
12PA-2582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
33GD-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
61UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
73GD-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
83GD-25827-00-00 SHIM, CALIPERSHIM, CALIPER
-
93GD-25933-00-00 PIN, PADPIN, PAD
-
101UY-25937-51-00 BOOT 2BOOT 2
-
111UY-25917-51-00 BOOT, CALIPERBOOT, CALIPER
-
121UY-25934-51-00 SPRING, PADSPRING, PAD
-
131UY-25919-51-00 SUPPORT, PADSUPPORT, PAD
-
141UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
151UY-25926-51-00 BOLTBOLT
-
163GD-25914-00-00 PIN, SLIDEPIN, SLIDE
-
173GD-25916-00-00 PLUGPLUG
-
183GD-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
193GD-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
203GD-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
211UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
223GD-W0045-01-00 BRAKE PAD KITBRAKE PAD KIT
-
233GD-25828-00-00 SHIM, CALIPERSHIM, CALIPER
-
243GD-25933-00-00 PIN, PADPIN, PAD
-
251UY-25937-51-00 BOOT 2BOOT 2
-
261UY-25917-51-00 BOOT, CALIPERBOOT, CALIPER
-
271UY-25934-51-00 SPRING, PADSPRING, PAD
-
281UY-25919-51-00 SUPPORT, PADSUPPORT, PAD
-
291UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
301UY-25926-51-00 BOLTBOLT
-
313GD-25914-00-00 PIN, SLIDEPIN, SLIDE
-
323GD-25916-00-00 PLUGPLUG
-
3390105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
345YT-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3590149-06117-00 SCREWSCREW
