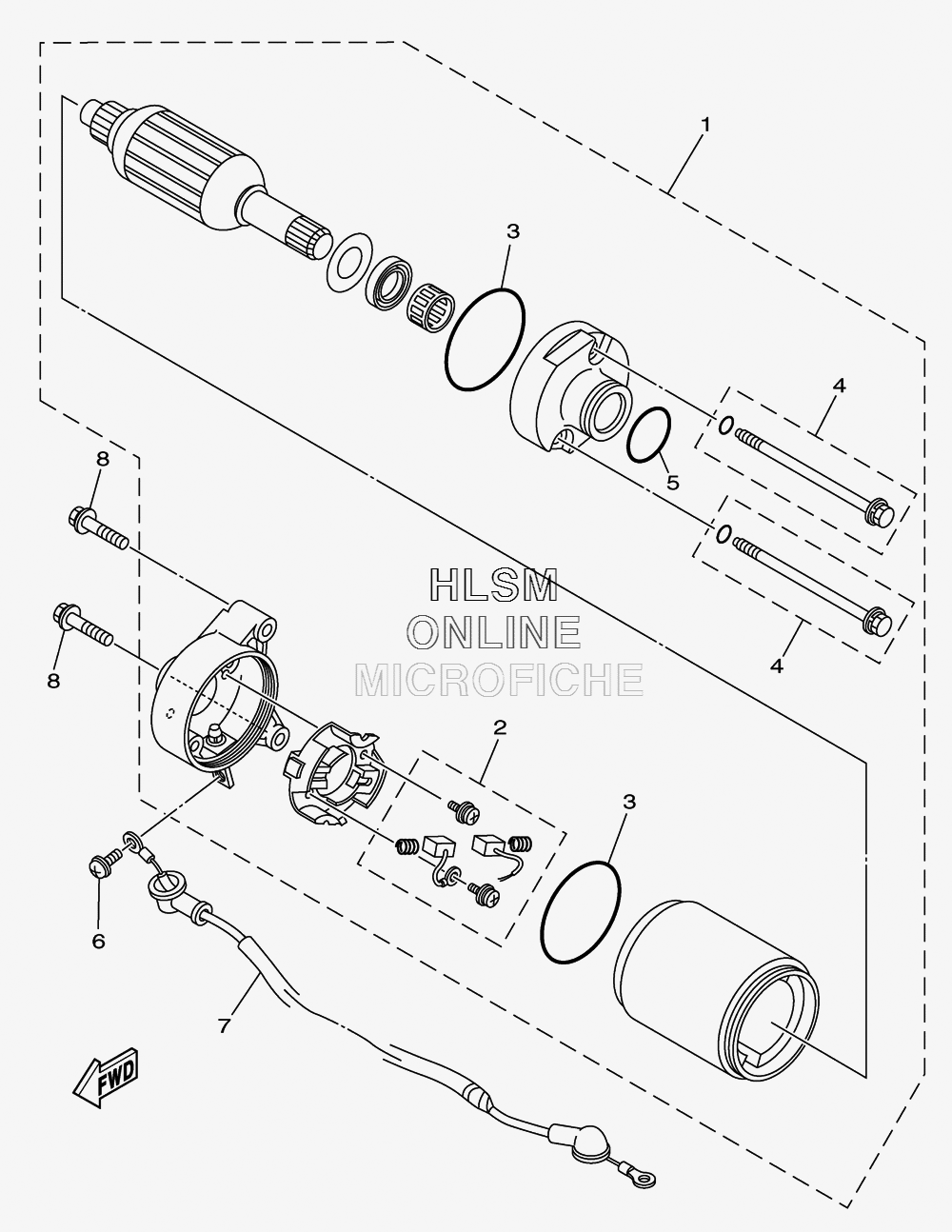

STARTING MOTOR для Yamaha RAPTOR 125 - 2011 года выпуска
-
№АртикулНазвание
-
13D9-H1890-10-00 MOTOR ASSYMOTOR ASSY
-
27CP-H1801-00-00 BRUSH SETBRUSH SET
-
393210-55669-00 O-RINGO-RING
-
44FP-H1828-01-00 BOLT 2BOLT 2
-
54FP-H182L-00-00 O-RING 1O-RING 1
-
697602-05108-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
72PA-H183G-00-00 CORD COMP.CORD COMP.
-
895022-06025-00 BOLT, FLANGEBOLT, FLANGE
