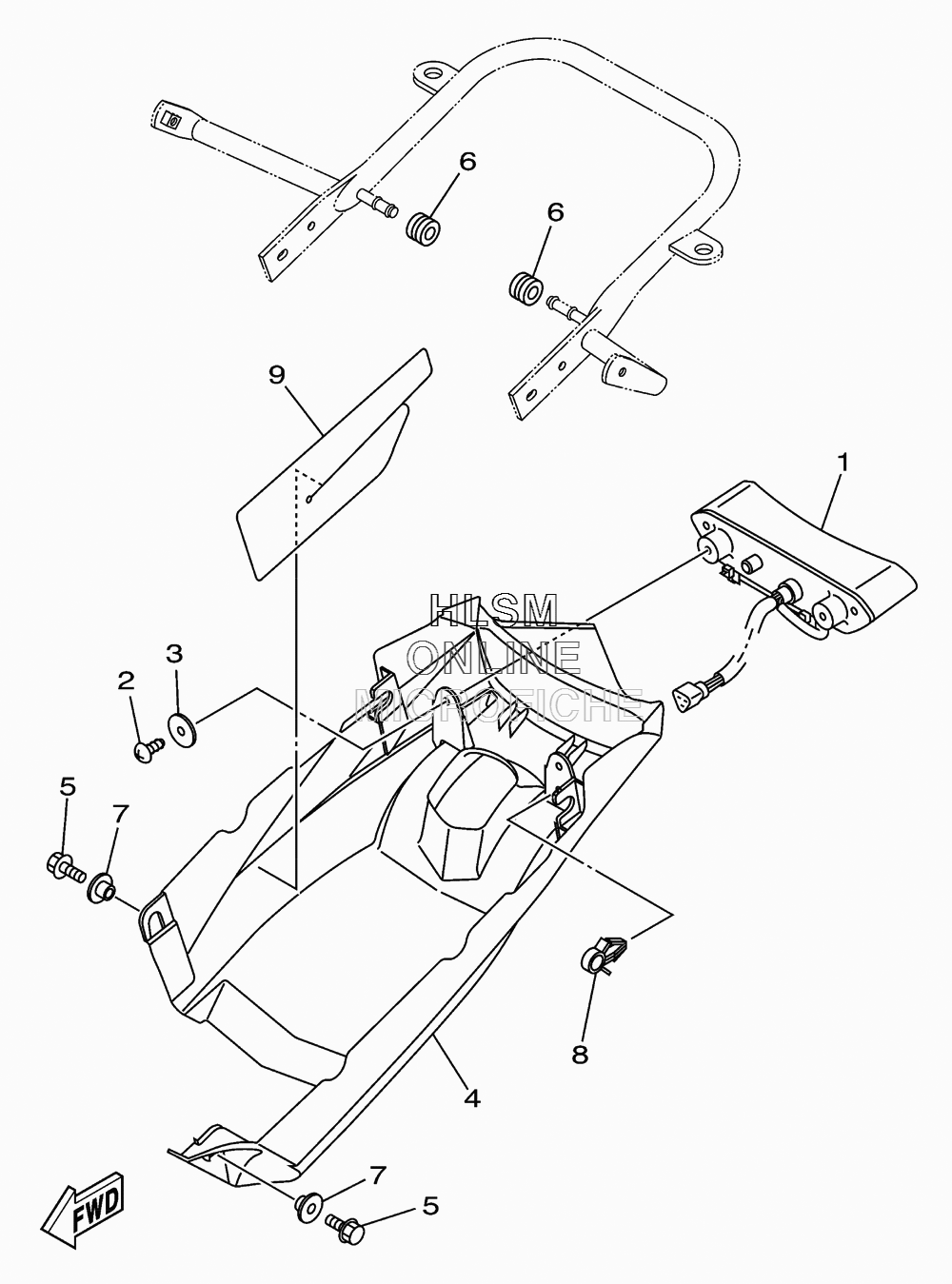

TAILLIGHT для Yamaha RAPTOR 700R - 2011 года выпуска
-
№АртикулНазвание
-
11S3-84710-01-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
390201-05025-00 WASHER, PLATEWASHER, PLATE
-
41S3-84716-21-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
595802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
690480-14101-00 GROMMETGROMMET
-
790387-06153-00 COLLARCOLLAR
-
890464-15157-00 CLAMPCLAMP
-
91S3-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
