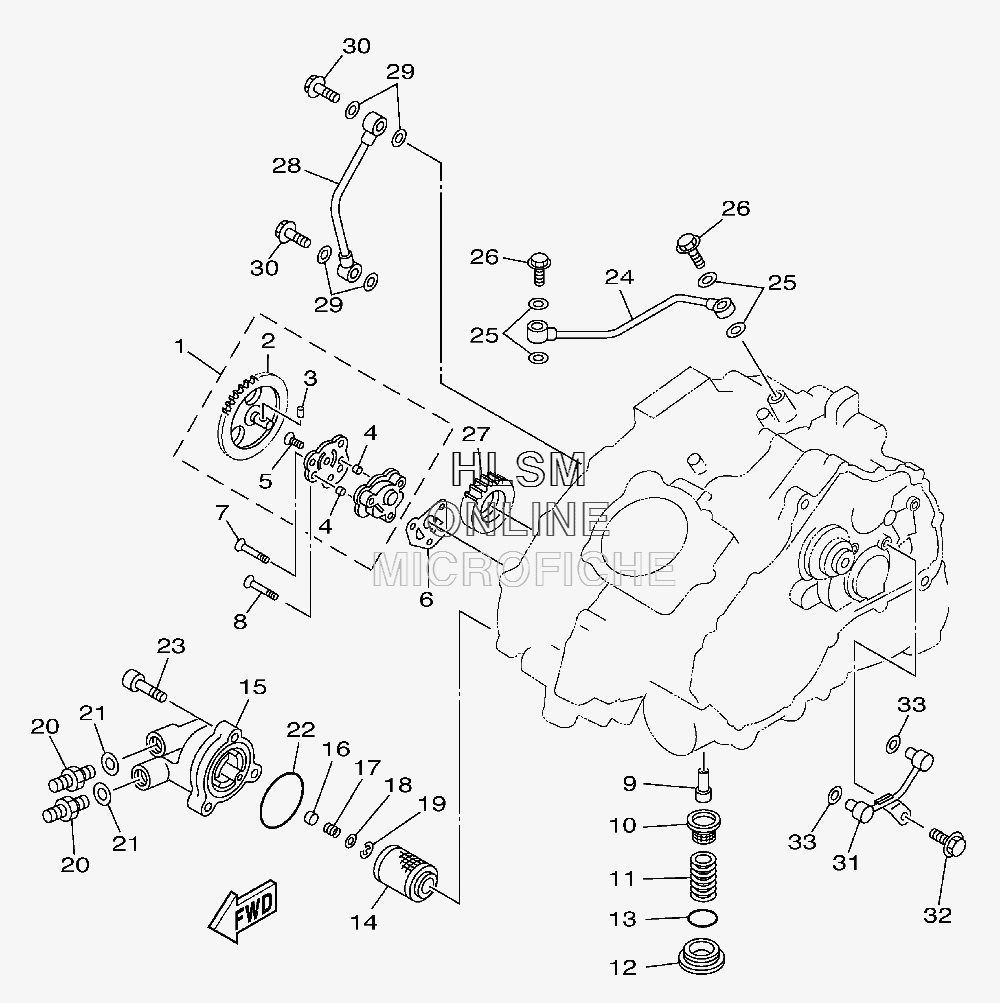

OIL PUMP для Yamaha BIG BEAR 400 4WD HUNTER - 2012 года выпуска
-
№АртикулНазвание
-
11UY-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
21UY-13326-00-00 ...GEAR, PUMP DRIVEN 2...GEAR, PUMP DRIVEN 2
-
393603-12030-00 ...PIN, DOWEL...PIN, DOWEL
-
493603-07073-00 ...PIN, DOWEL...PIN, DOWEL
-
590151-06010-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
63GD-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
798702-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
890151-06064-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
92XK-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1051Y-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1190501-18576-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1230X-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1393210-35520-00 O-RINGO-RING
-
141UY-13440-02-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
154KB-13447-00-00 COVER, OIL ELEMENTCOVER, OIL ELEMENT
-
161YW-13497-00-00 PLUGPLUG
-
1790501-082E3-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1892902-06600-00 WASHER, PLATEWASHER, PLATE
-
1993420-13073-00 CIRCLIPCIRCLIP
-
201S3-13132-00-00 JOINTJOINT
-
2190430-14043-00 GASKETGASKET
-
2293210-54452-00 O-RINGO-RING
-
2390110-06278-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
244KB-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
2590430-08119-00 GASKETGASKET
-
2690401-08006-00 BOLT, UNIONBOLT, UNION
-
274KB-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
284KB-13161-01-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2990430-08119-00 GASKETGASKET
-
3090401-08004-00 BOLT, UNIONBOLT, UNION
-
314KB-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
3295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3393210-06632-00 O-RINGO-RING
