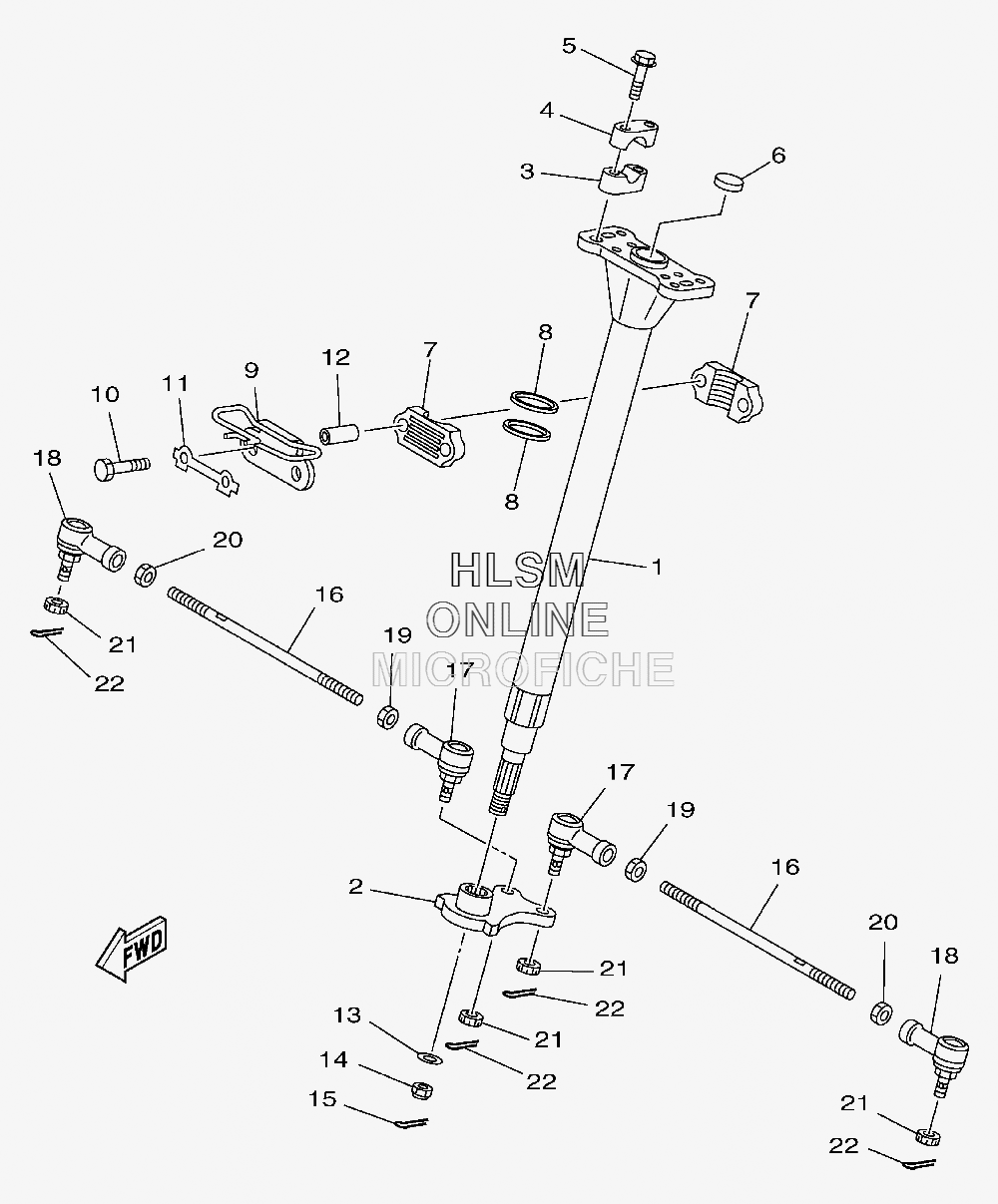

STEERING для Yamaha BIG BEAR 400 4WD HUNTER - 2012 года выпуска
-
№АртикулНазвание
-
15FU-F3813-20-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
25ND-F3816-12-00 ARM, PITMANARM, PITMAN
-
32HR-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
48K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
595022-08050-00 BOLT, FLANGEBOLT, FLANGE
-
690336-28053-00 PLUG, TAPERPLUG, TAPER
-
737S-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
893112-31800-00 OIL SEALOIL SEAL
-
94XE-F3868-20-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1097022-08060-00 BOLTBOLT
-
111UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1290387-090R0-00 COLLARCOLLAR
-
1390201-14021-00 WASHER, PLATEWASHER, PLATE
-
1490185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1591401-20025-00 PIN, COTTERPIN, COTTER
-
164S1-23831-00-00 ROD, TIEROD, TIE
-
1737S-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
184S2-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1937S-23833-00-00 NUT 1NUT 1
-
2037S-23834-00-00 NUT 2NUT 2
-
2190171-12001-00 NUT, CASTLENUT, CASTLE
-
2291401-25020-00 PIN, COTTERPIN, COTTER
