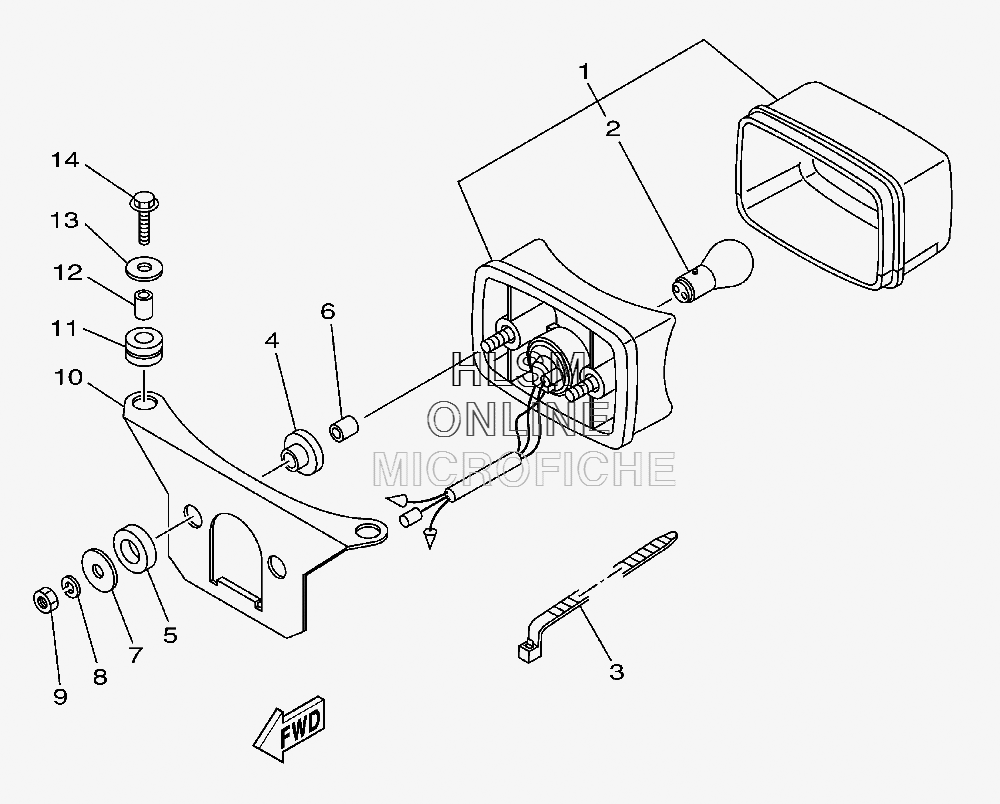

TAILLIGHT для Yamaha GRIZZLY 125 - 2012 года выпуска
-
№АртикулНазвание
-
13FA-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
390464-15195-00 CLAMPCLAMP
-
490480-14088-00 GROMMETGROMMET
-
590202-14077-00 WASHER, PLATEWASHER, PLATE
-
690387-06201-00 COLLARCOLLAR
-
790201-06097-00 WASHER, PLATEWASHER, PLATE
-
892902-06100-00 WASHER, SPRINGWASHER, SPRING
-
995302-06600-00 NUTNUT
-
103FA-84702-10-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1190480-14555-00 GROMMETGROMMET
-
1290387-065L7-00 COLLARCOLLAR
-
1390201-06033-00 WASHER, PLATEWASHER, PLATE
-
1495802-06025-00 BOLT, FLANGEBOLT, FLANGE
