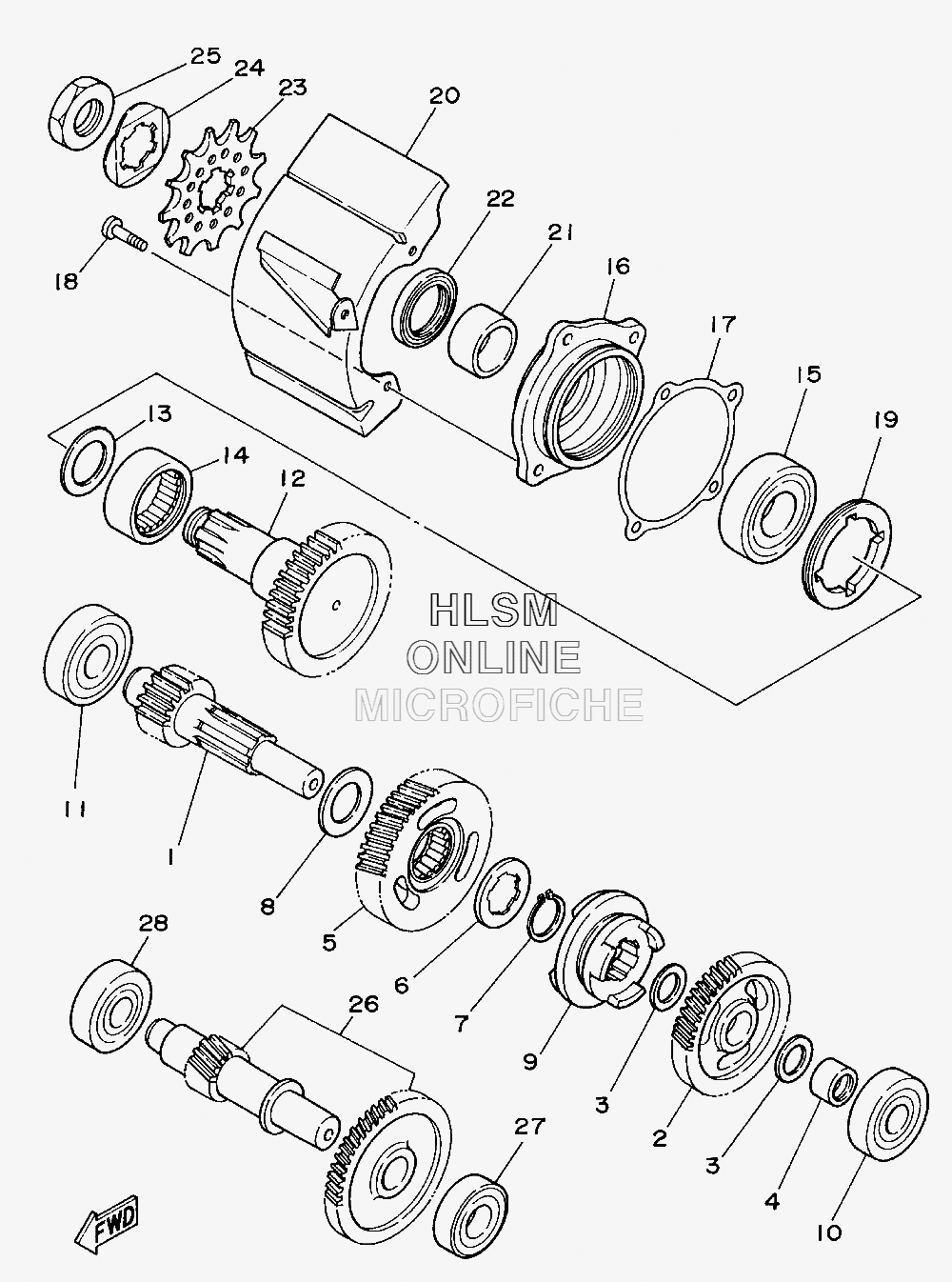

TRANSMISSION для Yamaha GRIZZLY 125 - 2012 года выпуска
-
№АртикулНазвание
-
13FA-17411-00-00 AXLE, MAIN (17T)AXLE, MAIN (17T)
-
23FA-16151-00-00 GEAR, PRIMARY DRIVEN (43T)GEAR, PRIMARY DRIVEN (43T)
-
390201-15700-00 WASHER, PLATEWASHER, PLATE
-
490560-15348-00 SPACERSPACER
-
53FA-17270-00-00 REDUCTION GEAR ASSY (49T)REDUCTION GEAR ASSY (49T)
-
690215-22276-00 WASHER, LOCKWASHER, LOCK
-
793410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
890201-221M8-00 WASHER, PLATEWASHER, PLATE
-
93FA-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
1093306-20201-00 BEARINGBEARING
-
1193306-20401-00 BEARINGBEARING
-
123FA-17421-00-00 AXLE, DRIVE (40T)AXLE, DRIVE (40T)
-
1390201-252A4-00 WASHER, PLATEWASHER, PLATE
-
1493311-43048-00 BEARING, CYL.#11BEARING, CYL.#11
-
1593306-20532-00 BEARINGBEARING
-
163FA-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
173FA-17519-10-00 GASKET, HOUSING CAPGASKET, HOUSING CAP
-
1891312-06020-00 BOLTBOLT
-
1990179-55464-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
203FA-17471-01-00 PLATE, COVERPLATE, COVER
-
2190387-251W4-00 COLLARCOLLAR
-
2293102-30243-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2393834-12016-00 SPROCKET,DRIVE 12T(38V1746120)SPROCKET,DRIVE 12T(38V1746120)
-
2490215-21239-00 WASHER, LOCKWASHER, LOCK
-
2590179-20255-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
263FA-17430-00-00 COUNTER AXLE ASSY (15T)COUNTER AXLE ASSY (15T)
-
2793306-20301-00 BEARINGBEARING
-
2893306-30201-00 BEARINGBEARING
