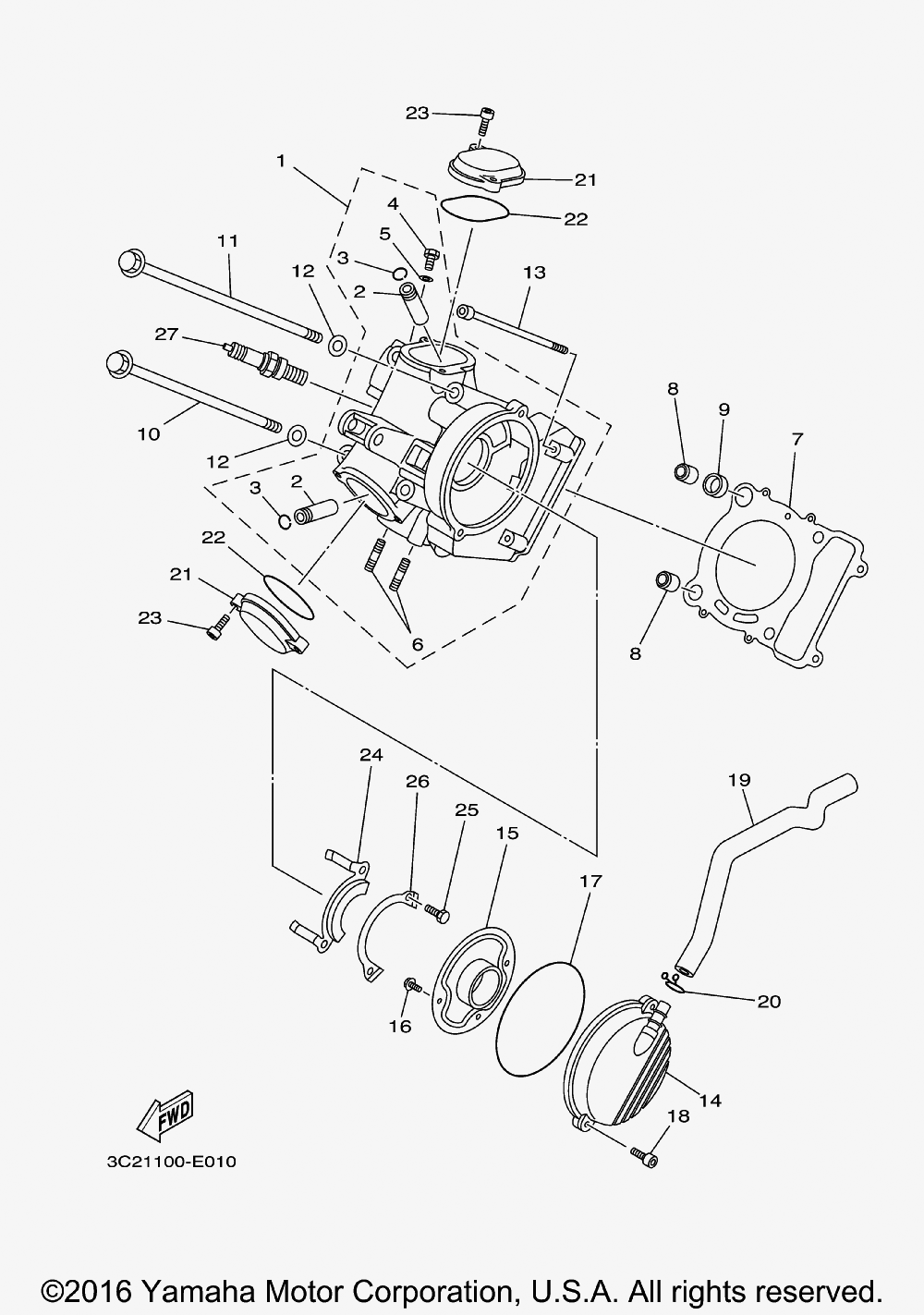

CYLINDER HEAD для Yamaha GRIZZLY 450 4WD HUNTER - 2012 года выпуска
-
№АртикулНазвание
-
15GH-11110-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23Y1-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12052-00 ...CIRCLIP...CIRCLIP
-
490401-06001-00 ...BOLT, UNION...BOLT, UNION
-
590430-06192-00 ...GASKET...GASKET
-
695617-08620-00 ...BOLT, STUD...BOLT, STUD
-
75GH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
899530-14016-00 PIN, DOWELPIN, DOWEL
-
990430-14240-00 GASKETGASKET
-
1090105-10137-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10136-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-10128-00 WASHER, PLATEWASHER, PLATE
-
1391312-06140-00 BOLTBOLT
-
144WU-11160-01-00 BREATHER ASSYBREATHER ASSY
-
154KB-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
1695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1793211-06635-00 O-RINGO-RING
-
1891312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
193C2-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2090467-140A4-00 CLIPCLIP
-
212NL-11186-12-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
2293210-57634-00 O-RINGO-RING
-
2391312-06020-00 BOLTBOLT
-
245GH-1111F-00-00 PLATEPLATE
-
2597002-06012-00 BOLTBOLT
-
2690215-06003-00 WASHER, LOCKWASHER, LOCK
-
27DR8-EA000-00-00 PLUG, SPARK (NGK DR8EA)PLUG, SPARK (NGK DR8EA)
