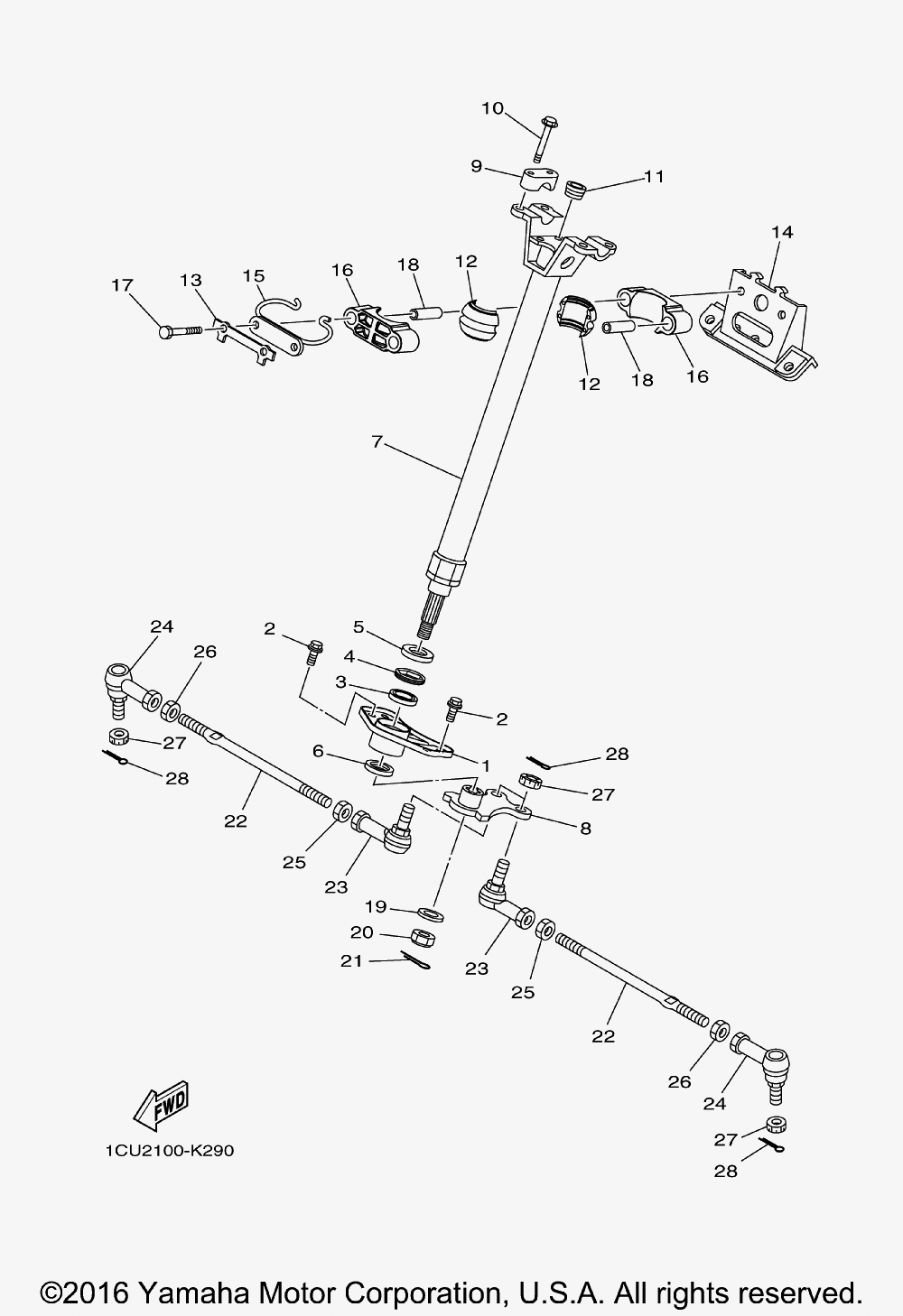

STEERING для Yamaha GRIZZLY 450 4WD HUNTER - 2012 года выпуска
-
№АртикулНазвание
-
11CU-F131H-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
290105-08237-00 BOLT, FLANGEBOLT, FLANGE
-
393306-203YN-00 BEARINGBEARING
-
493102-25081-00 OIL SEALOIL SEAL
-
593102-25099-00 OIL SEALOIL SEAL
-
62GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
75ND-F3813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
85ND-F3816-12-00 ARM, PITMANARM, PITMAN
-
98K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
1095812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1190336-28053-00 PLUG, TAPERPLUG, TAPER
-
121CT-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
131CT-F3894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
141CT-F253F-00-00 BRACKET, STEERINGBRACKET, STEERING
-
151CT-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
161CT-F1957-00-00 BRACKET, STEERING 2BRACKET, STEERING 2
-
1797012-08080-00 BOLTBOLT
-
181CT-F1545-00-00 COLLAR, 2COLLAR, 2
-
1990201-14021-00 WASHER, PLATEWASHER, PLATE
-
2090185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2191402-20025-00 PIN, COTTERPIN, COTTER
-
2237S-23831-00-00 ROD, TIEROD, TIE
-
2337S-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2437S-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2537S-23833-00-00 NUT 1NUT 1
-
2637S-23834-00-00 NUT 2NUT 2
-
2790171-12001-00 NUT, CASTLENUT, CASTLE
-
2891402-25020-00 PIN, COTTERPIN, COTTER
