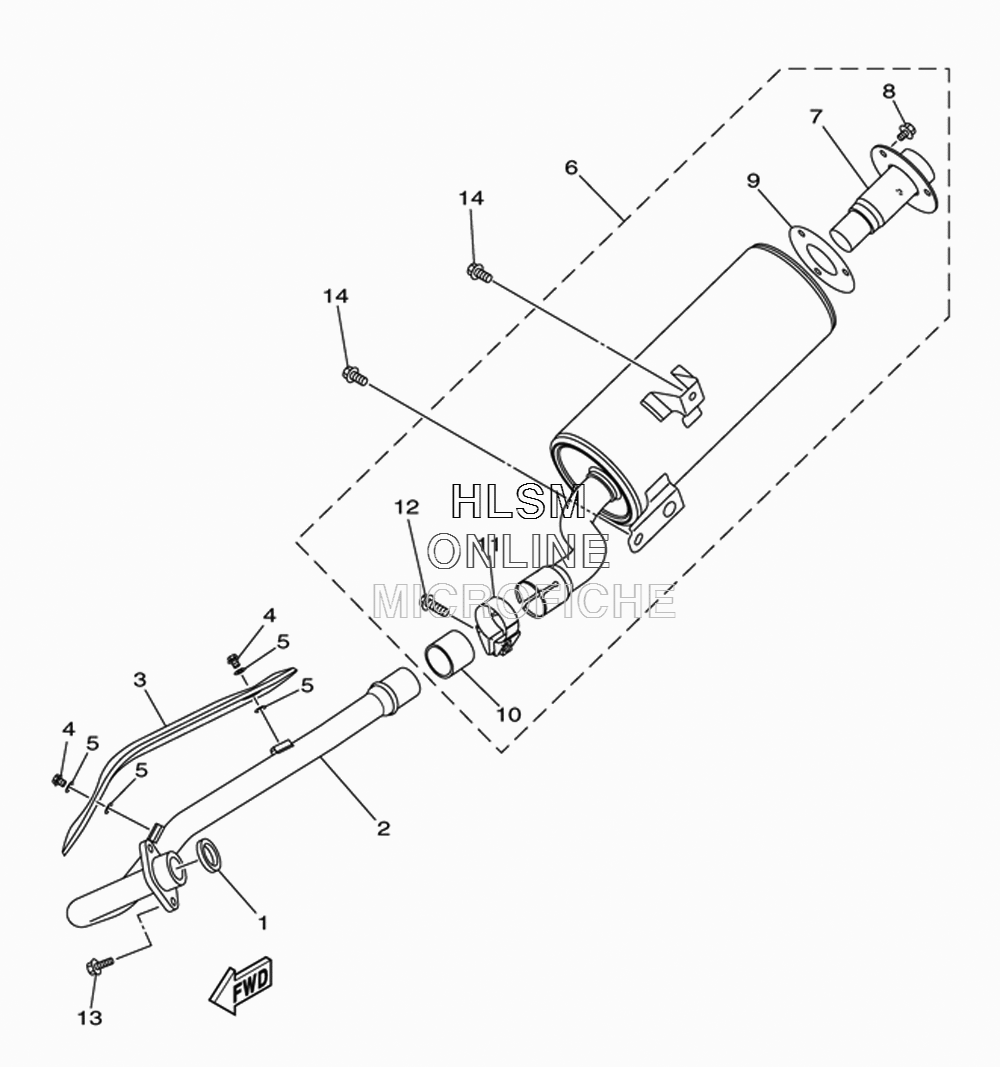

EXHAUST для Yamaha RAPTOR 125 - 2012 года выпуска
-
№АртикулНазвание
-
12PA-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
22PA-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
34D3-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
498902-06010-00 SCREW, BINDSCREW, BIND
-
590201-05017-00 WASHER, PLATEWASHER, PLATE
-
62PA-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
72PA-14752-00-00 ...PIPE, OUTLET...PIPE, OUTLET
-
895024-06010-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
94D3-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
103YF-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
112PA-14788-00-00 ...BAND, SILENCER...BAND, SILENCER
-
1295024-08025-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
1395812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1495812-08016-00 BOLT, FLANGEBOLT, FLANGE
