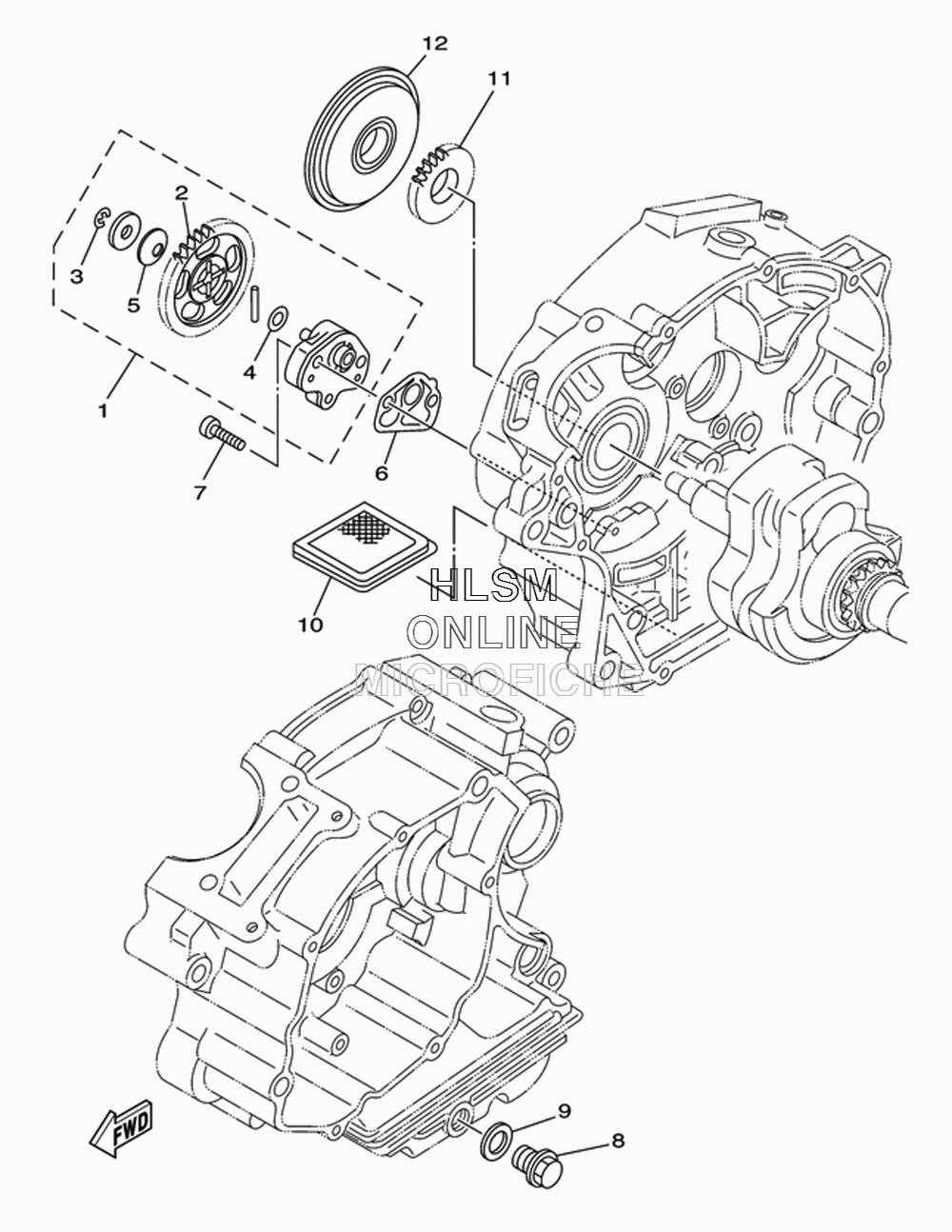

OIL PUMP для Yamaha RAPTOR 125 - 2012 года выпуска
-
№АртикулНазвание
-
15VL-E3300-01-00 OIL PUMP ASSYOIL PUMP ASSY
-
25VL-E3325-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
399002-05600-00 ...CLIP...CLIP
-
490201-07641-00 ...WASHER, PLATE...WASHER, PLATE
-
590208-07052-00 ...WASHER, CONICAL SPRING...WASHER, CONICAL SPRING
-
65VL-E3329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
790155-06800-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
890340-12097-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
990430-12227-00 GASKETGASKET
-
104FP-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
115VL-E3324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
125VL-E3451-00-00 FILTER,ROTARYFILTER,ROTARY
