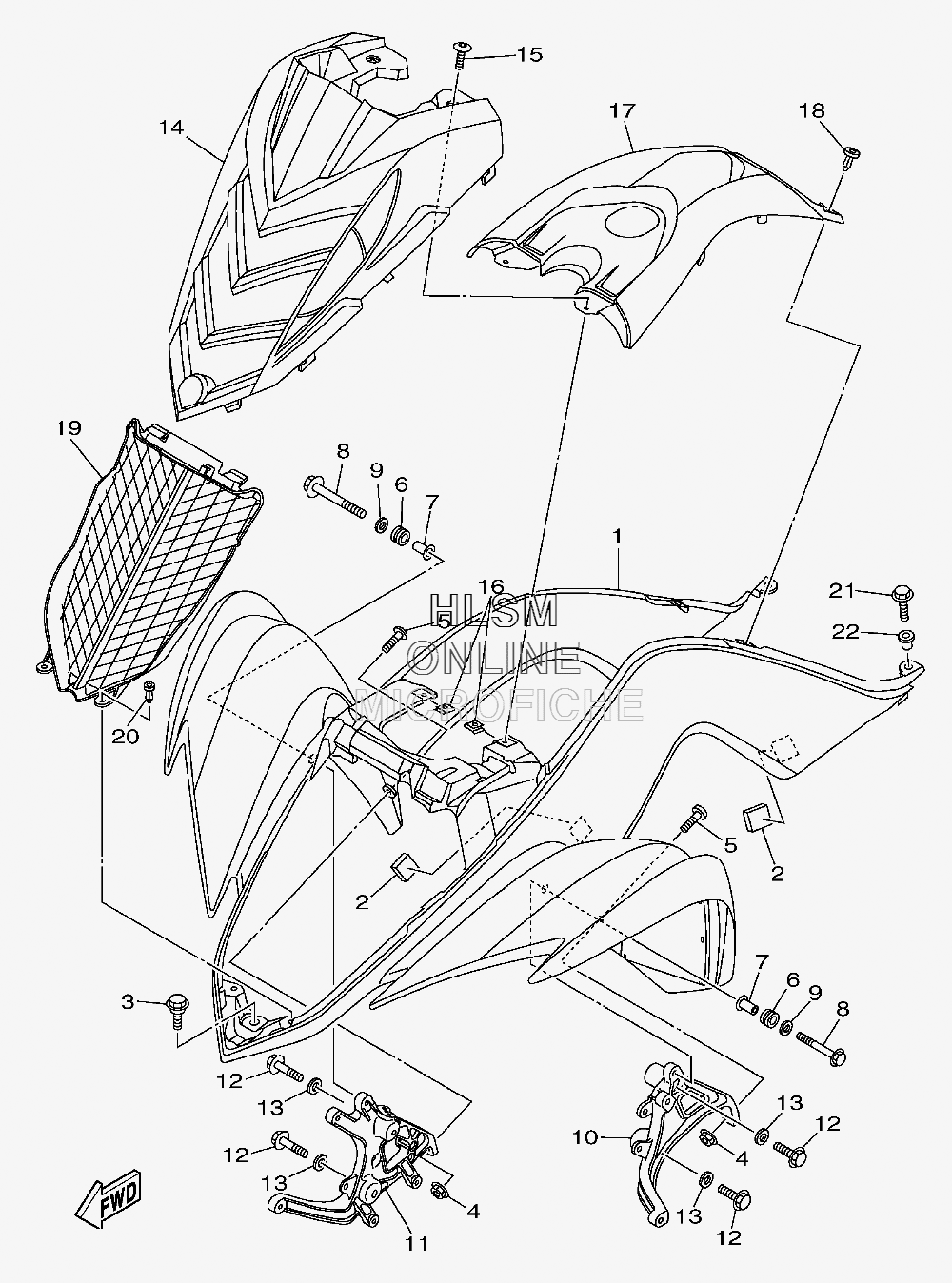

FENDER - FRONT для Yamaha RAPTOR 700R - 2012 года выпуска
-
№АртикулНазвание
-
11S3-W2151-01-00 FRONT FENDER COMP. (DPBSE)FRONT FENDER COMP. (DPBSE)
-
11S3-W2151-11-00 FRONT FENDER COMP. (BWS1)FRONT FENDER COMP. (BWS1)
-
21S3-21541-00-00 DAMPER 1DAMPER 1
-
390109-06172-00 BOLTBOLT
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
690480-14102-00 GROMMETGROMMET
-
790387-06136-00 COLLARCOLLAR
-
895812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
990201-06078-00 WASHER, PLATEWASHER, PLATE
-
101S3-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
111S3-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1295812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-06089-00 WASHER, PLATEWASHER, PLATE
-
141S3-23391-10-00 PANEL, FRONTPANEL, FRONT
-
1590149-05034-00 SCREWSCREW
-
1690183-05008-00 NUT, SPRINGNUT, SPRING
-
171S3-2171A-00-00 COVER, TOPCOVER, TOP
-
1890269-06002-00 RIVETRIVET
-
191S3-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2090269-06002-00 RIVETRIVET
-
2190105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-06146-00 COLLARCOLLAR
