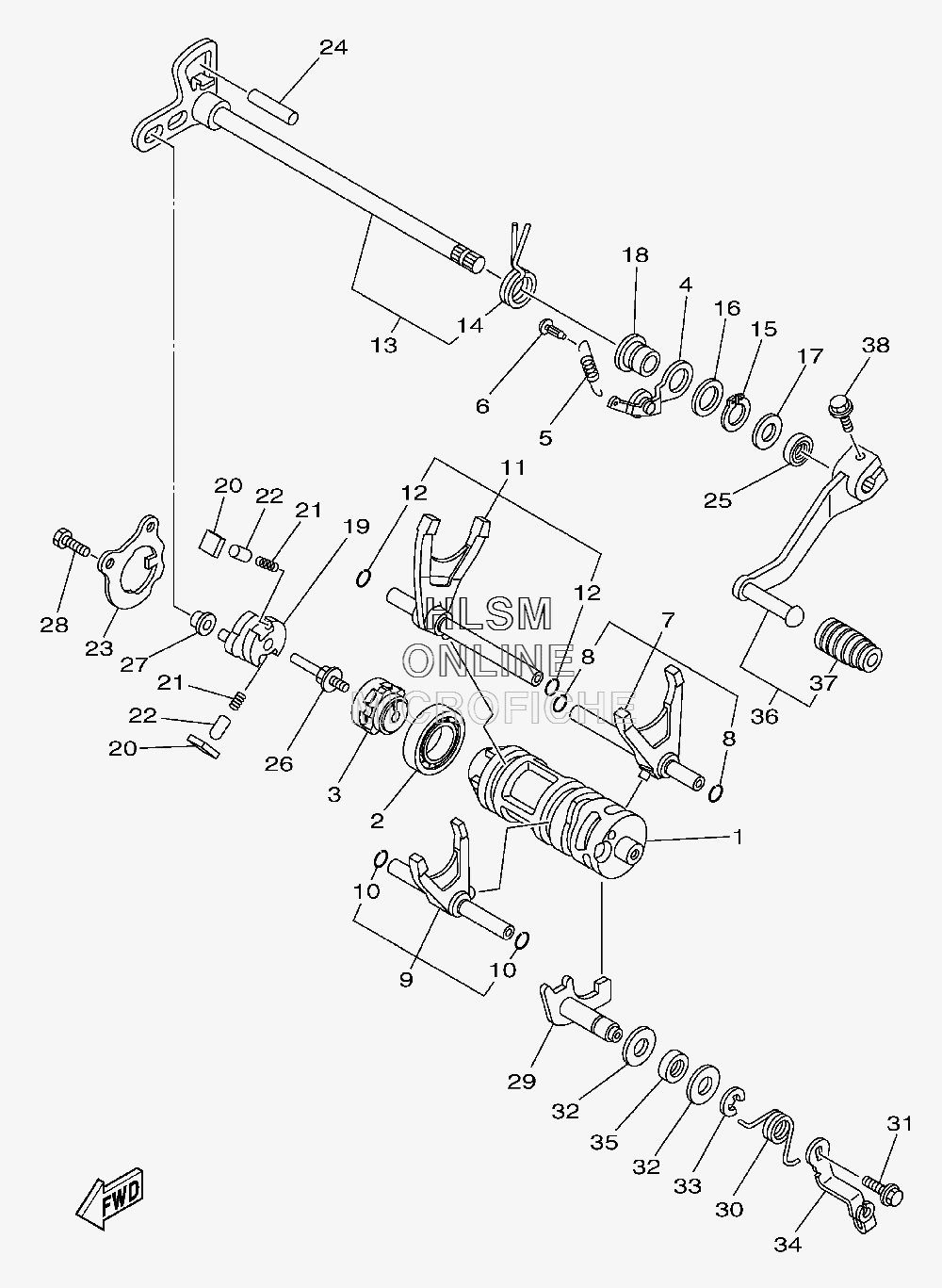

SHIFT CAM W/ FORK для Yamaha RAPTOR 700R - 2012 года выпуска
-
№АртикулНазвание
-
11S3-18541-00-00 CAM, SHIFTCAM, SHIFT
-
293306-90509-00 BEARINGBEARING
-
34EW-18185-00-00 SEGMENTSEGMENT
-
41S3-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
55JW-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
6132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
71S3-18501-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
893440-09141-00 ...CIRCLIP...CIRCLIP
-
91S3-18502-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
1093440-09141-00 ...CIRCLIP...CIRCLIP
-
111S3-18503-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
1293440-09141-00 ...CIRCLIP...CIRCLIP
-
131S3-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1490508-35007-00 ...SPRING, TORSION...SPRING, TORSION
-
1599009-17400-00 CIRCLIPCIRCLIP
-
1690201-177G4-00 WASHER, PLATEWASHER, PLATE
-
1790201-12040-00 WASHER, PLATEWASHER, PLATE
-
185VK-18699-00-00 BOSS 1BOSS 1
-
191S3-18122-01-00 LEVER, SHIFT 2LEVER, SHIFT 2
-
203XJ-18182-00-00 PAWL, SHIFTERPAWL, SHIFTER
-
2190501-052G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
223XJ-18184-00-00 PIN, PAWLPIN, PAWL
-
231S3-18172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
2493608-30002-00 PIN, DOWELPIN, DOWEL
-
2593102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
263XJ-18173-10-00 PIN, SHIFTPIN, SHIFT
-
273XJ-18178-00-00 ROLLER, SHIFT LEVERROLLER, SHIFT LEVER
-
2890101-06664-00 BOLTBOLT
-
291S3-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
305LP-18337-01-00 SPRINGSPRING
-
3195812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3290201-12575-00 WASHER, PLATEWASHER, PLATE
-
3399001-10600-00 CIRCLIPCIRCLIP
-
345LP-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
3593102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
361S3-18110-10-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
375YT-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
3890105-06142-00 BOLT, FLANGEBOLT, FLANGE
