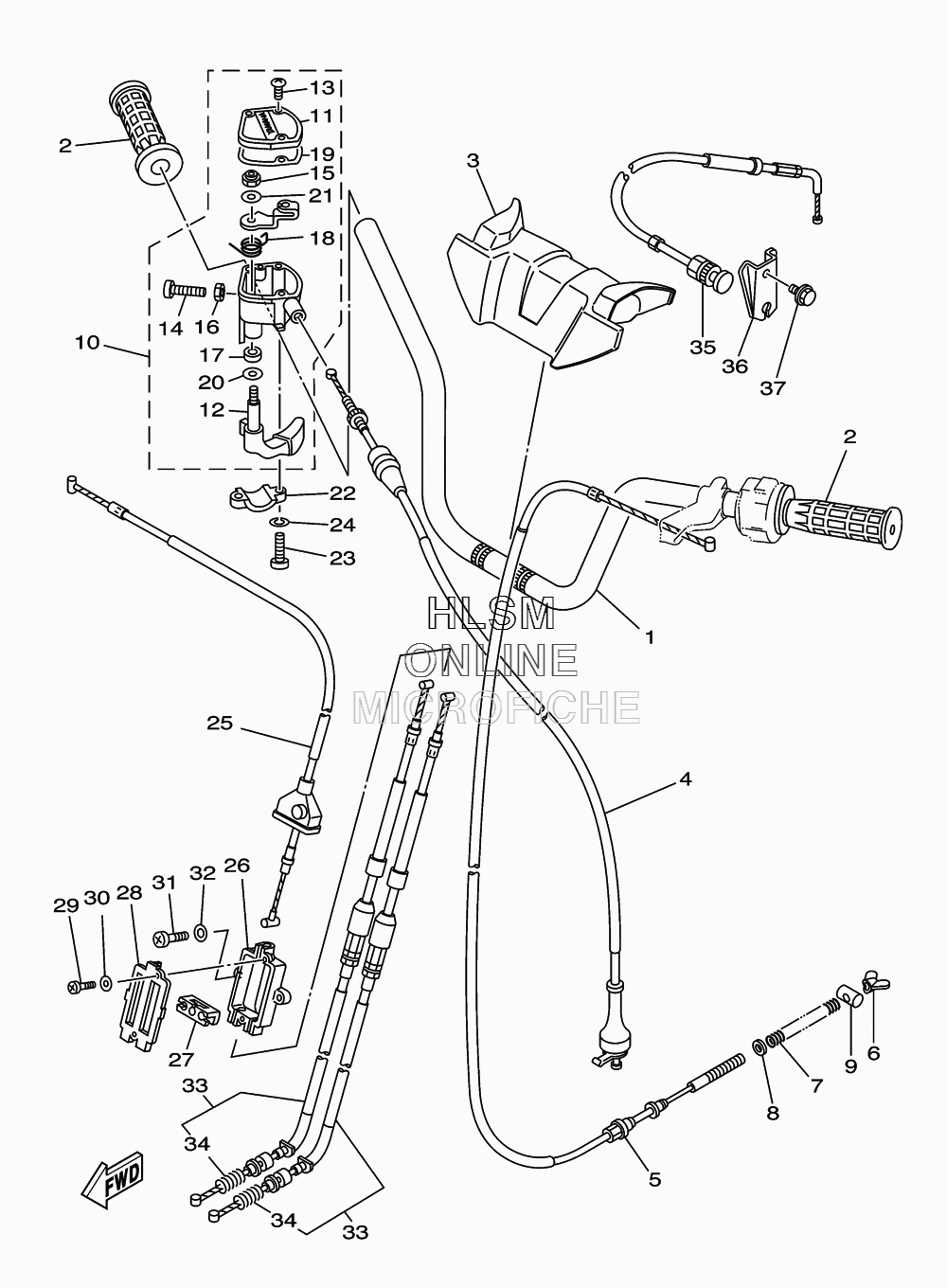

HANDLEBAR W/ CABLES для Yamaha GRIZZLY 125 - 2013 года выпуска
-
№АртикулНазвание
-
13FA-26111-20-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIP L/HGRIP L/H
-
31C5-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
43FA-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
53FA-26351-03-00 CABLE, BRAKECABLE, BRAKE
-
690175-06013-00 NUT, WINGNUT, WING
-
790501-122E1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
890202-08175-00 WASHER, PLATEWASHER, PLATE
-
990249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
104KB-26250-11-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
114KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
121NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1390149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1498507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1595602-05100-00 ...NUT, U...NUT, U
-
1695307-05700-00 ...NUT...NUT
-
1793104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
181NV-26304-00-00 ...SPRING...SPRING
-
194KB-2628G-00-00 ...GASKET...GASKET
-
201NV-26129-00-00 ...WASHER...WASHER
-
211NV-26398-00-00 ...WASHER...WASHER
-
221S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2398502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492902-05600-00 WASHER, PLATEWASHER, PLATE
-
253FA-26373-00-00 CABLE, BRAKE 4CABLE, BRAKE 4
-
2652H-26371-00-00 HOUSING, BRAKE LINKHOUSING, BRAKE LINK
-
2752H-26347-01-00 JOINT, CABLEJOINT, CABLE
-
2852H-2631G-00-00 PLATEPLATE
-
2998502-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3092902-03600-00 WASHER, PLATEWASHER, PLATE
-
3198502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3292902-05600-00 WASHER, PLATEWASHER, PLATE
-
333FA-26361-10-00 CABLE, BRAKECABLE, BRAKE
-
3490501-08511-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
353FA-26331-01-00 CABLE, STARTER 1CABLE, STARTER 1
-
361C5-26393-00-00 HOLDERHOLDER
-
3795822-06010-00 BOLT, FLANGEBOLT, FLANGE
