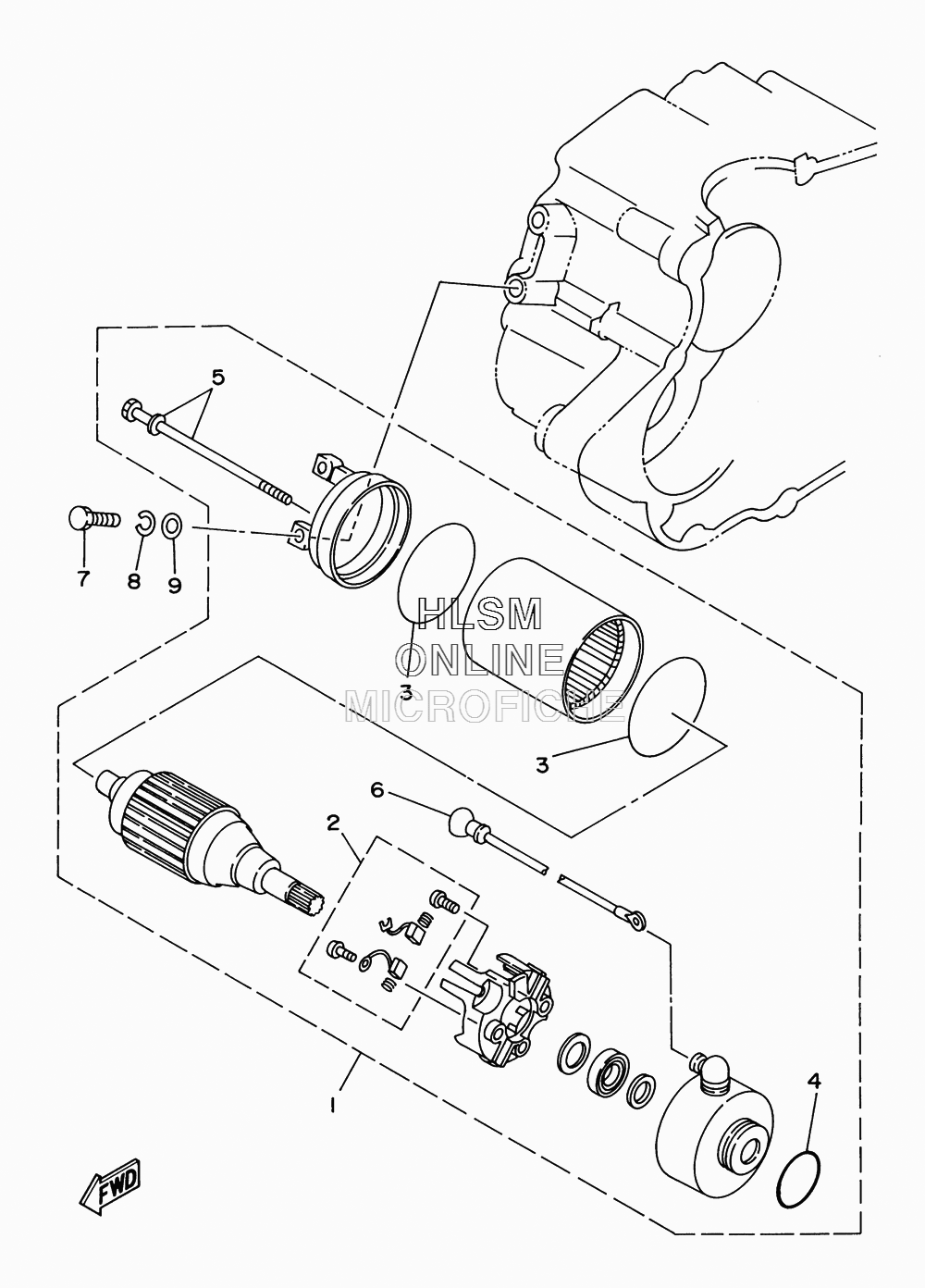

STARTING MOTOR для Yamaha GRIZZLY 125 - 2013 года выпуска
-
№АртикулНазвание
-
13FA-81800-01-00 STARTING MOTOR ASSY.STARTING MOTOR ASSY.
-
250M-81801-M0-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
493210-25711-00 ...O-RING...O-RING
-
53FA-81828-00-00 ...SCREW 2...SCREW 2
-
63FA-8183G-00-00 ...CORD COMP....CORD COMP.
-
797002-06025-00 BOLTBOLT
-
892902-06100-00 WASHER, SPRINGWASHER, SPRING
-
992902-06600-00 WASHER, PLATEWASHER, PLATE
