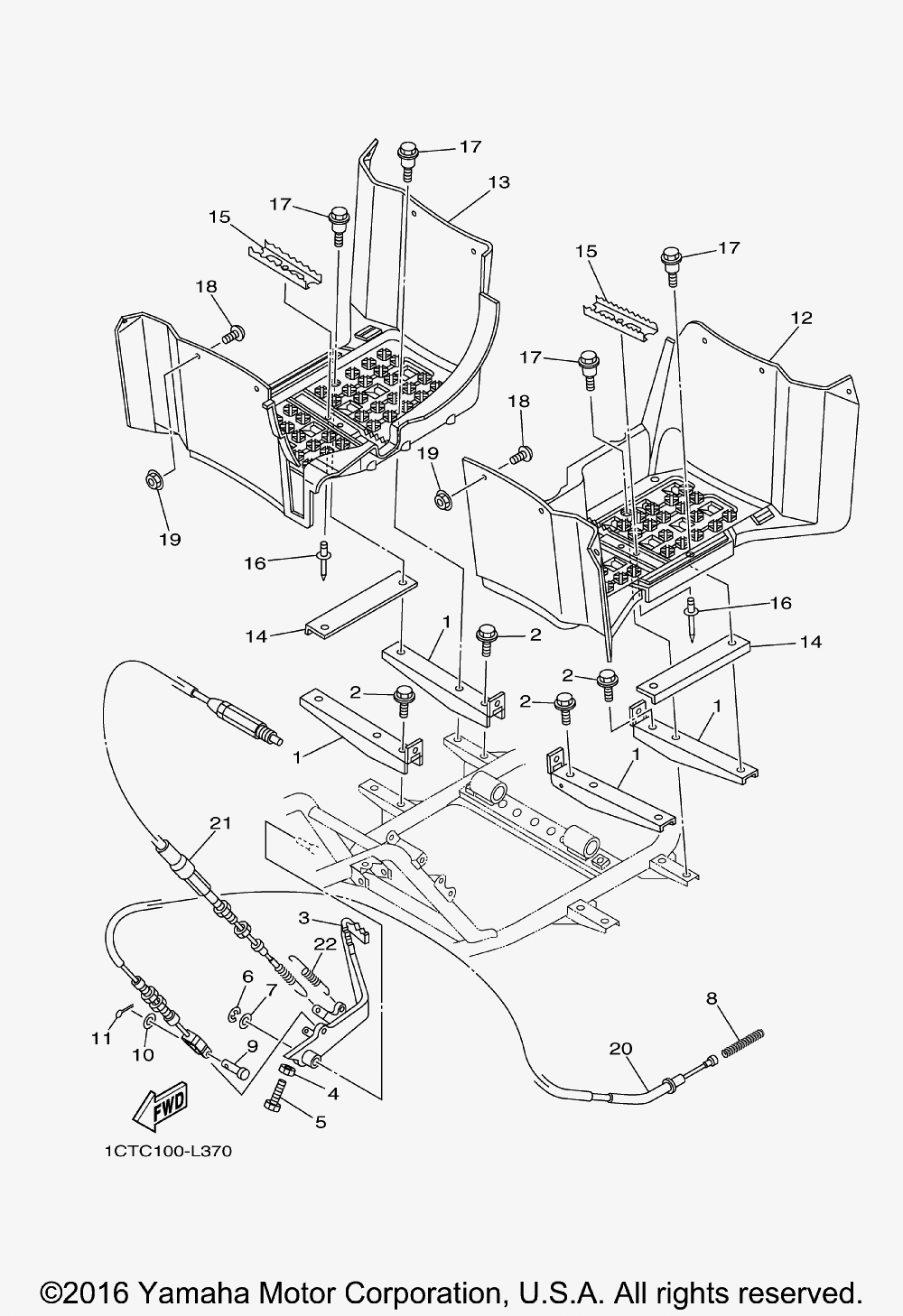

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY 450 4WD - 2013 года выпуска
-
№АртикулНазвание
-
15ND-F7471-01-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
31CT-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
495312-06700-00 NUTNUT
-
595812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
693430-10015-00 CIRCLIPCIRCLIP
-
790201-14023-00 WASHER, PLATEWASHER, PLATE
-
890501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
990240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1092902-06200-00 WASHERWASHER
-
1191401-20012-00 PIN, COTTERPIN, COTTER
-
125ND-F7453-01-00 COVER 1COVER 1
-
135ND-F7463-01-00 COVER 2COVER 2
-
145ND-F7445-00-00 PLATE 1PLATE 1
-
155UH-F741A-10-00 ARM 1ARM 1
-
1690267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1790109-06262-00 BOLTBOLT
-
1890149-05034-00 SCREWSCREW
-
1995602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
201CT-F6361-00-00 CABLE, BRAKECABLE, BRAKE
-
215GH-2637F-10-00 CABLE, CONTROL 2CABLE, CONTROL 2
-
2290506-20010-00 SPRING, TENSIONSPRING, TENSION
