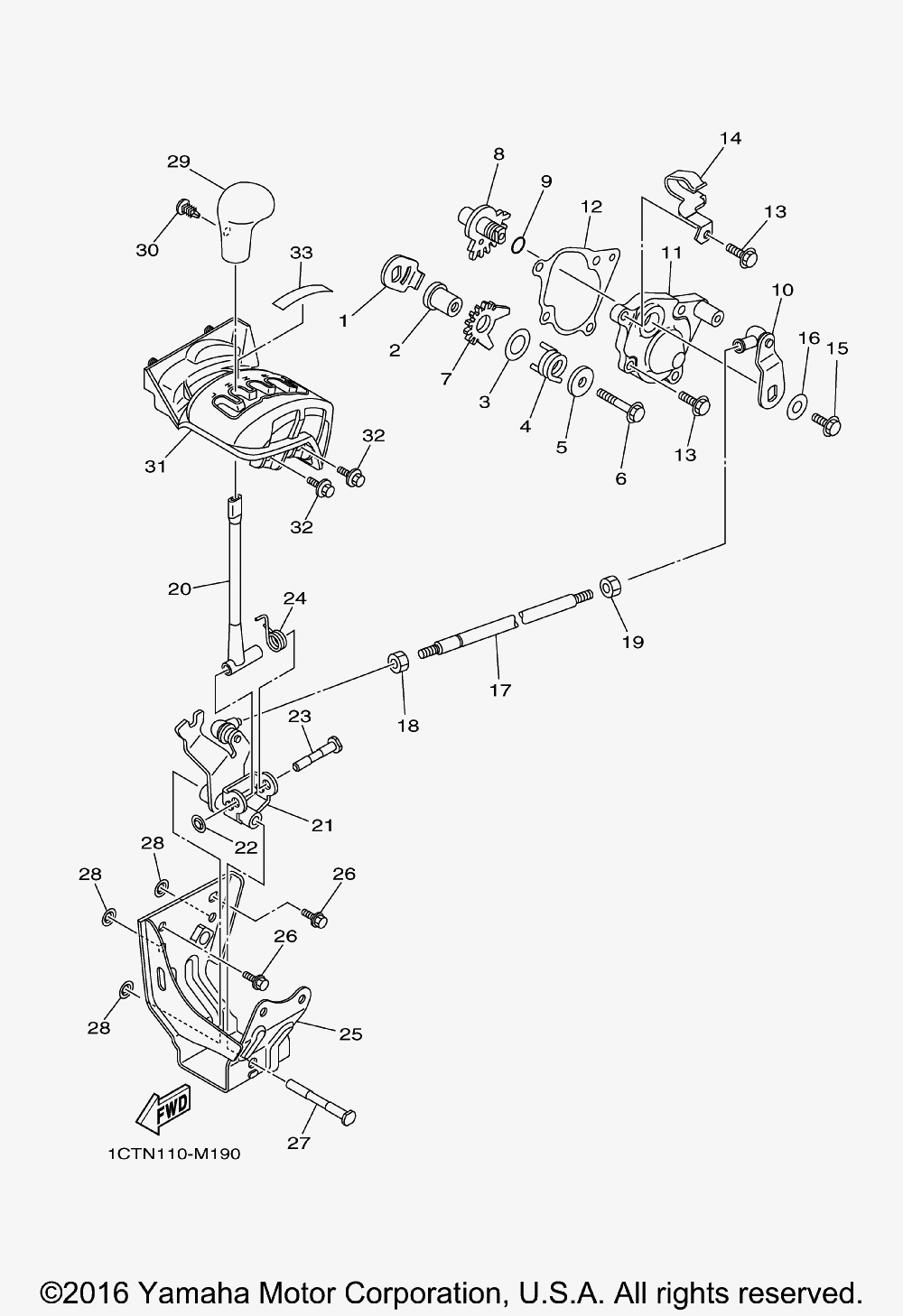

SHIFT SHAFT для Yamaha GRIZZLY 450 4WD - 2013 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
85GH-18197-00-00 SHAFTSHAFT
-
993210-11073-00 O-RINGO-RING
-
105GH-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115GH-18129-01-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125GH-18146-00-00 GASKETGASKET
-
1397080-06020-00 BOLTBOLT
-
1490465-08336-00 CLAMPCLAMP
-
1590105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
175GH-18115-01-00 ROD, SHIFTROD, SHIFT
-
1890170-08358-00 NUTNUT
-
1995302-08700-00 NUT, HEXAGONNUT, HEXAGON
-
201CT-E8190-00-00 LEVER COMP. 1LEVER COMP. 1
-
211CT-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2290183-080A1-00 NUT, SPRINGNUT, SPRING
-
233B4-18125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
243B4-18196-01-00 SPRING, RETURNSPRING, RETURN
-
251CT-E8380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
2695812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
271CT-E8155-00-00 SHAFT, SHIFT 2SHAFT, SHIFT 2
-
2890183-080A1-00 NUT, SPRINGNUT, SPRING
-
2928P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
3090269-05055-00 RIVETRIVET
-
311CT-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
3290109-06172-00 BOLTBOLT
-
331CT-E6782-00-00 DAMPERDAMPER
