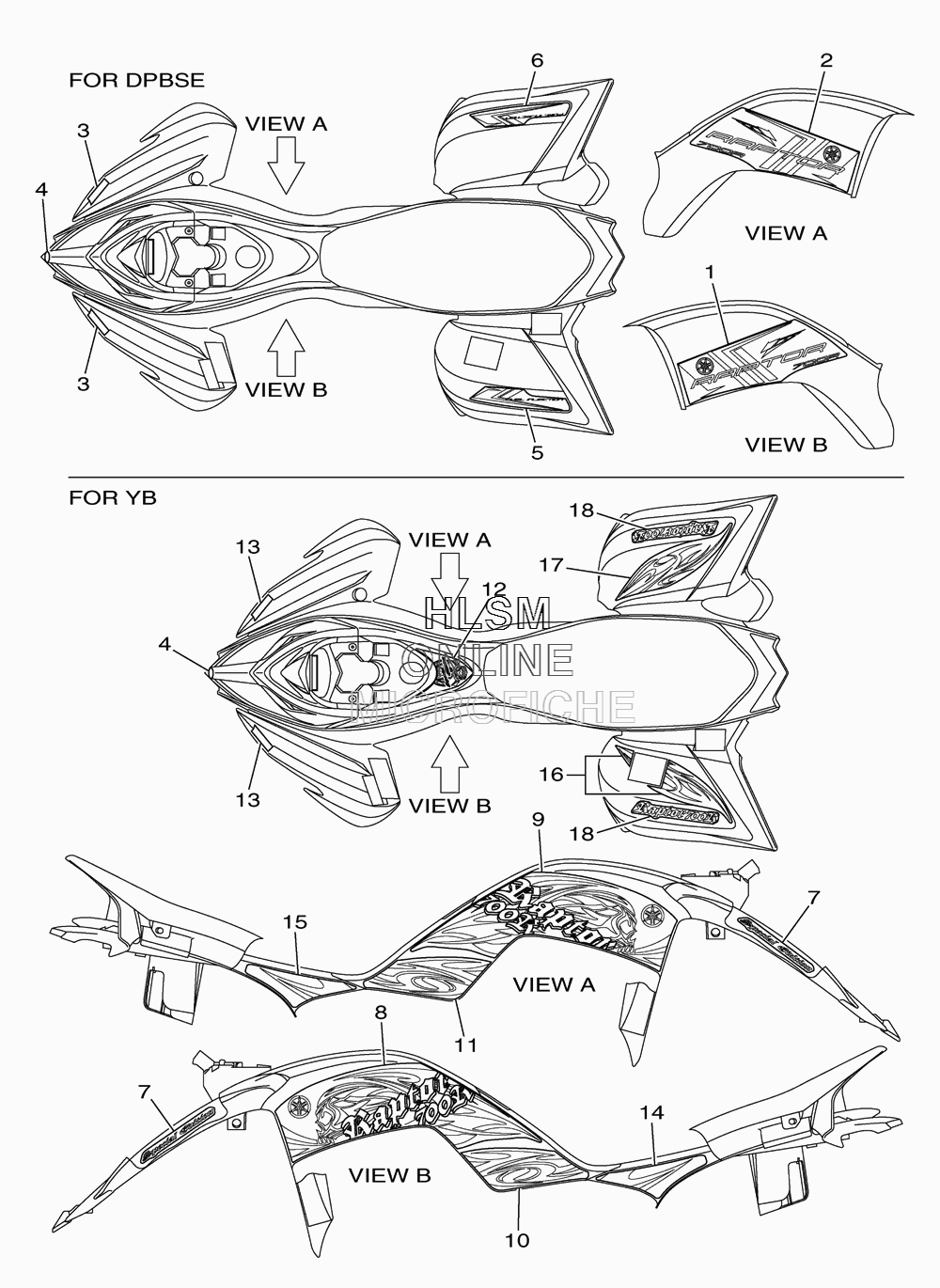

EMBLEMS для Yamaha RAPTOR 700R SPECIAL EDITION - 2013 года выпуска
-
№АртикулНазвание
-
11PE-F1571-00-00 GRAPHIC, FRONT FENDER 1 (FOR DPBSE - PURPLISH BLUE)GRAPHIC, FRONT FENDER 1 (FOR DPBSE - PURPLISH BLUE)
-
21PE-F1572-00-00 GRAPHIC, FRONT FENDER 2 (FOR DPBSE - PURPLISH BLUE)GRAPHIC, FRONT FENDER 2 (FOR DPBSE - PURPLISH BLUE)
-
33C2-F153E-20-00 EMBLEM, YAMAHA (FOR DPBSE - PURPLISH BLUE)EMBLEM, YAMAHA (FOR DPBSE - PURPLISH BLUE)
-
44KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
51VS-F163G-00-00 EMBLEM 1 (FOR DPBSE - PURPLISH BLUE)EMBLEM 1 (FOR DPBSE - PURPLISH BLUE)
-
61VS-F163H-00-00 EMBLEM 2 (FOR DPBSE - PURPLISH BLUE)EMBLEM 2 (FOR DPBSE - PURPLISH BLUE)
-
71VS-F1565-00-00 EMBLEM 2 (FOR YB - YAMAHA BLACK)EMBLEM 2 (FOR YB - YAMAHA BLACK)
-
81VS-F1599-00-00 GRAPHIC 3 (FOR YB - YAMAHA BLACK)GRAPHIC 3 (FOR YB - YAMAHA BLACK)
-
91VS-F15A9-00-00 GRAPHIC 4 (FOR YB - YAMAHA BLACK)GRAPHIC 4 (FOR YB - YAMAHA BLACK)
-
101VS-F15B9-00-00 GRAPHIC 5 (FOR YB - YAMAHA BLACK)GRAPHIC 5 (FOR YB - YAMAHA BLACK)
-
111VS-F15C9-00-00 GRAPHIC 6 (FOR YB - YAMAHA BLACK)GRAPHIC 6 (FOR YB - YAMAHA BLACK)
-
121VS-F1579-00-00 GRAPHIC 2 (FOR YB - YAMAHA BLACK)GRAPHIC 2 (FOR YB - YAMAHA BLACK)
-
133C2-F153E-50-00 EMBLEM, YAMAHA (FOR YB - YAMAHA BLACK)EMBLEM, YAMAHA (FOR YB - YAMAHA BLACK)
-
141VS-F165C-00-00 GRAPHIC, 1 (FOR YB - YAMAHA BLACK)GRAPHIC, 1 (FOR YB - YAMAHA BLACK)
-
151VS-F165D-00-00 GRAPHIC, 2 (FOR YB - YAMAHA BLACK)GRAPHIC, 2 (FOR YB - YAMAHA BLACK)
-
161VS-F165G-00-00 GRAPHIC, REAR (LEFT HAND) (FOR YB - YAMAHA BLACK)GRAPHIC, REAR (LEFT HAND) (FOR YB - YAMAHA BLACK)
-
171VS-F165H-00-00 GRAPHIC, REAR (RIGHT HAND) (FOR YB - YAMAHA BLACK)GRAPHIC, REAR (RIGHT HAND) (FOR YB - YAMAHA BLACK)
-
181VS-F1609-00-00 EMBLEM (FOR YB - YAMAHA BLACK)EMBLEM (FOR YB - YAMAHA BLACK)
