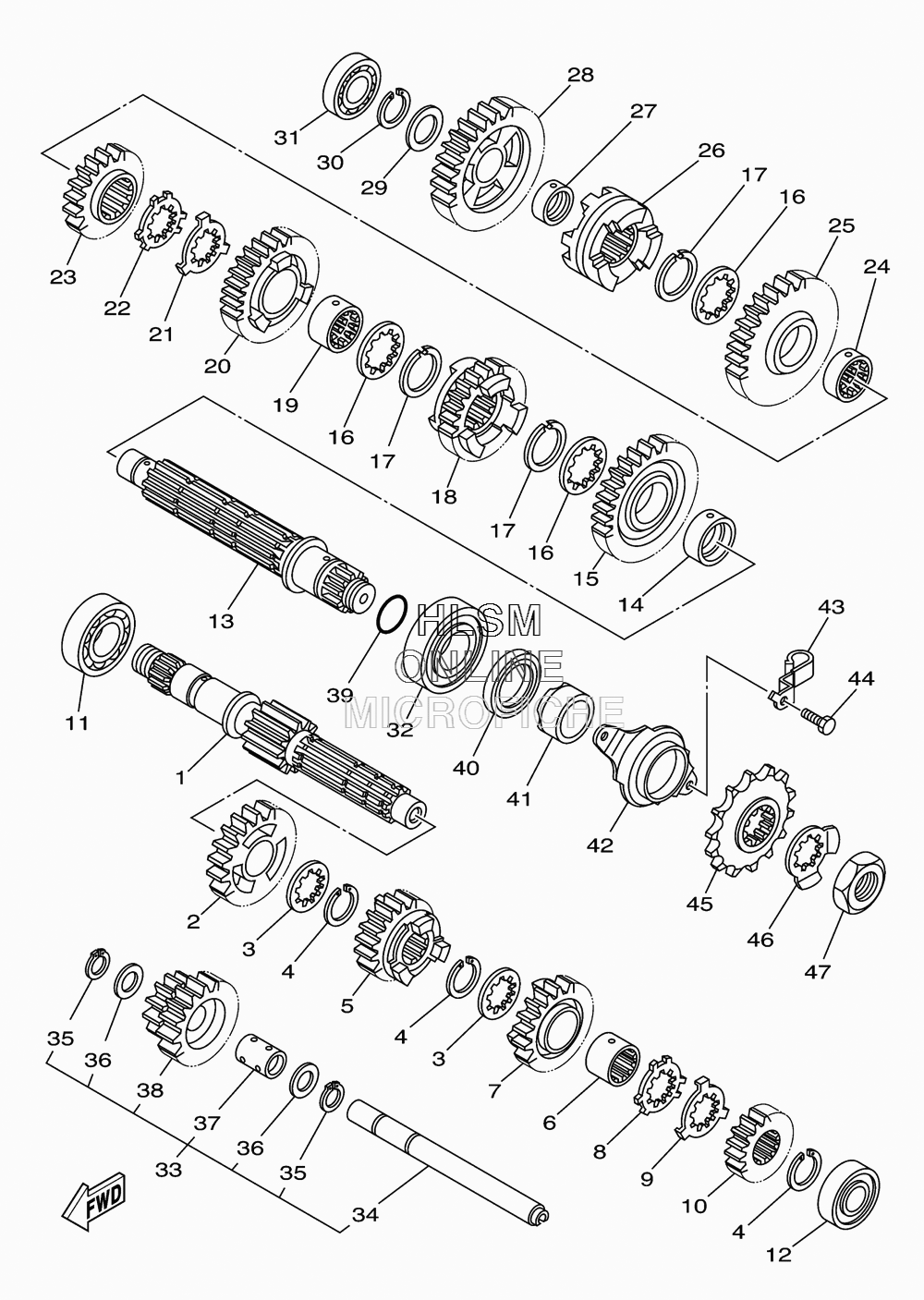

TRANSMISSION для Yamaha RAPTOR 700R SPECIAL EDITION - 2013 года выпуска
-
№АртикулНазвание
-
11S3-17401-00-00 MAIN AXLE ASSYMAIN AXLE ASSY
-
21S3-17151-00-00 GEAR, 5TH PINION (24T)GEAR, 5TH PINION (24T)
-
390209-22008-00 WASHERWASHER
-
493440-25084-00 CIRCLIPCIRCLIP
-
51S3-17131-00-00 GEAR, 3RD PNION (17T)GEAR, 3RD PNION (17T)
-
690387-22006-00 COLLARCOLLAR
-
71S3-17141-00-00 GEAR, 4TH PINION (22T)GEAR, 4TH PINION (22T)
-
890214-22003-00 WASHER, CLAWWASHER, CLAW
-
990214-22002-00 WASHER, CLAWWASHER, CLAW
-
101S3-17121-00-00 GEAR, 2ND PINION (14T)GEAR, 2ND PINION (14T)
-
1193306-20501-00 BEARINGBEARING
-
1293306-00431-00 BEARINGBEARING
-
131S3-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1490387-28008-00 COLLARCOLLAR
-
151S3-17221-00-00 GEAR, 2ND WHEEL (28T)GEAR, 2ND WHEEL (28T)
-
1690209-26008-00 WASHERWASHER
-
1793440-28062-00 CIRCLIPCIRCLIP
-
181S3-17241-00-00 GEAR, 4TH WHEEL (25T)GEAR, 4TH WHEEL (25T)
-
1990387-26005-00 COLLARCOLLAR
-
201PE-17231-00-00 GEAR, 3RD WHEEL (25T)GEAR, 3RD WHEEL (25T)
-
2190214-26002-00 WASHER, CLAWWASHER, CLAW
-
2290214-26003-00 WASHER, CLAWWASHER, CLAW
-
231S3-17251-00-00 GEAR, 5TH WHEEL (22T)GEAR, 5TH WHEEL (22T)
-
2490387-26004-00 COLLARCOLLAR
-
251S3-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
261S3-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
2790387-20021-00 COLLARCOLLAR
-
281S3-17253-00-00 GEAR, REVERSE WHEEL 2 (29T)GEAR, REVERSE WHEEL 2 (29T)
-
2990201-20276-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
3099009-20400-00 CIRCLIPCIRCLIP
-
3193306-00415-00 BEARINGBEARING
-
3293306-27803-00 BEARINGBEARING
-
331S3-17430-00-00 COUNTER AXLE ASSYCOUNTER AXLE ASSY
-
341S3-17432-00-00 ...AXLE, IDLE...AXLE, IDLE
-
3593440-15012-00 ...CIRCLIP...CIRCLIP
-
3690201-152P4-00 ...WASHER, PLATE...WASHER, PLATE
-
3790387-1504G-00 ...COLLAR...COLLAR
-
381S3-17243-00-00 ...GEAR, REVERSE WHEEL 1 (12T/24T)...GEAR, REVERSE WHEEL 1 (12T/24T)
-
3993210-25001-00 O-RINGO-RING
-
4093102-35393-00 OIL SEALOIL SEAL
-
4190387-28009-00 COLLARCOLLAR
-
421S3-17471-00-00 PLATE, COVERPLATE, COVER
-
4390461-10011-00 CLAMPCLAMP
-
4497022-06014-00 BOLTBOLT
-
459383G-14231-00 SPROCKET, DRIVE (14T)SPROCKET, DRIVE (14T)
-
4690215-25003-00 WASHER, LOCKWASHER, LOCK
-
4790179-22011-00 NUTNUT
