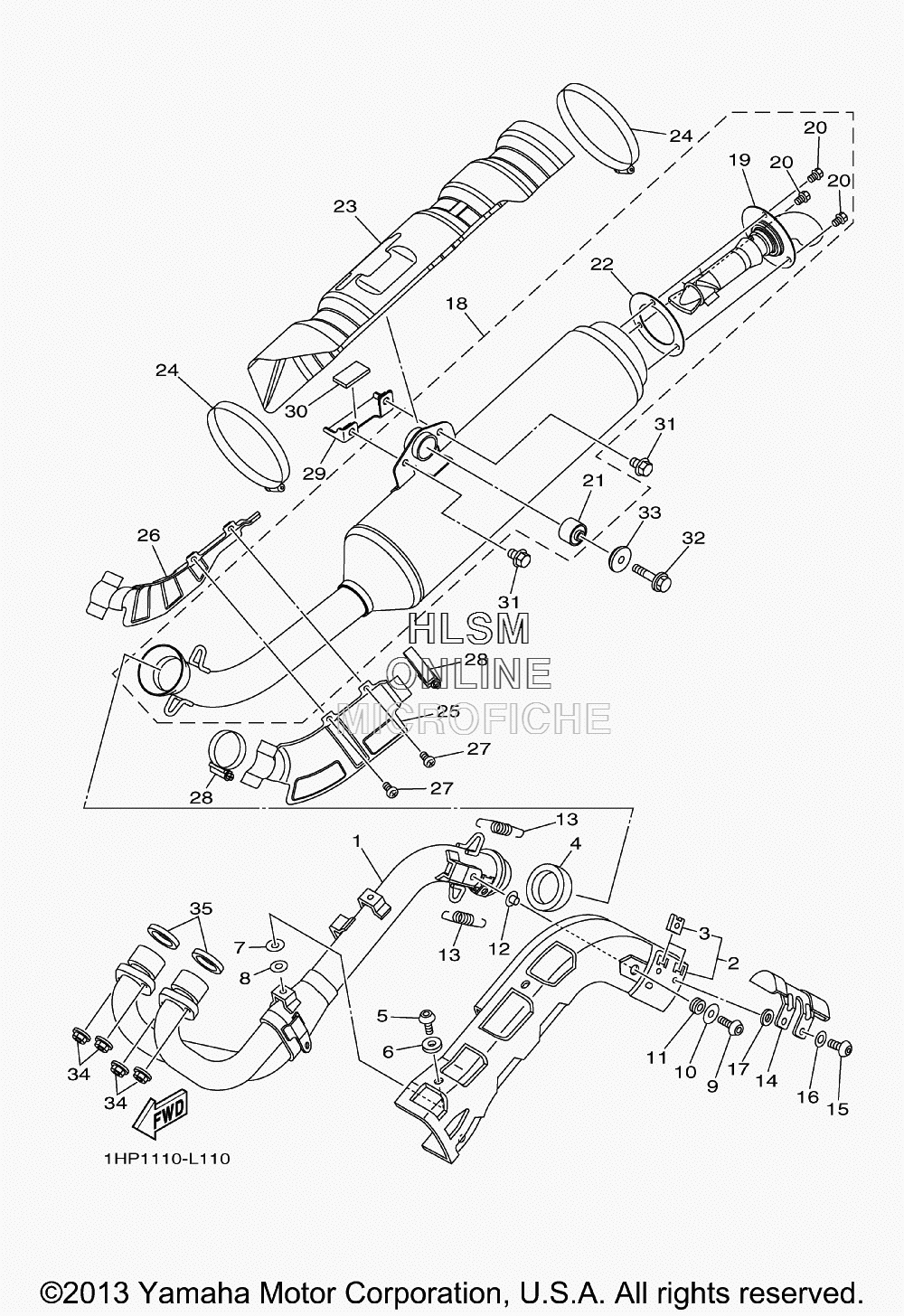

EXHAUST для Yamaha GRIZZLY 550 FI EPS HUNTING - 2014 года выпуска
-
№АртикулНазвание
-
11HP-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
21HP-E4627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
390183-06819-00 ...NUT, SPRING...NUT, SPRING
-
41HP-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
592012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690201-06076-00 WASHER, PLATEWASHER, PLATE
-
790201-06019-00 WASHER, PLATEWASHER, PLATE
-
890201-05825-00 WASHER, PLATEWASHER, PLATE
-
992012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1090201-06081-00 WASHER, PLATEWASHER, PLATE
-
1190480-17001-00 GROMMETGROMMET
-
1290387-08083-00 COLLARCOLLAR
-
1390506-30006-00 SPRING, TENSIONSPRING, TENSION
-
141HP-E4758-00-00 PROTECTOR, SILENCERPROTECTOR, SILENCER
-
1592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1692902-06200-00 WASHERWASHER
-
1790201-05015-00 WASHER, PLATEWASHER, PLATE
-
181HP-E4703-00-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
191HP-E4752-00-00 ...PIPE, OUTLET...PIPE, OUTLET
-
2095022-06008-00 ...BOLT, FLANGE...BOLT, FLANGE
-
211HP-F7414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
221HP-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
231HP-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2490450-99805-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
251HP-E471C-00-00 PROTECTOR ASSY 1PROTECTOR ASSY 1
-
261HP-E472C-00-00 PROTECTOR ASSY., 2PROTECTOR ASSY., 2
-
2798502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2890450-45806-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
291HP-E477U-00-00 STOPPER 1STOPPER 1
-
301HP-E4733-00-00 MAT 1MAT 1
-
3195822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
3295812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
333B4-14759-01-00 WASHERWASHER
-
3495702-08500-00 NUT, FLANGENUT, FLANGE
-
353YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
