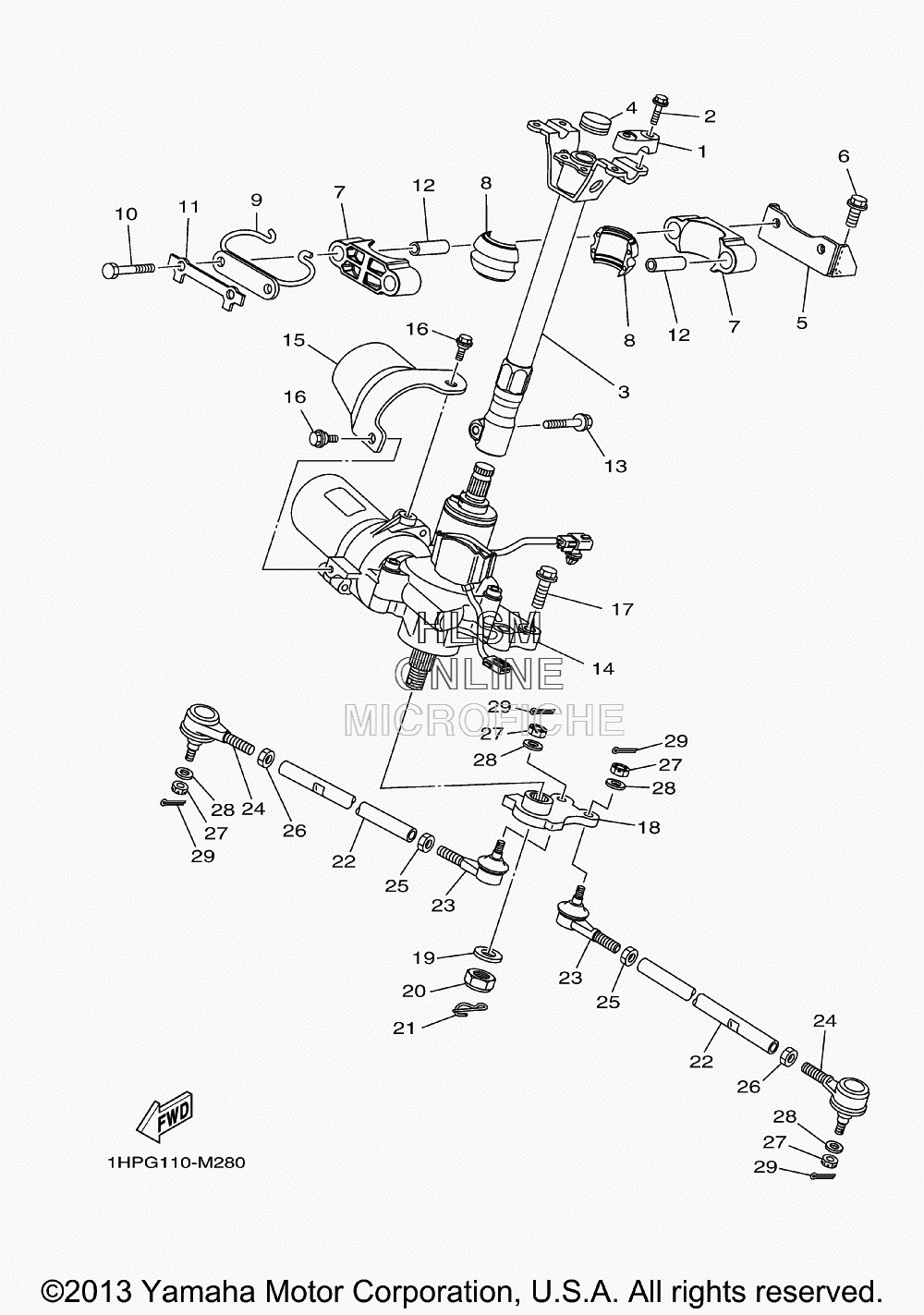

STEERING для Yamaha GRIZZLY 550 FI EPS HUNTING - 2014 года выпуска
-
№АртикулНазвание
-
18K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
295812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
31HP-F3813-10-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
490336-28053-00 PLUG, TAPERPLUG, TAPER
-
51HP-F2517-10-00 SUPT., STRG. COLUMNSUPT., STRG. COLUMN
-
690105-10876-00 BOLT, FLANGEBOLT, FLANGE
-
71CT-F1957-00-00 BRACKET, STEERING 2BRACKET, STEERING 2
-
81CT-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
91CT-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1097012-08080-00 BOLTBOLT
-
111CT-F3894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
121CT-F1545-00-00 COLLAR, 2COLLAR, 2
-
1390109-08843-00 BOLTBOLT
-
143B4-238B0-30-00 POWER STEERING ACTUATOR ASSYPOWER STEERING ACTUATOR ASSY
-
151HP-F38B6-00-00 COVER, MOTORCOVER, MOTOR
-
1690109-06172-00 BOLTBOLT
-
1790105-08153-00 BOLT, FLANGEBOLT, FLANGE
-
181HP-F3816-00-00 ARM, PITMANARM, PITMAN
-
1990201-16021-00 WASHER, PLATEWASHER, PLATE
-
2095612-16100-00 NUT, UNUT, U
-
2191402-20025-00 PIN, COTTERPIN, COTTER
-
225KM-23831-00-00 ROD, TIEROD, TIE
-
231UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
241UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2595302-10700-00 NUTNUT
-
2690170-10010-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2790171-10001-00 NUT, CASTLENUT, CASTLE
-
2890209-10229-00 WASHER SPEC'L SHAPEWASHER SPEC'L SHAPE
-
2991401-20020-00 PIN, COTTERPIN, COTTER
