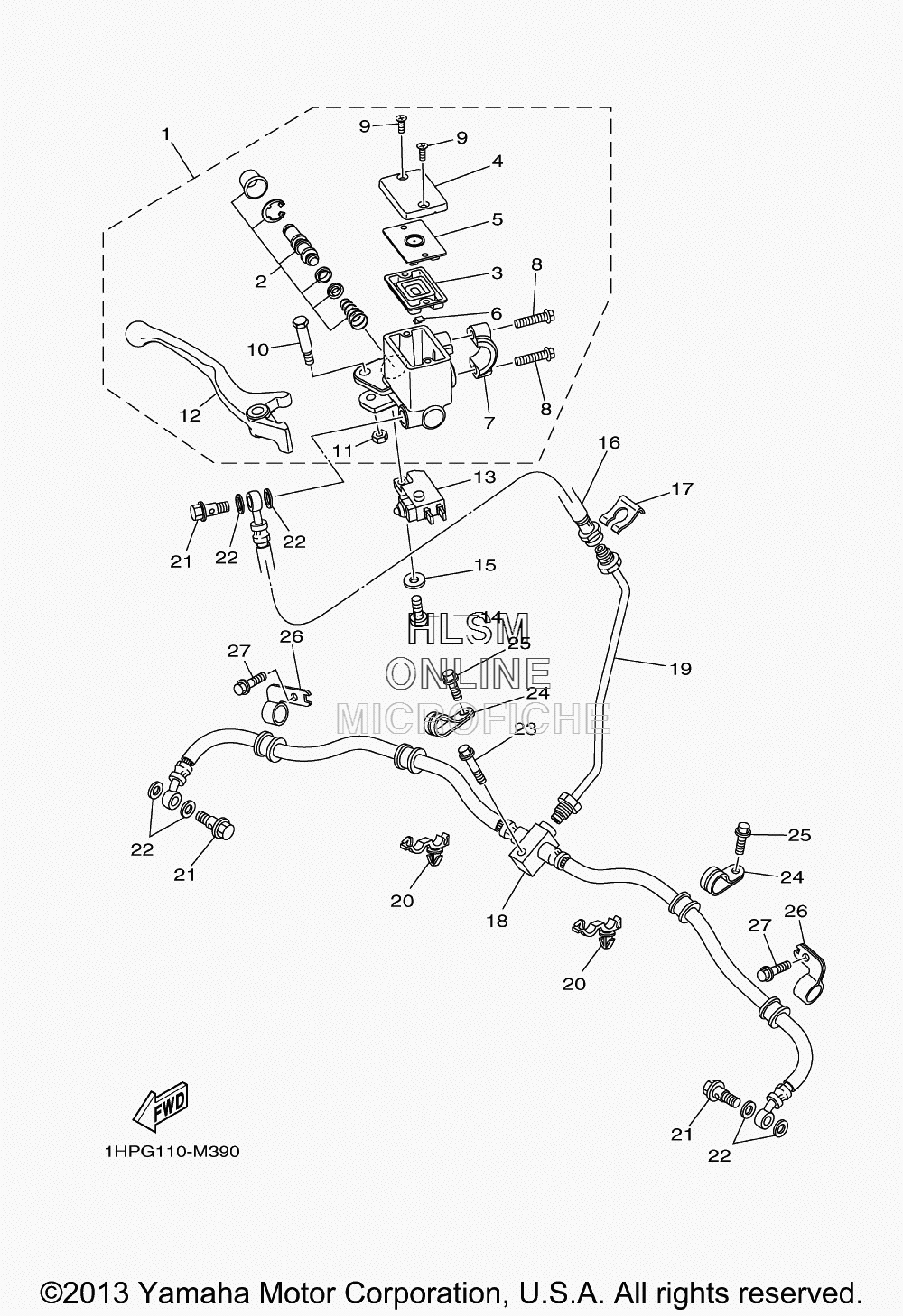

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 700 FI EPS - 2014 года выпуска
-
№АртикулНазвание
-
11HP-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
21PE-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31HP-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
41HP-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
51HP-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
61HP-25889-00-00 ...SEPARATOR...SEPARATOR
-
71HP-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
81HP-26332-00-00 ...BOLT...BOLT
-
998702-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
101HP-2589F-10-00 ...BOLT, LEVER...BOLT, LEVER
-
1195702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
121HP-83922-00-00 ...LEVER 2...LEVER 2
-
131HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1498502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
161HP-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
172GU-25866-00-00 CIRCLIPCIRCLIP
-
182BG-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
191HP-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
2090464-20010-00 CLAMPCLAMP
-
2190401-10015-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
2395812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
243B4-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2595812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
263B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2795812-06012-00 BOLT, FLANGEBOLT, FLANGE
