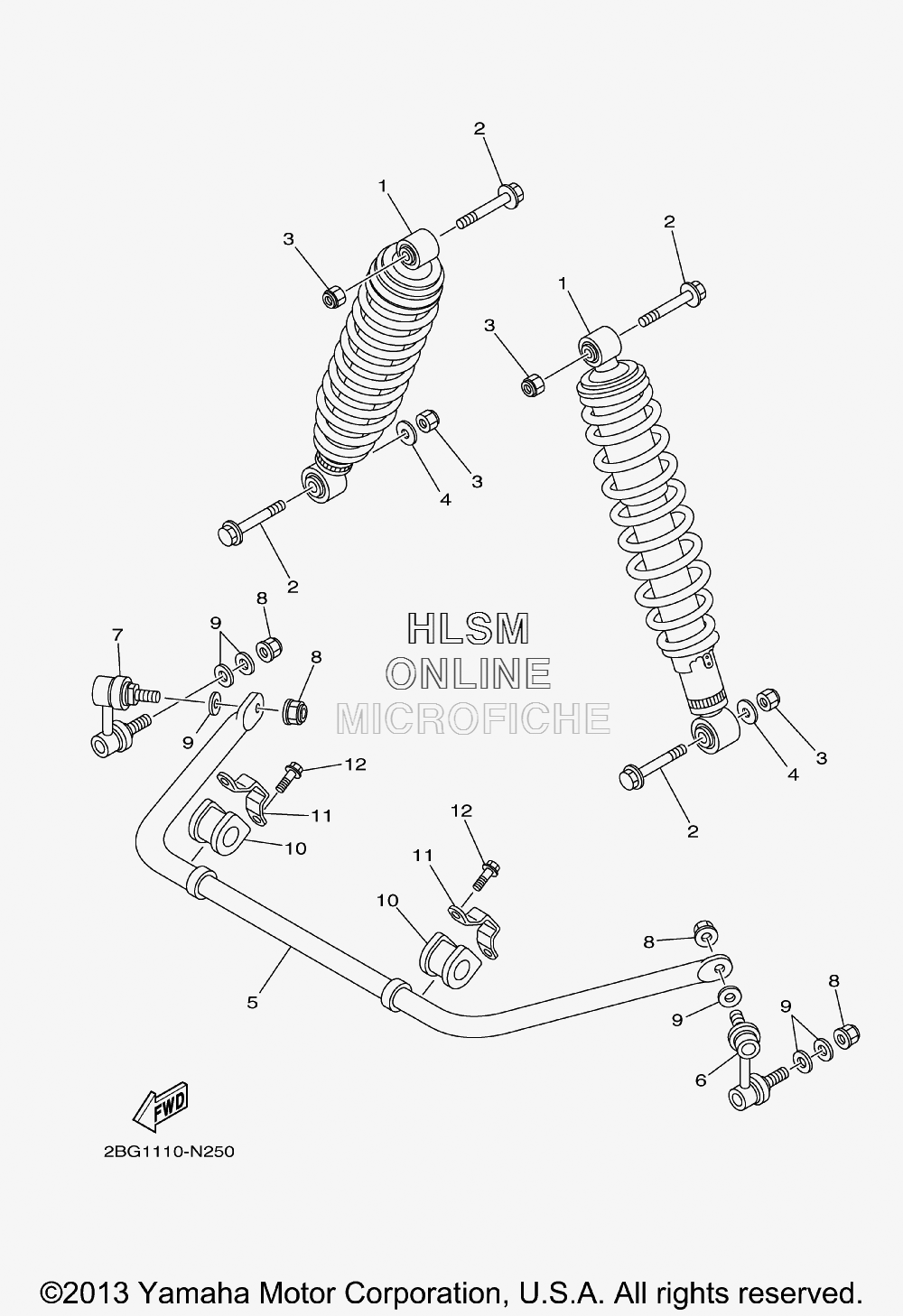

SUSPENSION - REAR SHOCK ABSORBER для Yamaha GRIZZLY 700 FI EPS - 2014 года выпуска
-
№АртикулНазвание
-
12BG-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490201-10035-00 WASHER, PLATEWASHER, PLATE
-
51HP-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
616B-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
716B-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-10035-00 WASHER, PLATEWASHER, PLATE
-
101HP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
111HP-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1295812-08014-00 BOLT, FLANGEBOLT, FLANGE
