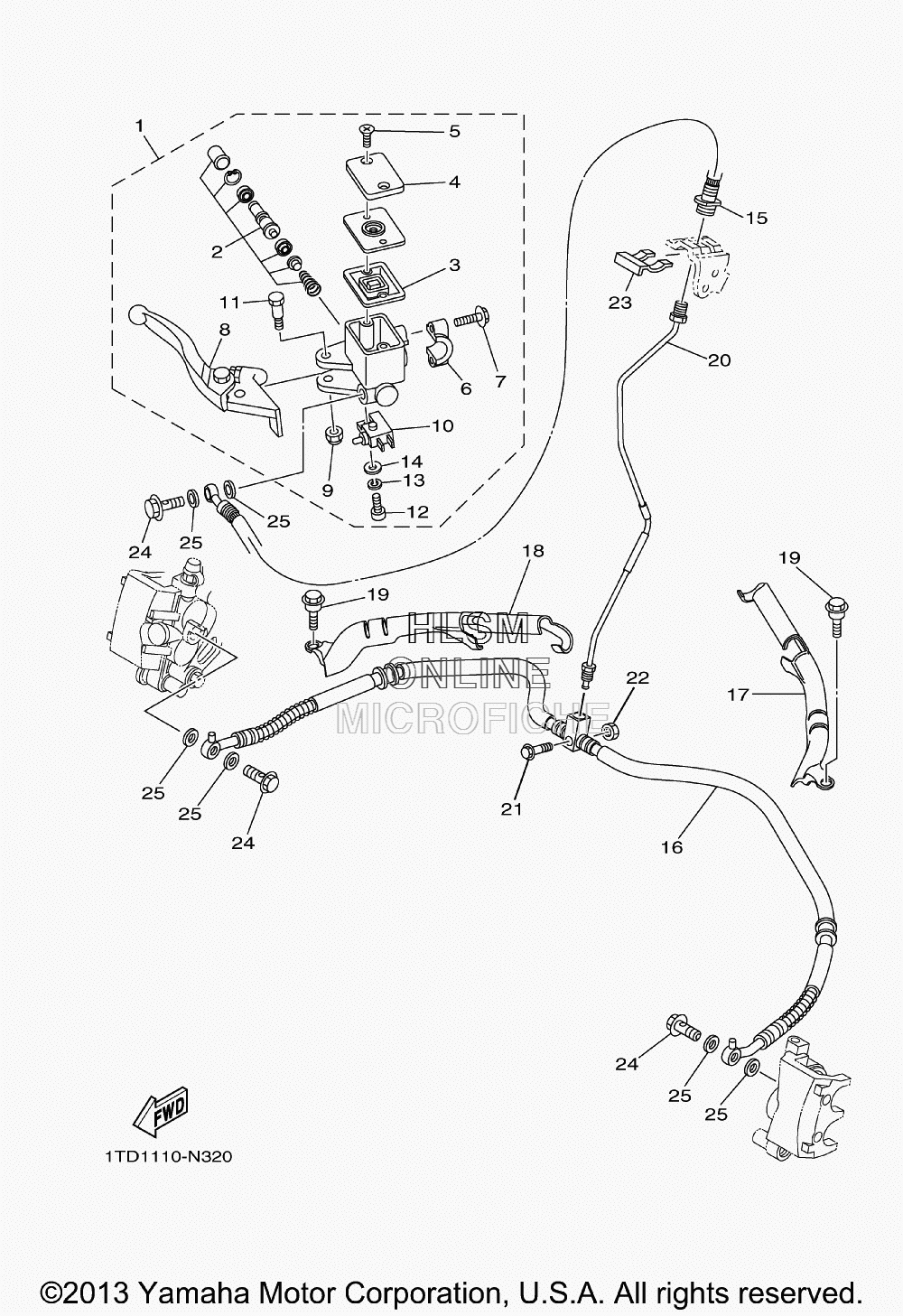

BRAKE - FRONT MASTER CYLINDER для Yamaha YFZ 450R (PURP BLUE/YELLOW-RED) - 2014 года выпуска
-
№АртикулНазвание
-
15D3-2583T-02-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34TT-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45YU-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598702-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65MV-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
85D3-83922-01-00 ...LEVER 2...LEVER 2
-
995701-06500-00 ...NUT, WITH WASHER...NUT, WITH WASHER
-
105D3-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
113B4-2589F-30-00 ...BOLT, LEVER...BOLT, LEVER
-
1298502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1392902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1492902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
151TD-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
161TD-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
1718P-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1818P-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1990109-06264-00 BOLTBOLT
-
201TD-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
2195822-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2295312-06600-00 NUTNUT
-
232GU-25866-00-00 CIRCLIPCIRCLIP
-
2490401-10015-00 BOLT, UNIONBOLT, UNION
-
2590201-10118-00 WASHER, PLATEWASHER, PLATE
