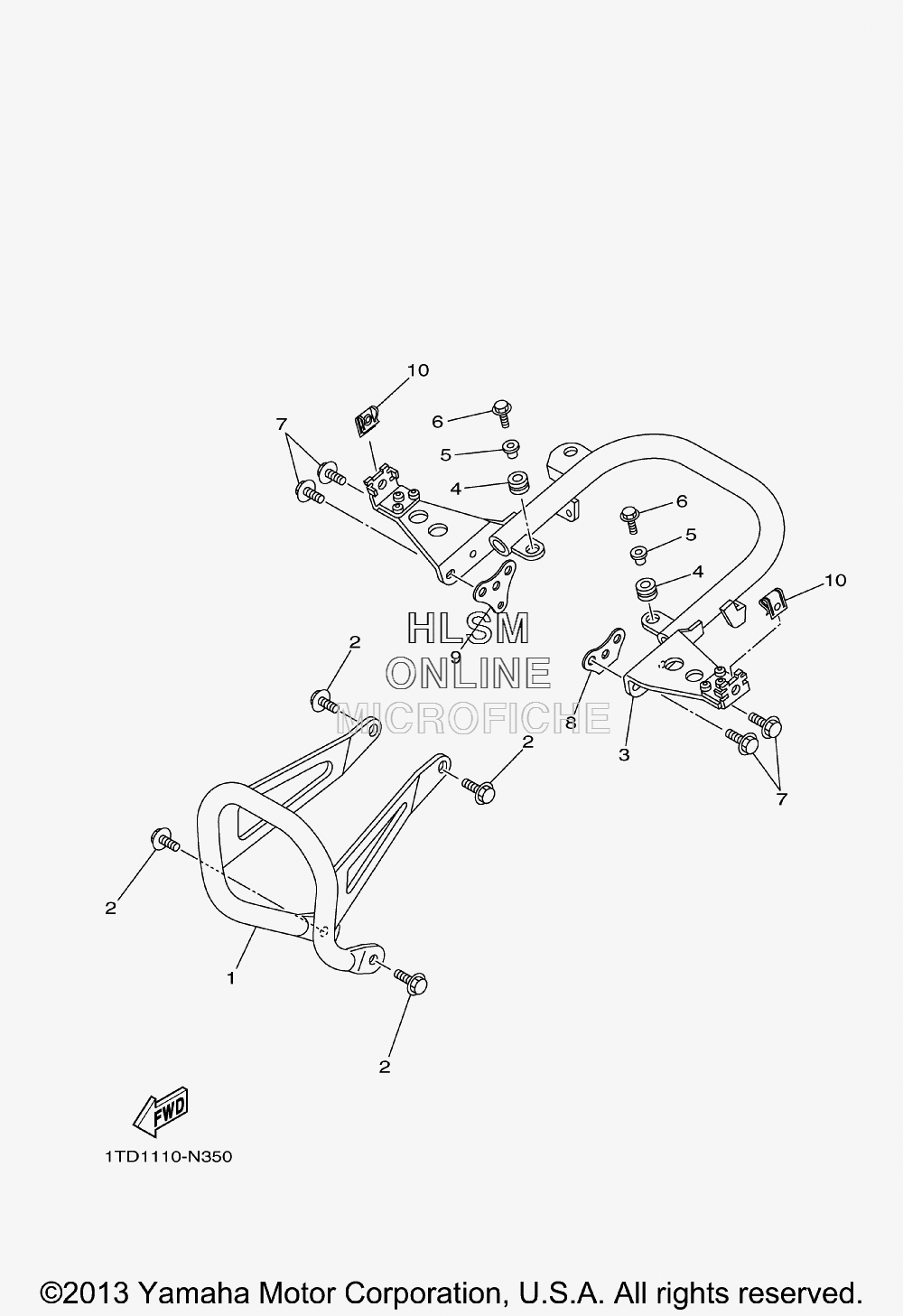

RACK AND BUMPER для Yamaha YFZ 450R (PURP BLUE/YELLOW-RED) - 2014 года выпуска
-
№АртикулНазвание
-
118P-2845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
318P-2845R-10-00 BAR, CARRY REARBAR, CARRY REAR
-
490480-10289-00 GROMMETGROMMET
-
590387-06063-00 COLLARCOLLAR
-
695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
795812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
85TG-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
918P-28215-00-00 WASHER, SPECIALWASHER, SPECIAL
-
104XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- • RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SIDE COVER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
