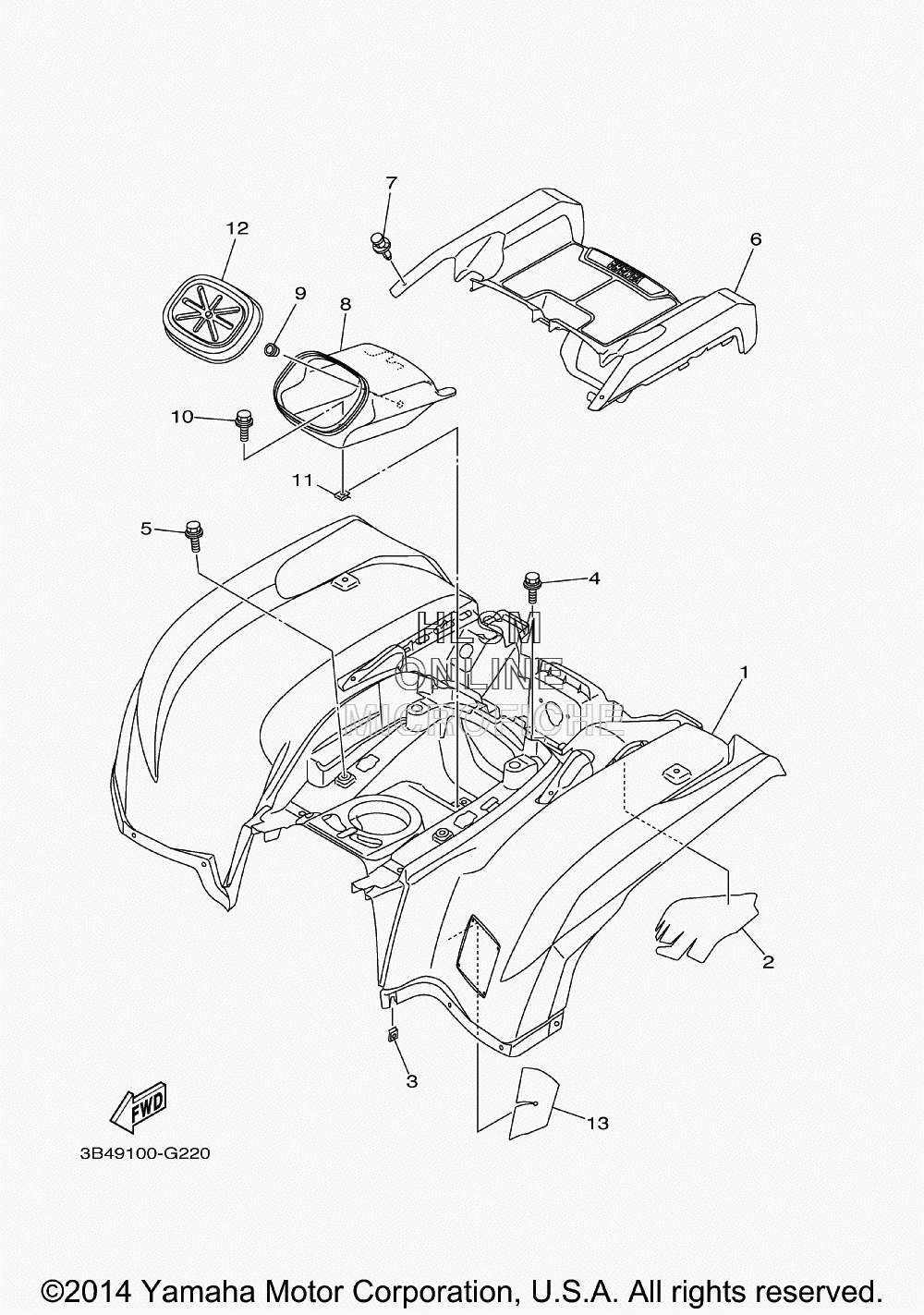

FENDER - REAR для Yamaha GRIZZLY 700 FI EPS HUNTING - 2015 года выпуска
-
№АртикулНазвание
-
11HP-F1600-50-00 REAR FENDER ASSY.REAR FENDER ASSY.
-
23B4-21652-01-00 PROTECTORPROTECTOR
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
61HP-F1651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
790269-07010-00 RIVETRIVET
-
81HP-F160E-00-00 BOXBOX
-
990338-09130-00 PLUGPLUG
-
1090119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
121HP-F160F-00-00 LIDLID
-
131HP-F1669-00-00 SEALSEAL
