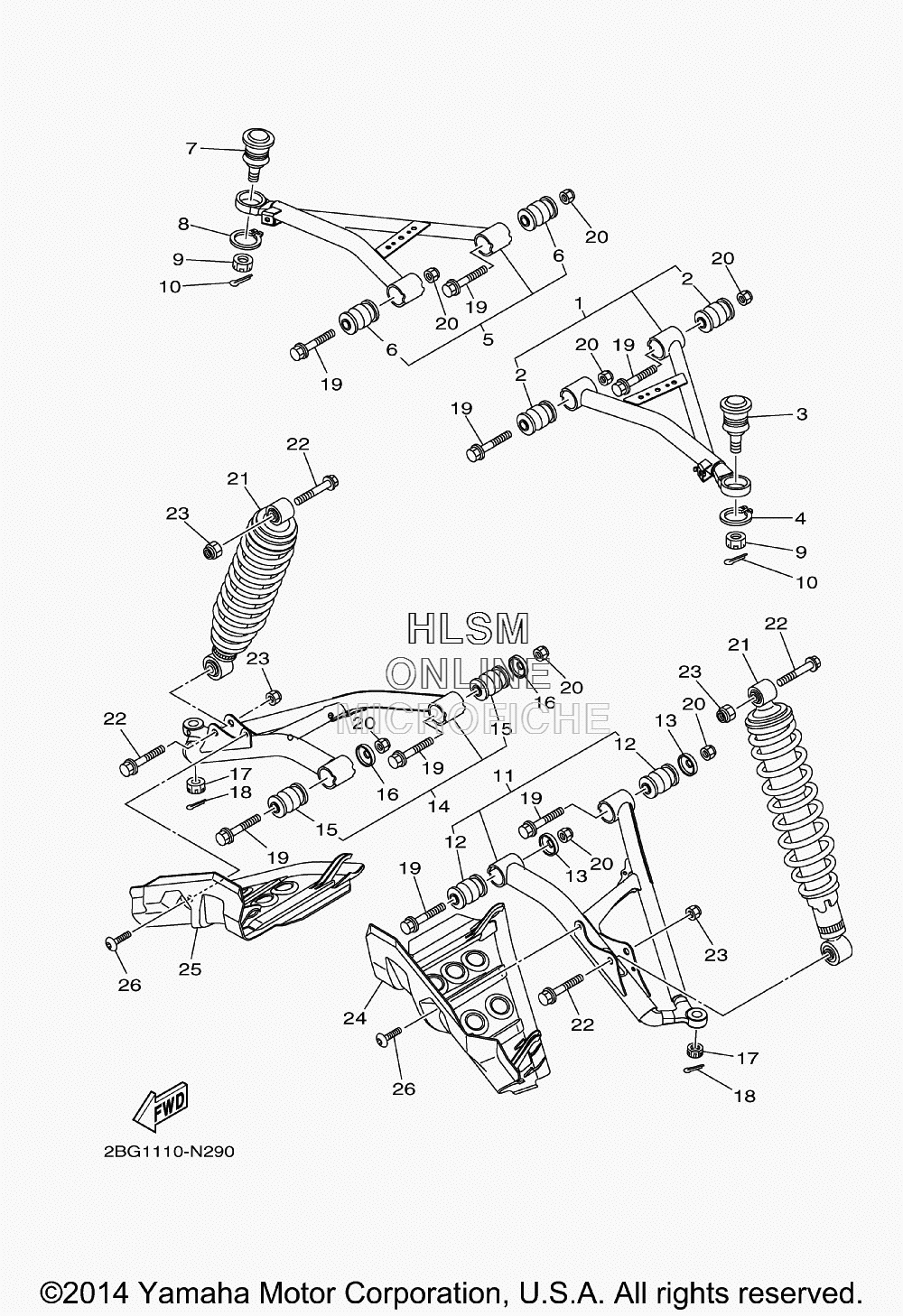

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 700 FI EPS HUNTING - 2015 года выпуска
-
№АртикулНазвание
-
12BG-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
33B4-23579-01-00 BALL JOINT 2BALL JOINT 2
-
499009-30400-00 CIRCLIPCIRCLIP
-
52BG-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
73B4-23579-01-00 BALL JOINT 2BALL JOINT 2
-
899009-30400-00 CIRCLIPCIRCLIP
-
990171-12001-00 NUT, CASTLENUT, CASTLE
-
1091490-25020-00 PIN. COTTERPIN. COTTER
-
112BG-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
121HP-F3526-00-00 ...BUSH...BUSH
-
135KM-22149-10-00 WASHERWASHER
-
142BG-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
151HP-F3526-00-00 ...BUSH...BUSH
-
165KM-22149-10-00 WASHERWASHER
-
1790171-12001-00 NUT, CASTLENUT, CASTLE
-
1891490-25020-00 PIN. COTTERPIN. COTTER
-
1990105-10222-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
212BG-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
2290105-10131-00 BOLT, FLANGEBOLT, FLANGE
-
2390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
242BG-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
252BG-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2690109-06264-00 BOLTBOLT
