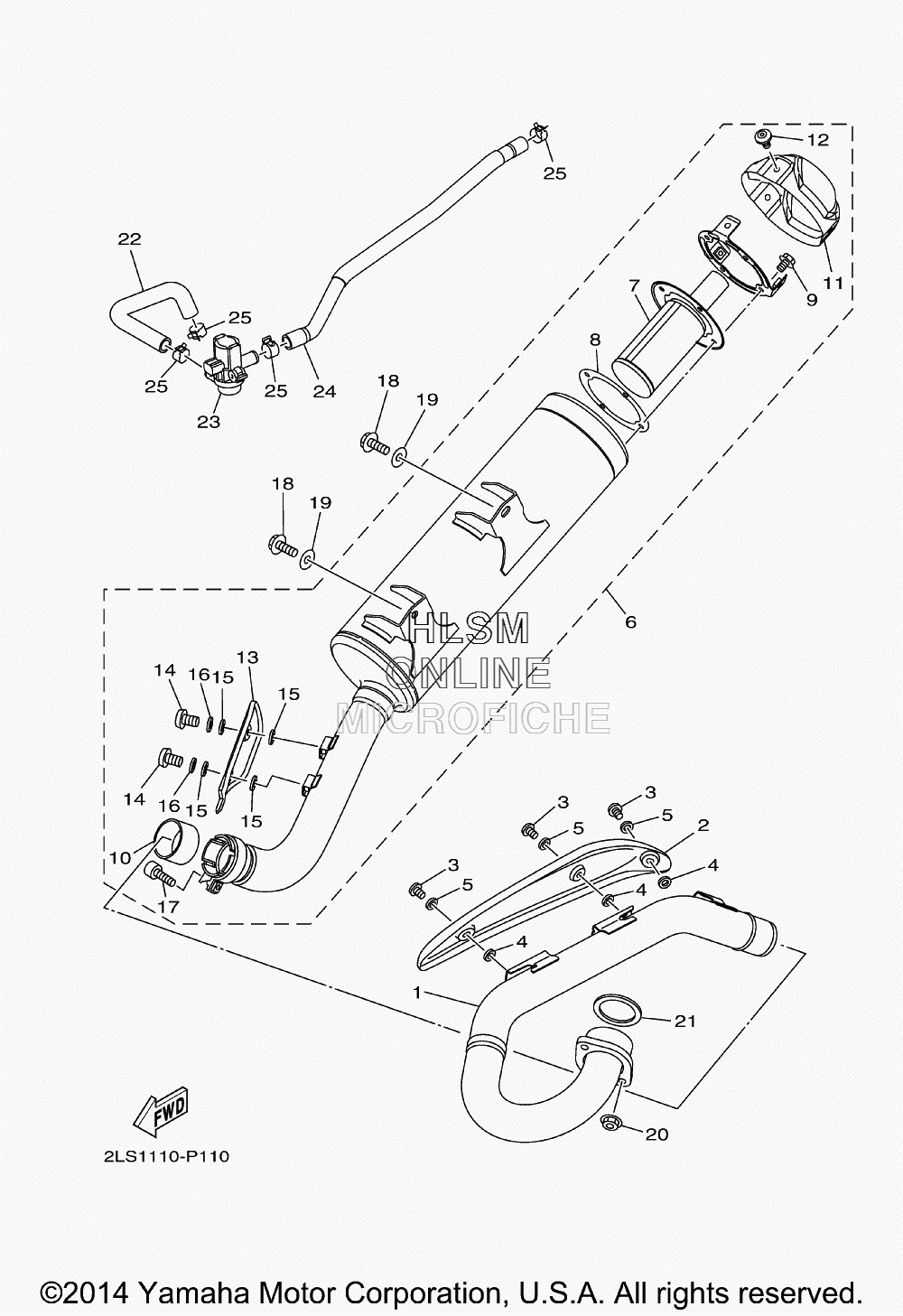

EXHAUST для Yamaha RAPTOR 700R SE - 2015 года выпуска
-
№АртикулНазвание
-
12LS-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
22LS-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
398980-06010-00 SCREW, BINDSCREW, BIND
-
490201-05019-00 WASHER, PLATEWASHER, PLATE
-
590201-05037-00 WASHER, PLATEWASHER, PLATE
-
62LS-E4710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
72LS-E4780-00-00 ...SPARK ARRESTER ASSY...SPARK ARRESTER ASSY
-
82BG-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
995022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
102LS-E4714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
111TD-E4787-00-00 ...CAP, SILENCER...CAP, SILENCER
-
1290149-06298-00 ...SCREW...SCREW
-
132LS-E4728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
1498902-06010-00 ...SCREW, BIND...SCREW, BIND
-
1590201-05017-00 ...WASHER, PLATE...WASHER, PLATE
-
1692902-06200-00 ...WASHER...WASHER
-
1791314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1890105-08142-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-08048-00 WASHER, PLATEWASHER, PLATE
-
2095702-08500-00 NUT, FLANGENUT, FLANGE
-
213EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
222LS-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
231TD-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
242LS-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2590467-17089-00 CLIPCLIP
