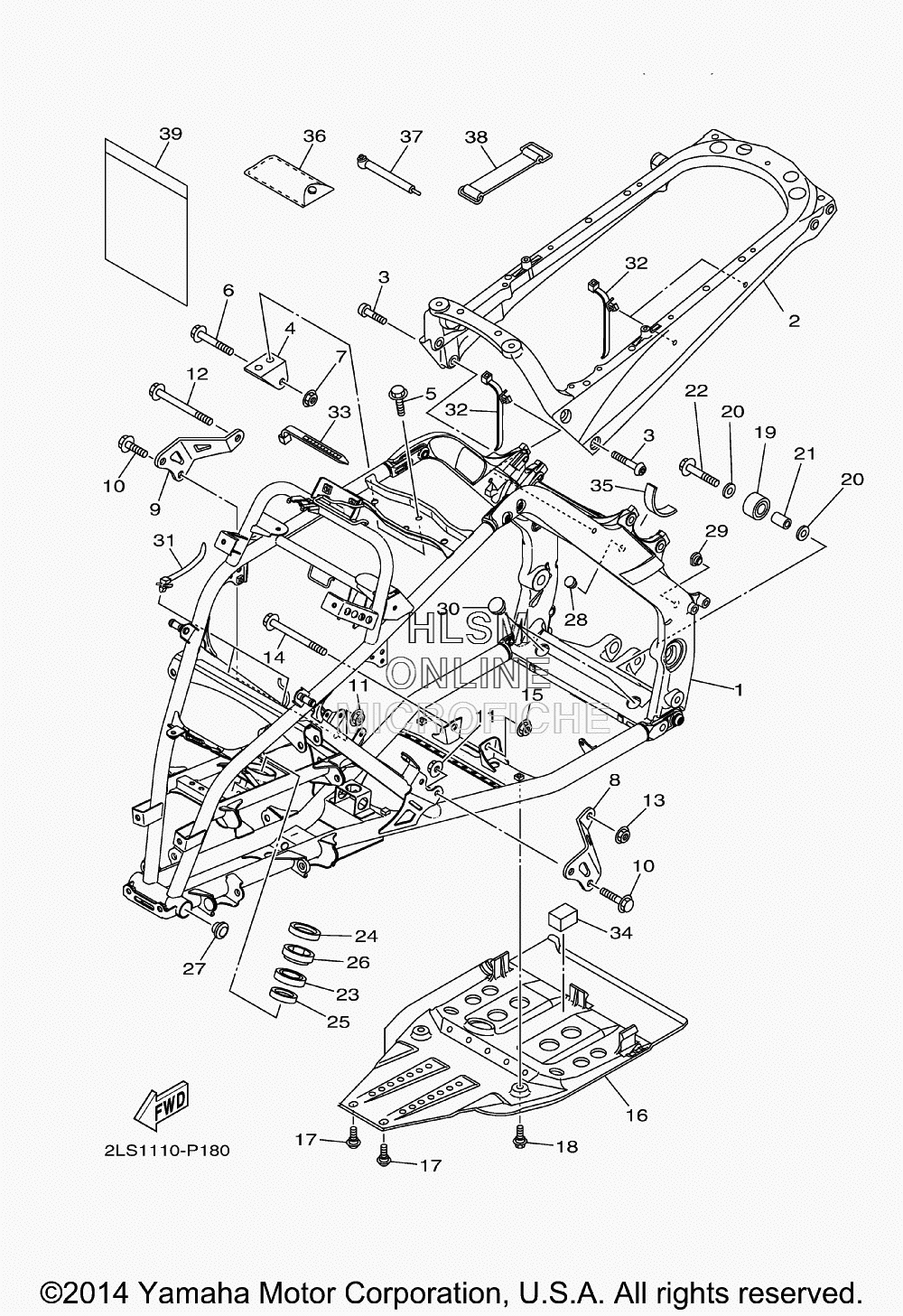

FRAME для Yamaha RAPTOR 700R SE - 2015 года выпуска
-
№АртикулНазвание
-
12LS-F1101-09-00 FRONT FRAME COMP. (FOR DPBSE - PURPLISH BLUE)FRONT FRAME COMP. (FOR DPBSE - PURPLISH BLUE)
-
12LS-F1101-19-00 FRONT FRAME COMP. (FOR YB - YAMAHA BLACK)FRONT FRAME COMP. (FOR YB - YAMAHA BLACK)
-
22LS-F1190-19-00 REAR FRAME COMP. (FOR YB - YAMAHA BLACK)REAR FRAME COMP. (FOR YB - YAMAHA BLACK)
-
22LS-F1190-09-00 REAR FRAME COMP. (FOR DPBSE - PURPLISH BLUE)REAR FRAME COMP. (FOR DPBSE - PURPLISH BLUE)
-
390149-10034-00 SCREWSCREW
-
41S3-21315-10-00 STAY, ENGINE 1STAY, ENGINE 1
-
590105-08142-00 BOLT, FLANGEBOLT, FLANGE
-
695812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
81S3-21316-10-00 STAY, ENGINE 2STAY, ENGINE 2
-
91S3-21317-10-00 STAY, ENGINE 3STAY, ENGINE 3
-
1090105-08142-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-08674-00 NUTNUT
-
1295812-10110-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1495812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
161PE-F1471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
1790109-06201-00 BOLTBOLT
-
1890109-06172-00 BOLTBOLT
-
194D3-22178-00-00 TENSIONERTENSIONER
-
2090201-08053-00 WASHER, PLATEWASHER, PLATE
-
2190380-08136-00 BUSH, SOLIDBUSH, SOLID
-
2295812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
2393306-20352-00 BEARINGBEARING
-
2493102-25081-00 OIL SEALOIL SEAL
-
2593102-25099-00 OIL SEALOIL SEAL
-
265GT-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2790338-26004-00 PLUGPLUG
-
2890338-24260-00 PLUGPLUG
-
2990338-20183-00 PLUGPLUG
-
3090338-23004-00 PLUGPLUG
-
315B4-F1338-00-00 CLAMPCLAMP
-
3290464-20213-00 CLAMPCLAMP
-
3390464-12045-00 CLAMPCLAMP
-
341S3-2140A-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
351JK-21639-00-00 DAMPER 2DAMPER 2
-
361PE-F8100-01-00 TOOL KITTOOL KIT
-
371NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
38116-82131-00-00 BAND, BATTERYBAND, BATTERY
-
391P0-F8186-01-00 POUCHPOUCH
