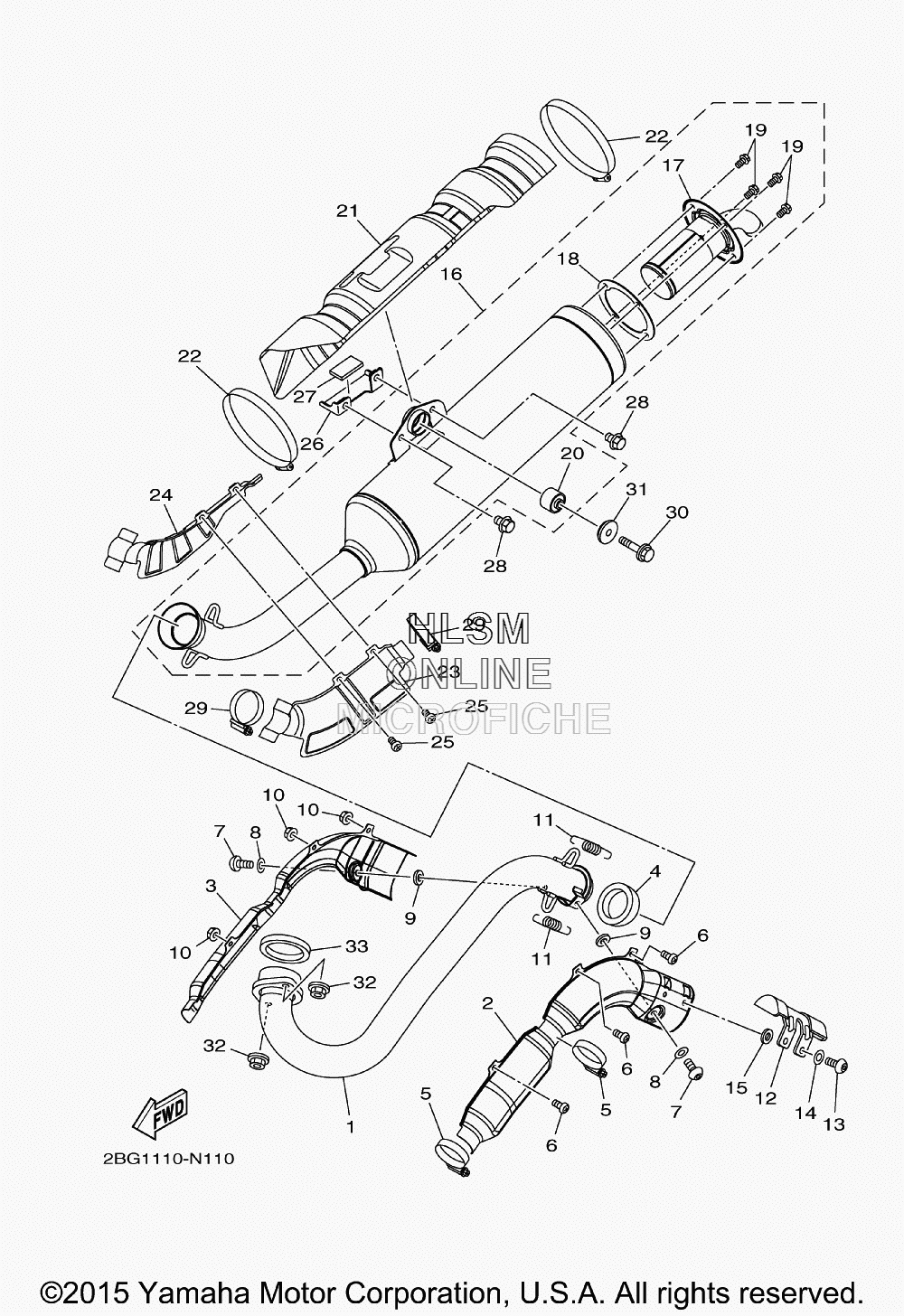

EXHAUST для Yamaha KODIAK 700 4WD HUNTER - 2016 года выпуска
-
№АртикулНазвание
-
12BG-E4611-01-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
22BG-E4627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
3B16-E463B-00-00 PROTECTOR, EXHAUST PIPE 2PROTECTOR, EXHAUST PIPE 2
-
41HP-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
590450-45806-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
698502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
892902-06200-00 WASHERWASHER
-
990201-05037-00 WASHER, PLATEWASHER, PLATE
-
1095702-06500-00 NUT, FLANGENUT, FLANGE
-
1190506-30006-00 SPRING, TENSIONSPRING, TENSION
-
121HP-E4758-00-00 PROTECTOR, SILENCERPROTECTOR, SILENCER
-
1392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1492902-06200-00 WASHERWASHER
-
1590201-05015-00 WASHER, PLATEWASHER, PLATE
-
16B16-E4703-00-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
172BG-E4780-00-00 ...SPARK ARRESTER ASSY...SPARK ARRESTER ASSY
-
182BG-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
1995022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
201HP-F7414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
211HP-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
2290450-99805-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
231HP-E471C-00-00 PROTECTOR ASSY 1PROTECTOR ASSY 1
-
241HP-E472C-00-00 PROTECTOR ASSY., 2PROTECTOR ASSY., 2
-
2598502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
261HP-E477U-00-00 STOPPER 1STOPPER 1
-
271HP-E4733-00-00 MAT 1MAT 1
-
2895822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2990450-45806-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3095812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
313B4-14759-01-00 WASHERWASHER
-
3295702-08500-00 NUT, FLANGENUT, FLANGE
-
333EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
