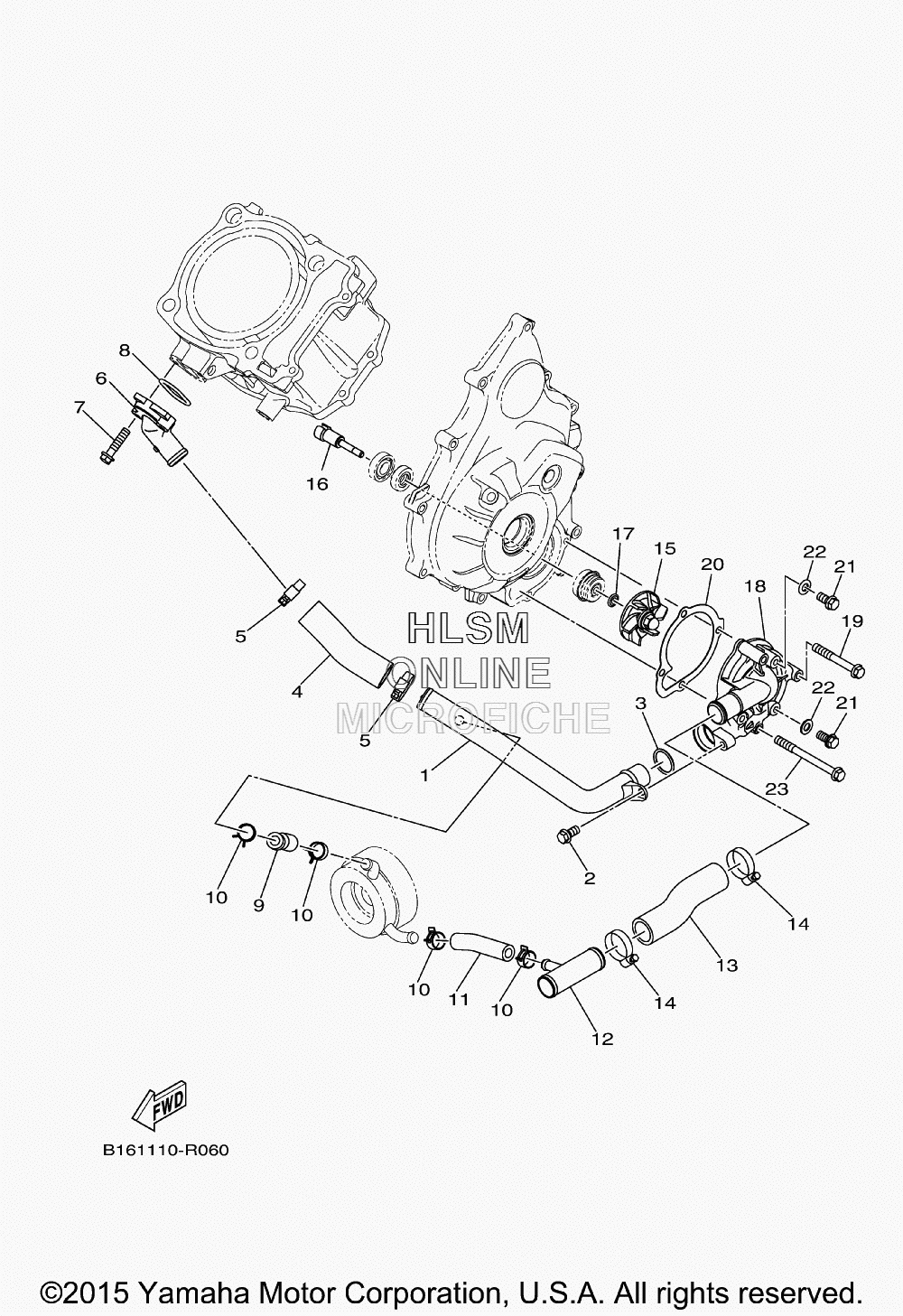

WATER PUMP ASSY для Yamaha KODIAK 700 4WD HUNTER - 2016 года выпуска
-
№АртикулНазвание
-
1B16-E2481-00-00 PIPE 1PIPE 1
-
22MB-E5481-60-00 BOLT 1BOLT 1
-
32MB-E2439-00-00 O-RINGO-RING
-
4B16-E243F-00-00 HOSE,3HOSE,3
-
52MB-E1387-00-00 CLAMP, HOSE 1CLAMP, HOSE 1
-
62MB-E2469-00-00 JOINT 1JOINT 1
-
72MB-E5481-20-00 BOLT 1BOLT 1
-
82MB-E2843-00-00 O-RINGO-RING
-
9B16-E244G-00-00 HOSE, 4HOSE, 4
-
10B16-E2486-00-00 CLIPCLIP
-
11B16-E243E-00-00 HOSE 2HOSE 2
-
12B16-E2484-00-00 PIPE 4PIPE 4
-
13B16-E244J-00-00 HOSE 6HOSE 6
-
142MB-E1387-00-00 CLAMP, HOSE 1CLAMP, HOSE 1
-
152MB-E2451-00-00 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
162MB-E2458-00-00 SHAFT, IMPELLERSHAFT, IMPELLER
-
172MB-E243M-00-00 SEAL, WATER PUMPSEAL, WATER PUMP
-
18B16-E2422-00-00 COVER, HOUSINGCOVER, HOUSING
-
192MB-E5481-B0-00 BOLT 1BOLT 1
-
202MB-E2428-00-00 GASKET, HOUSING COVER 2GASKET, HOUSING COVER 2
-
212MB-E5481-60-00 BOLT 1BOLT 1
-
222MB-E2435-00-00 GASKETGASKET
-
232MB-E5481-70-00 BOLT 1BOLT 1
