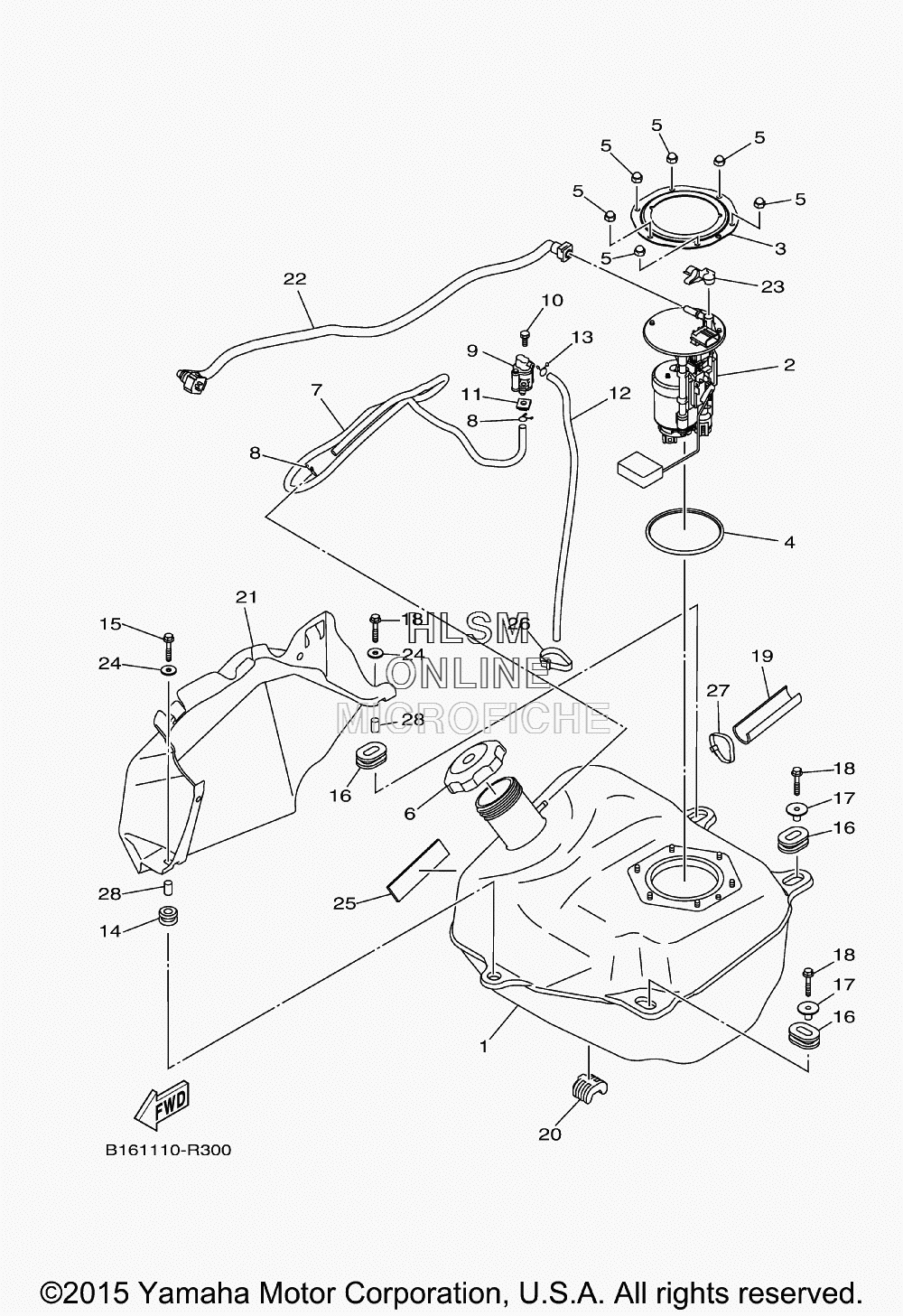

FUEL TANK для Yamaha KODIAK 700 EPS 4WD SE - 2016 года выпуска
-
№АртикулНазвание
-
1B16-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
2B16-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
33B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
41S3-24486-00-00 O-RINGO-RING
-
595302-06800-00 NUT, CROWNNUT, CROWN
-
62P5-24610-00-00 CAP ASSYCAP ASSY
-
790445-09829-00 HOSE (L1030)HOSE (L1030)
-
890467-09006-00 CLIPCLIP
-
928P-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
1097002-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1190183-061A3-00 NUT, SPRINGNUT, SPRING
-
1290445-09828-00 HOSE (L470)HOSE (L470)
-
1390467-09006-00 CLIPCLIP
-
1490480-18290-00 GROMMETGROMMET
-
1595802-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1690480-01400-00 GROMMETGROMMET
-
1790387-07021-00 COLLARCOLLAR
-
1895802-06035-00 BOLT, FLANGEBOLT, FLANGE
-
19B16-F4182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
20B16-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
21B16-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
22B16-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2390464-14004-00 CLAMPCLAMP
-
2490201-06036-00 WASHER, PLATEWASHER, PLATE
-
252PA-21541-00-00 DAMPER 1DAMPER 1
-
2690464-25003-00 CLAMPCLAMP
-
2790464-32801-00 CLAMPCLAMP
-
2890387-06M19-00 COLLARCOLLAR
