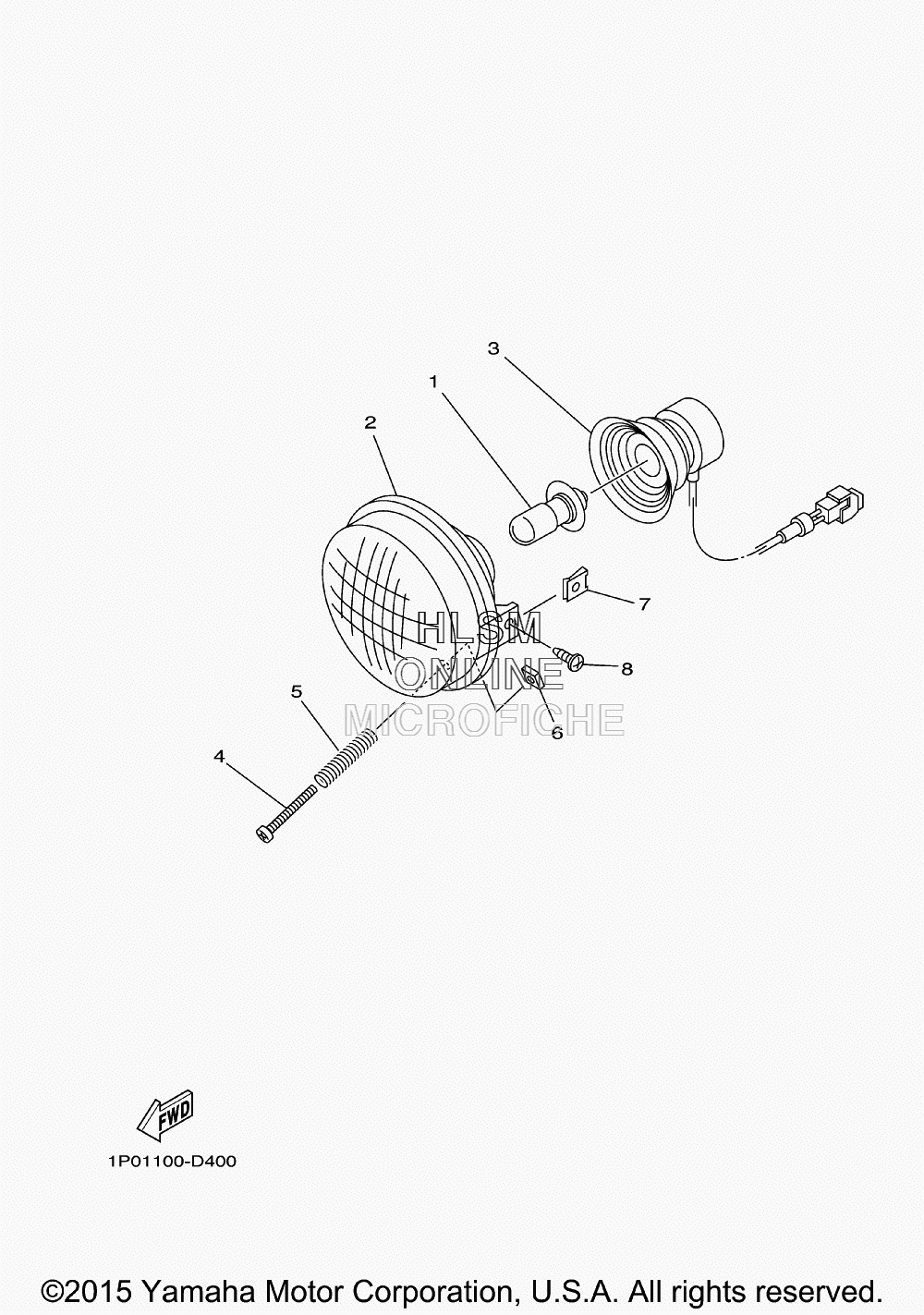

HEADLIGHT для Yamaha KODIAK 700 EPS 4WD SE - 2016 года выпуска
-
№АртикулНазвание
-
14KB-84314-01-00 BULB (12V-30/30W)BULB (12V-30/30W)
-
25KM-84320-01-00 LENS ASSYLENS ASSY
-
35EH-84340-00-00 SOCKET CORD ASSY 1SOCKET CORD ASSY 1
-
498502-03540-00 SCREW, PAN HEADSCREW, PAN HEAD
-
52GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
62GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
790183-05008-00 NUT, SPRINGNUT, SPRING
-
898902-05016-00 SCREW, BINDSCREW, BIND
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- • HEADLIGHT
- HEADLIGHT W/ METER ASSY.
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT LEFT SIDE W/ AXLE ASSY
- WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY
- WHEEL - REAR LEFT SIDE W/ AXLE ASSY
- WHEEL - REAR RIGHT SIDE W/ AXLE ASSY
