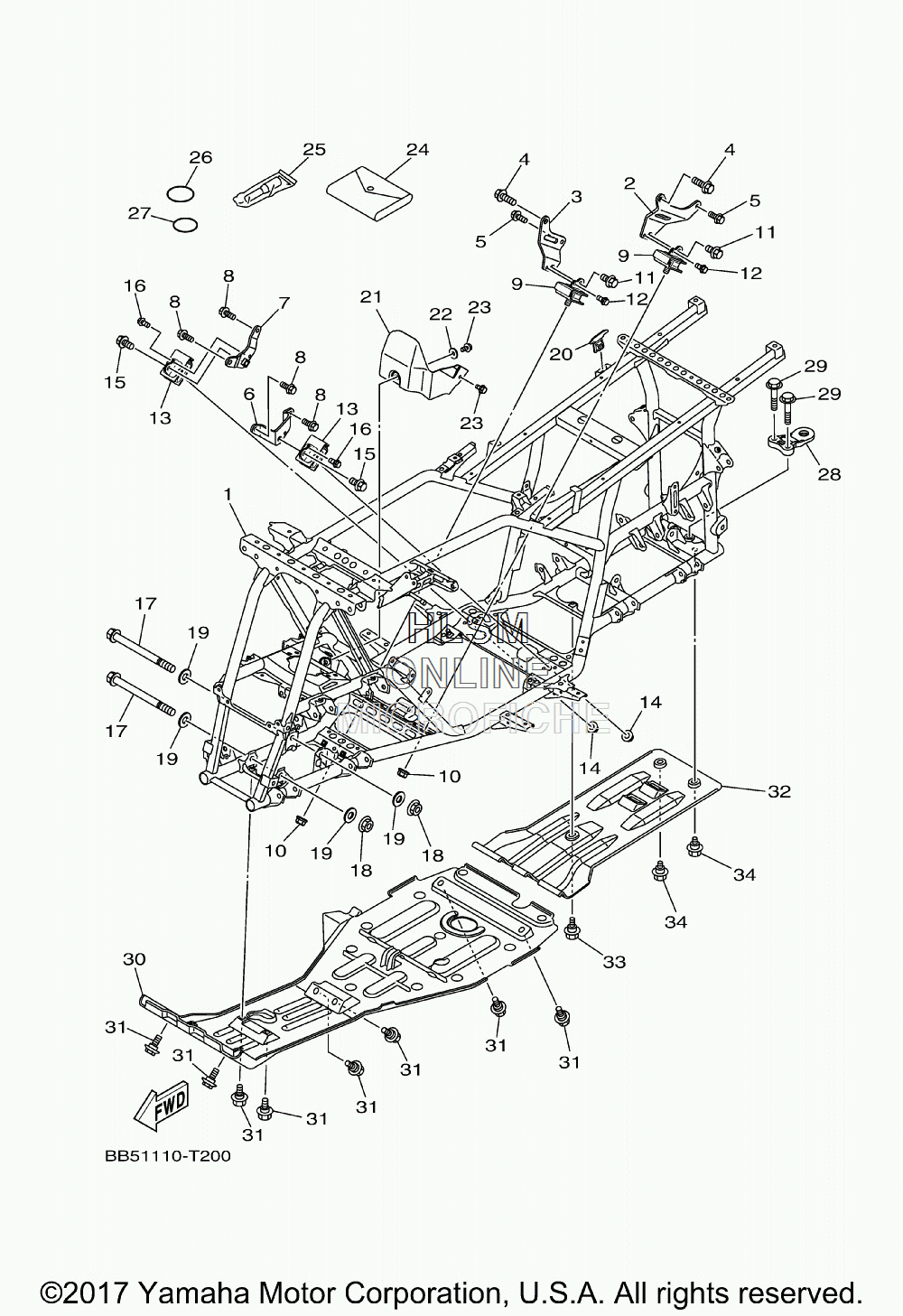

FRAME для Yamaha KODIAK 450 EPS (DEEP GREEN) - 2018 года выпуска
-
№АртикулНазвание
-
1BB5-F1110-00-00 FRAME COMP.FRAME COMP.
-
2BB5-F1315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
3BB5-F1316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
495812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
595812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
6BB5-F1317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
7BB5-F1318-00-00 STAY, ENGINE 4STAY, ENGINE 4
-
895812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
93B4-21485-01-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
1090185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1195812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1295022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
133B4-21485-01-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
1490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1595812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1790105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1990201-10035-00 WASHER, PLATEWASHER, PLATE
-
20BB5-F1446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
211CT-F2825-00-00 PROTECTOR 1PROTECTOR 1
-
2290201-06078-00 WASHER, PLATEWASHER, PLATE
-
2395812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
24BB5-F8100-00-00 TOOL KITTOOL KIT
-
251NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
2693210-92448-00 O-RINGO-RING
-
2793210-64297-00 O-RINGO-RING
-
281D9-F8488-01-00 HOOKHOOK
-
2995812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
305ND-F147A-02-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
3190109-06043-00 BOLTBOLT
-
321CT-F840K-00-00 GUARD COMP.GUARD COMP.
-
3390109-06043-00 BOLTBOLT
-
3490109-06202-00 BOLTBOLT
