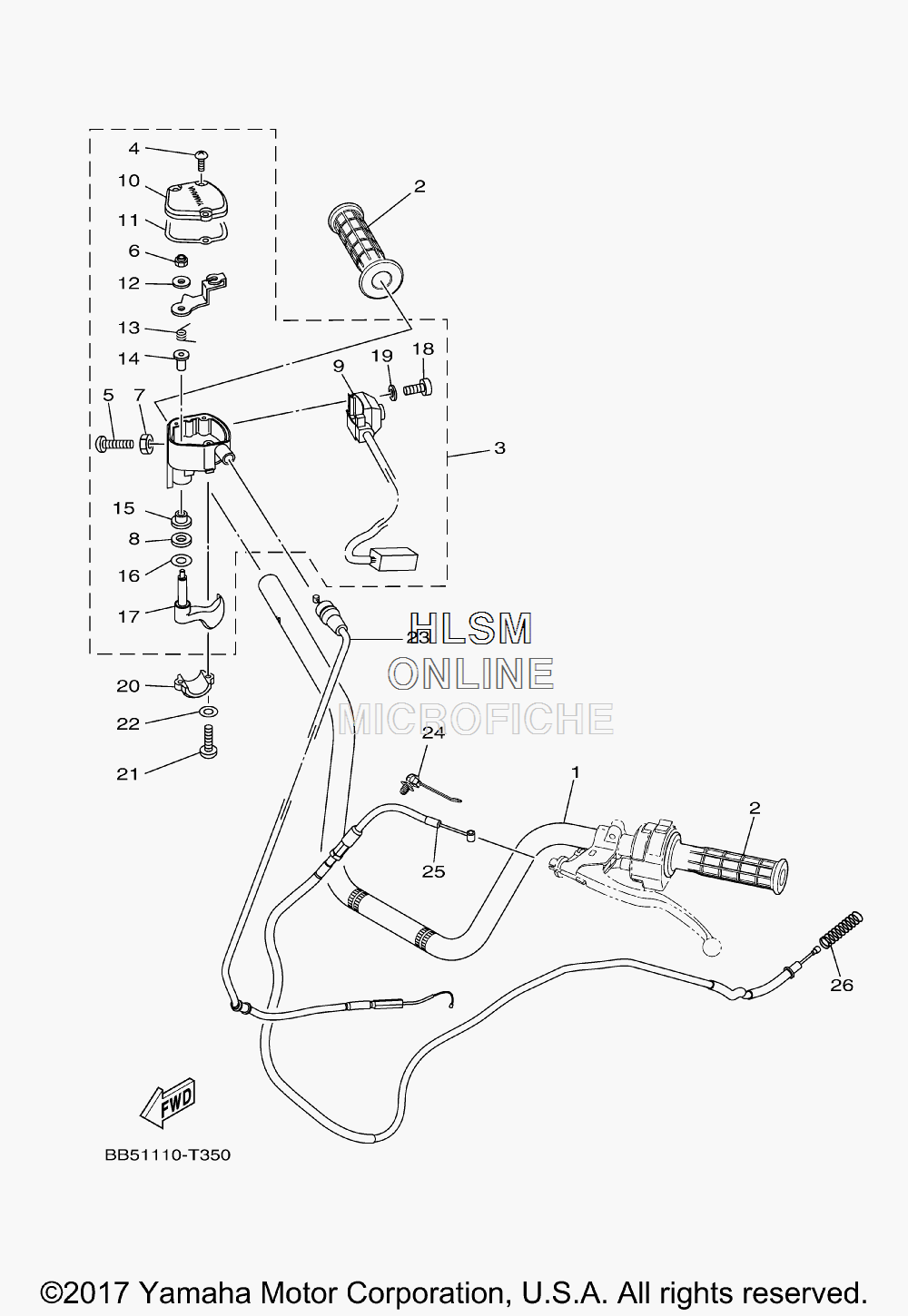

HANDLEBAR W/ CABLES для Yamaha KODIAK 450 EPS (DEEP GREEN) - 2018 года выпуска
-
№АртикулНазвание
-
1BB5-F6111-01-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
3BB5-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
490149-04278-00 ...SCREW...SCREW
-
598507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
695602-05100-00 ...NUT, U...NUT, U
-
795307-05700-00 ...NUT...NUT
-
893104-09025-00 ...OIL SEAL...OIL SEAL
-
91P1-83976-00-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
104KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
114KB-2628G-00-00 ...GASKET...GASKET
-
121NV-26398-00-00 ...WASHER...WASHER
-
131NV-26304-00-00 ...SPRING...SPRING
-
141NV-26259-01-00 ...COLLAR...COLLAR
-
151NV-2625K-00-00 ...COLLAR...COLLAR
-
161NV-26129-00-00 ...WASHER...WASHER
-
17BB5-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1898502-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
201S3-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2198502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292902-05600-00 WASHER, PLATEWASHER, PLATE
-
23BB5-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
245B4-F1338-00-00 CLAMPCLAMP
-
25BB5-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
2690501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
