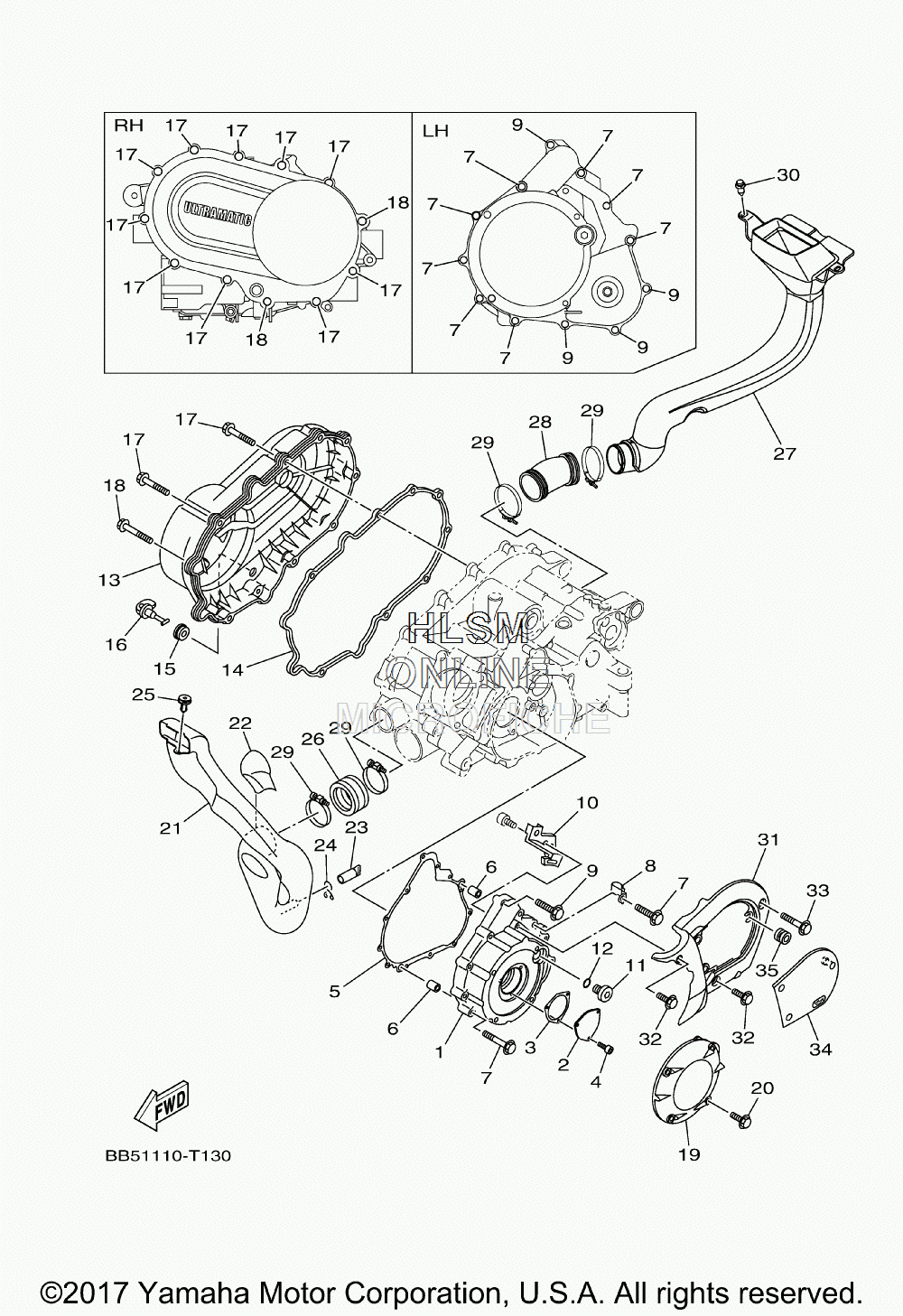

CRANKCASE COVER для Yamaha KODIAK 450 EPS HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
1BB5-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
2BB5-15191-00-00 PLATEPLATE
-
3BB5-15453-00-00 GASKETGASKET
-
490110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
55GH-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
699530-10114-00 PIN, DOWELPIN, DOWEL
-
795022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
890465-08127-00 CLAMPCLAMP
-
995022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
10BB5-15113-00-00 PLATEPLATE
-
1190340-14016-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
135ND-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
145GH-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
1590480-13018-00 GROMMETGROMMET
-
165KM-15351-00-00 PLUG, DRAINPLUG, DRAIN
-
1795822-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1895822-06045-00 BOLT, FLANGEBOLT, FLANGE
-
193C2-15492-00-00 COVERCOVER
-
2091312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
21BB5-E5471-00-00 DUCT, AIRDUCT, AIR
-
22BB5-E4271-00-00 INSULATORINSULATOR
-
235BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2490467-160A4-00 CLIPCLIP
-
2590269-07010-00 RIVETRIVET
-
265ND-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
271CT-E5473-00-00 DUCT, AIRDUCT, AIR
-
281D9-E5474-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
2990450-64002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3090269-08813-00 RIVETRIVET
-
315ND-E5423-01-00 COVER 2COVER 2
-
3295022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3395022-06035-00 BOLT, FLANGEBOLT, FLANGE
-
345ND-E5413-00-00 COVERCOVER
-
3590480-13398-00 GROMMETGROMMET
