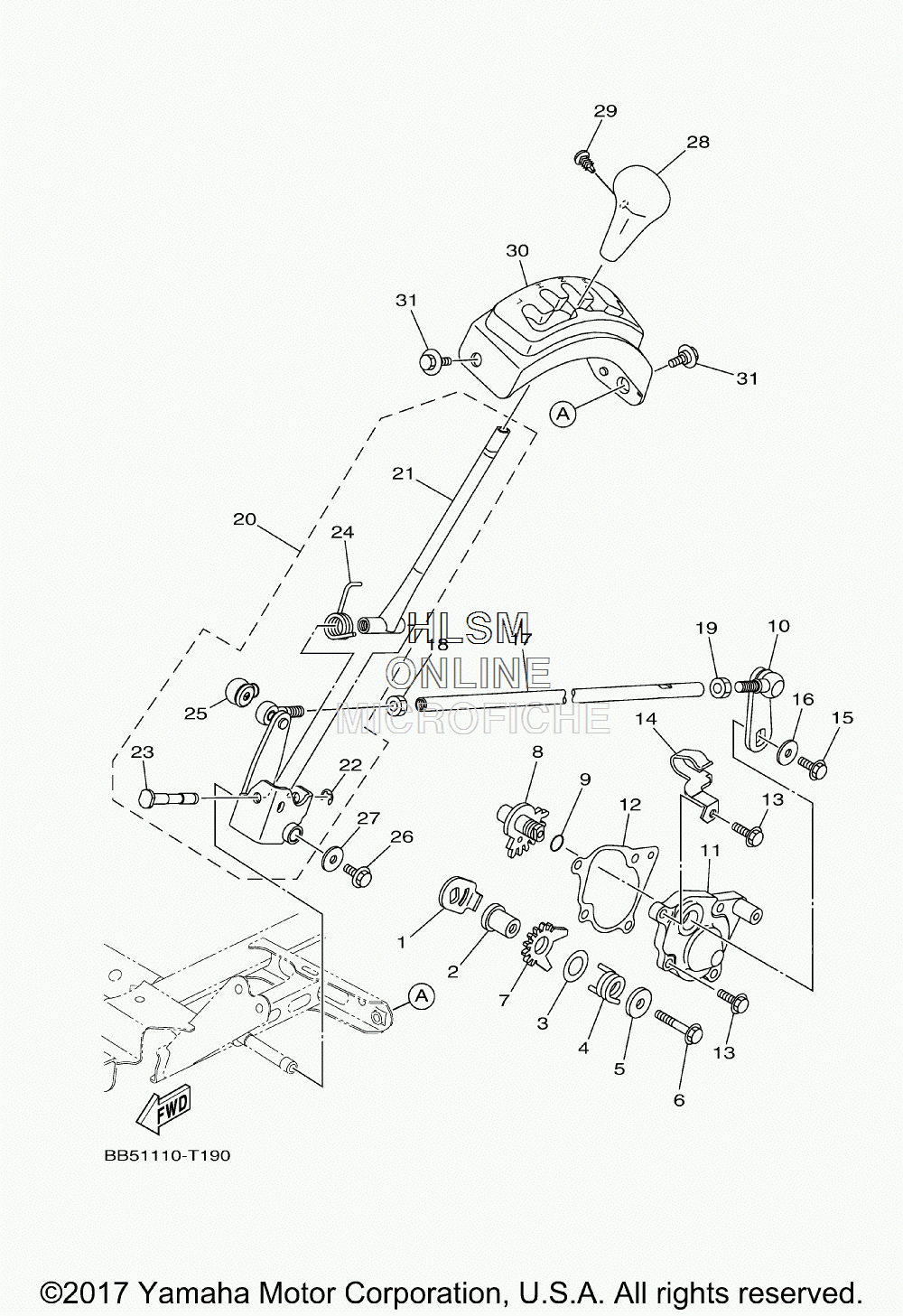

SHIFT SHAFT для Yamaha KODIAK 450 EPS HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
85GH-18197-00-00 SHAFTSHAFT
-
993210-11073-00 O-RINGO-RING
-
10BB5-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
115GH-18129-01-00 COVER, SHIFT SHAFTCOVER, SHIFT SHAFT
-
125GH-18146-00-00 GASKETGASKET
-
1397080-06020-00 BOLTBOLT
-
1490465-08336-00 CLAMPCLAMP
-
1590105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
17BB5-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-08358-00 NUTNUT
-
1995302-08700-00 NUT, HEXAGONNUT, HEXAGON
-
20BB5-E8150-01-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
211HP-E8190-01-00 ...LEVER COMP. 1...LEVER COMP. 1
-
2299002-06600-00 ...CIRCLIP...CIRCLIP
-
231HP-E8125-00-00 ...SHAFT, SHIFT...SHAFT, SHIFT
-
241HP-E8196-00-00 ...SPRING, RETURN...SPRING, RETURN
-
252H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
2695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2790201-06036-00 WASHER, PLATEWASHER, PLATE
-
2828P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2990269-05055-00 RIVETRIVET
-
30BB5-E8172-01-00 GUIDE, SHIFTGUIDE, SHIFT
-
3190109-06043-00 BOLTBOLT
