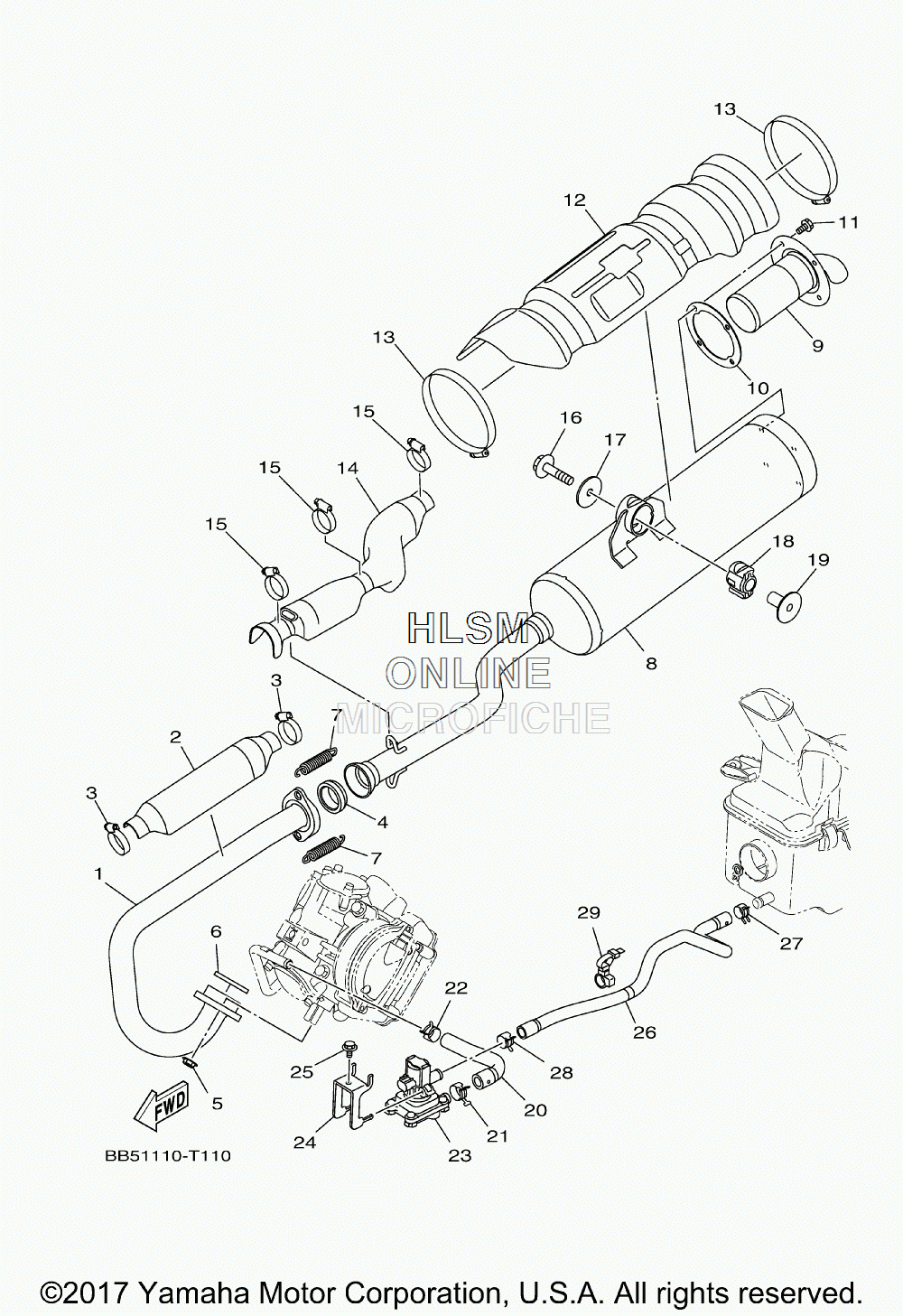

EXHAUST для Yamaha KODIAK 450 HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
1BB5-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
2BB5-E4628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
390450-38003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4BB5-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
595702-08500-00 NUT, FLANGENUT, FLANGE
-
63GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790506-26012-00 SPRING, TENSIONSPRING, TENSION
-
8BB5-E4711-00-00 MUFFLER 1MUFFLER 1
-
92BG-E4780-00-00 SPARK ARRESTER ASSYSPARK ARRESTER ASSY
-
102BG-E4755-00-00 GASKET, SILENCERGASKET, SILENCER
-
1195022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
12BB5-E4718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1390450-99805-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
14BB5-E4728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
1590450-38003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1695812-10050-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-10149-00 WASHER, PLATEWASHER, PLATE
-
18BB5-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1990387-10113-00 COLLARCOLLAR
-
20BB5-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
2190467-20085-00 CLIPCLIP
-
2290467-18179-00 CLIPCLIP
-
235VK-14803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
242MB-F1159-00-00 BRACKETBRACKET
-
2595812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
26BB5-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2790467-16009-00 CLIPCLIP
-
2890467-17089-00 CLIPCLIP
-
2990464-25006-00 CLAMPCLAMP
