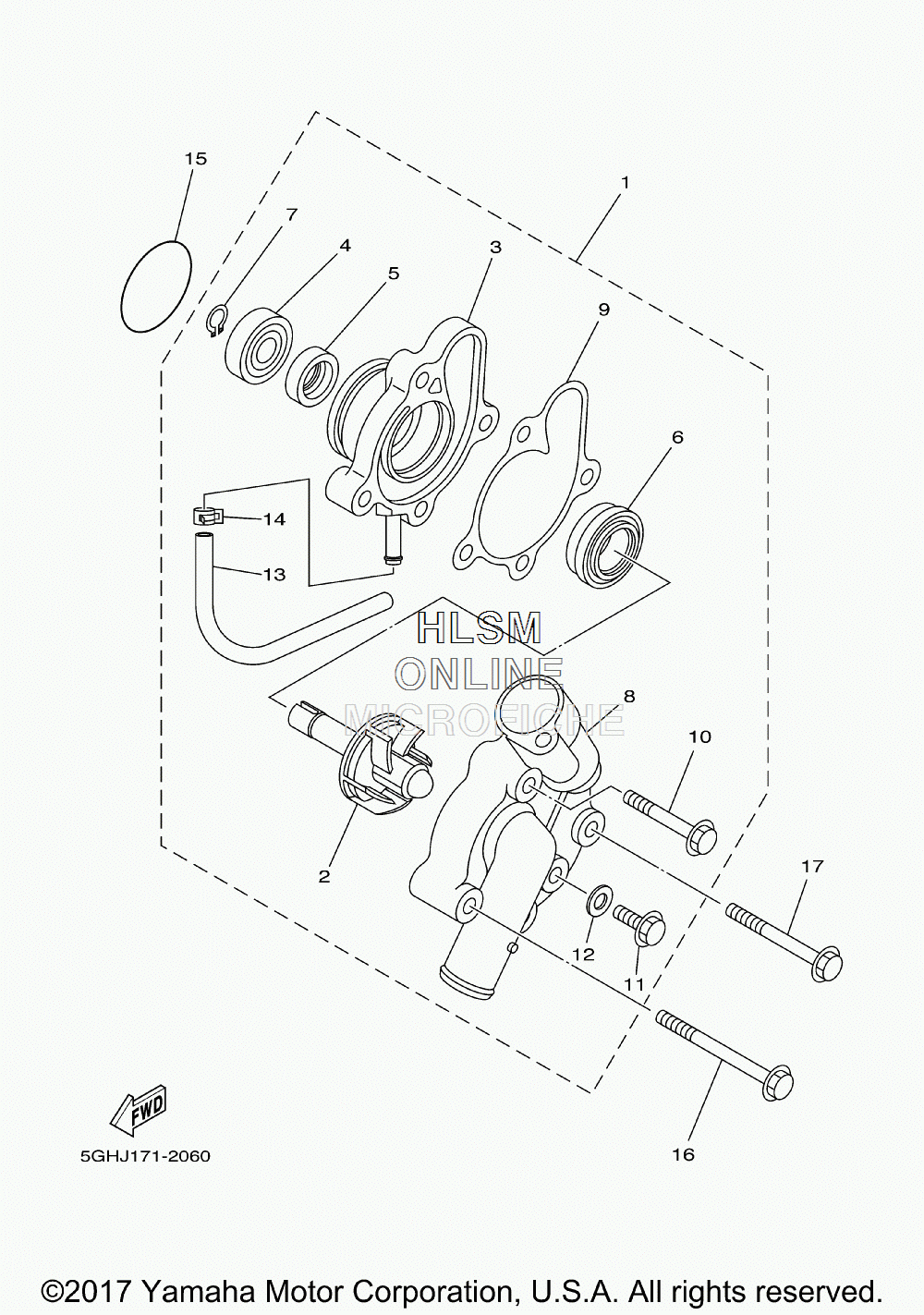

WATER PUMP ASSY для Yamaha KODIAK 450 HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
15GH-12420-01-00 WATER PUMP ASSYWATER PUMP ASSY
-
25CG-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
35GH-12421-01-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
493306-00006-00 ...BEARING...BEARING
-
593101-10090-00 ...OIL SEAL...OIL SEAL
-
611H-12438-10-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
799009-10400-00 ...CIRCLIP...CIRCLIP
-
85GH-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
95GH-12428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
1090105-06086-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1195022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1290430-06014-00 ...GASKET...GASKET
-
1390446-06001-00 ...HOSE (L300)...HOSE (L300)
-
1490467-06194-00 ...CLIP...CLIP
-
1593210-33133-00 O-RINGO-RING
-
1695022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-06050-00 BOLT, FLANGEBOLT, FLANGE
