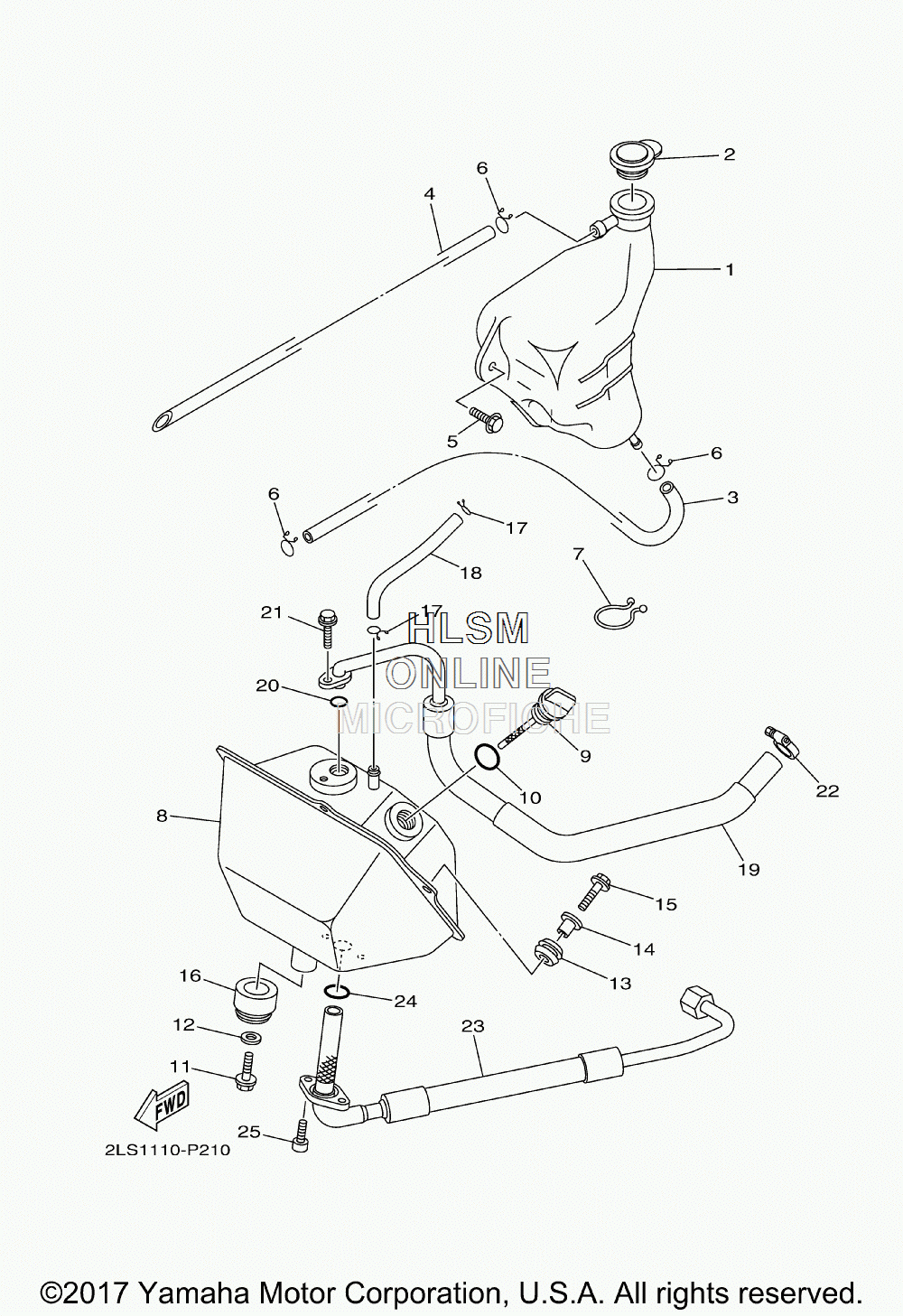

OIL TANK для Yamaha RAPTOR 700R SE - 2018 года выпуска
-
№АртикулНазвание
-
11PE-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
21S3-21875-00-00 CAPCAP
-
390445-09M30-00 HOSE (L630)HOSE (L630)
-
490445-09777-00 HOSE (L300)HOSE (L300)
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690467-08003-00 CLIPCLIP
-
790464-23041-00 CLAMPCLAMP
-
81S3-21750-10-00 OIL TANK ASSYOIL TANK ASSY
-
95LP-21761-01-00 GAUGE, LEVELGAUGE, LEVEL
-
1093210-21190-00 O-RINGO-RING
-
1195812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-082A6-00 WASHER, PLATEWASHER, PLATE
-
1390480-13459-00 GROMMETGROMMET
-
1490387-06205-00 COLLARCOLLAR
-
1595812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1690480-24004-00 GROMMETGROMMET
-
1790467-100A1-00 CLIPCLIP
-
1890445-11034-00 HOSE (L147)HOSE (L147)
-
192LS-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
2093210-10197-00 O-RINGO-RING
-
2195022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2290450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
231S3-13464-10-00 HOSE, OIL 1HOSE, OIL 1
-
2493210-16629-00 O-RINGO-RING
-
2591312-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
