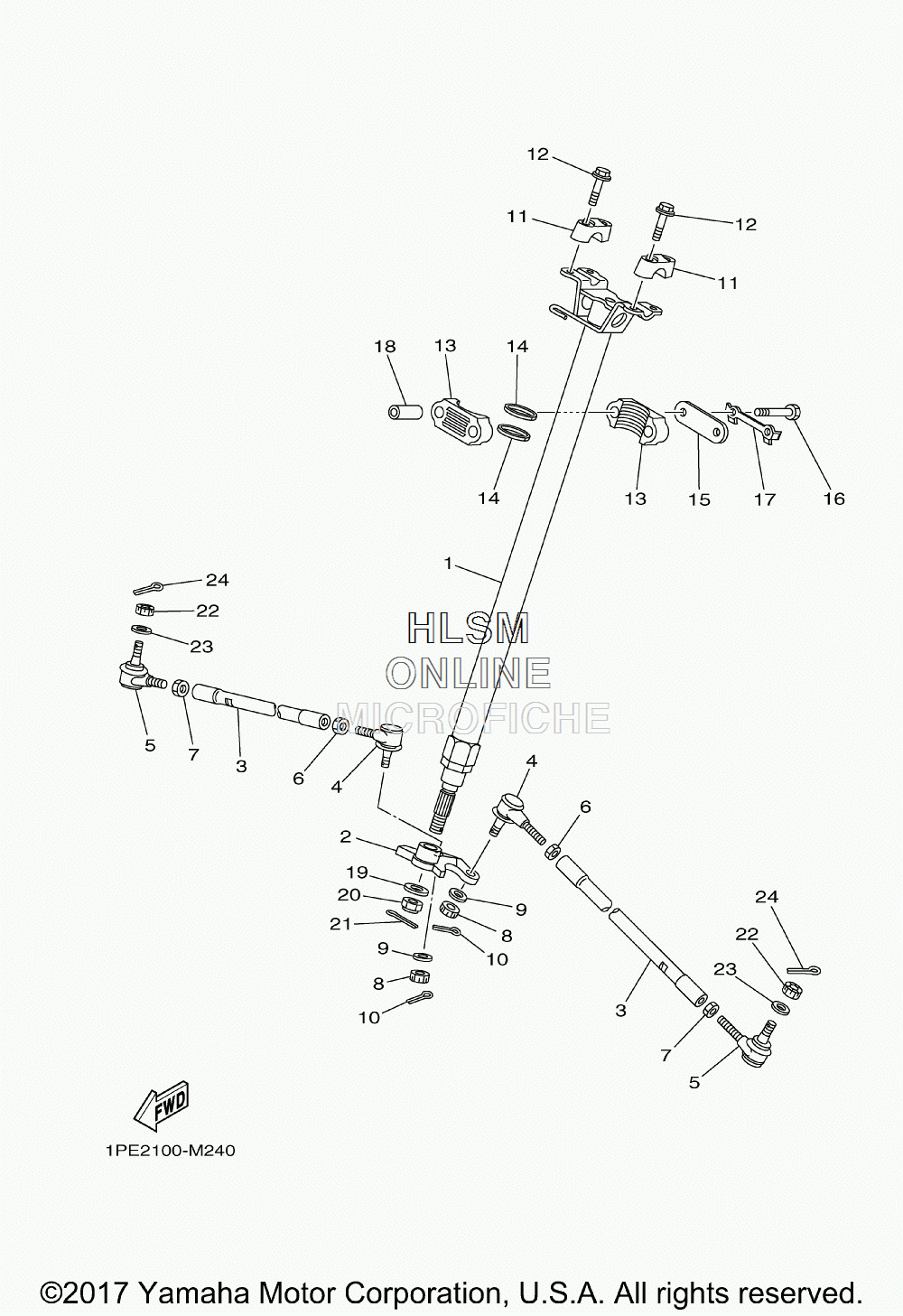

STEERING для Yamaha RAPTOR 700R SE - 2018 года выпуска
-
№АртикулНазвание
-
11PE-F3813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
21PE-F3816-00-00 ARM, PITMANARM, PITMAN
-
31PD-23831-00-00 ROD, TIEROD, TIE
-
41S3-23841-20-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
51S3-23845-20-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
690170-12055-00 NUTNUT
-
790170-12054-00 NUT (RIGHT HAND THREAD)NUT (RIGHT HAND THREAD)
-
890171-10001-00 NUT, CASTLENUT, CASTLE
-
990209-10229-00 WASHERWASHER
-
1091402-20020-00 PIN, COTTERPIN, COTTER
-
118K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
1295822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1337S-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
1493112-31800-00 OIL SEALOIL SEAL
-
151PE-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
1697022-08060-00 BOLT, HEXAGONBOLT, HEXAGON
-
171UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1890387-090R0-00 COLLARCOLLAR
-
1990201-14021-00 WASHER, PLATEWASHER, PLATE
-
2090185-14009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2191402-20025-00 PIN, COTTERPIN, COTTER
-
2290171-10001-00 NUT, CASTLENUT, CASTLE
-
2390209-10229-00 WASHERWASHER
-
2491402-20020-00 PIN, COTTERPIN, COTTER
